67 65 511 Removing and installing or replacing drive for sun roller blind: Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Only tighten screws loosely.

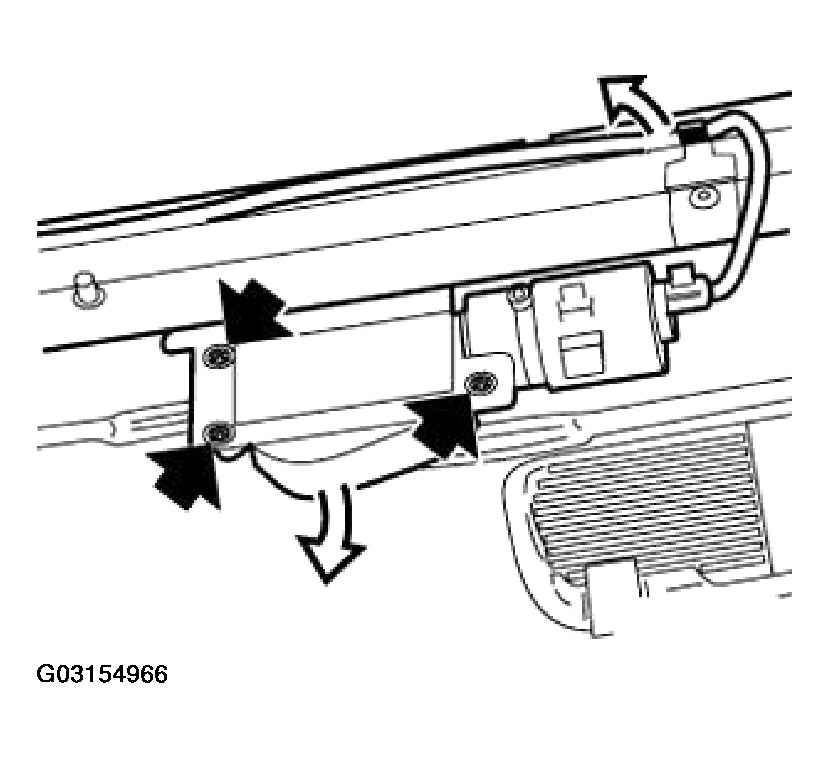

Fig 1: Identifying Lever Out Drive Unit
G03154966Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw and remove drive disc with linkage.

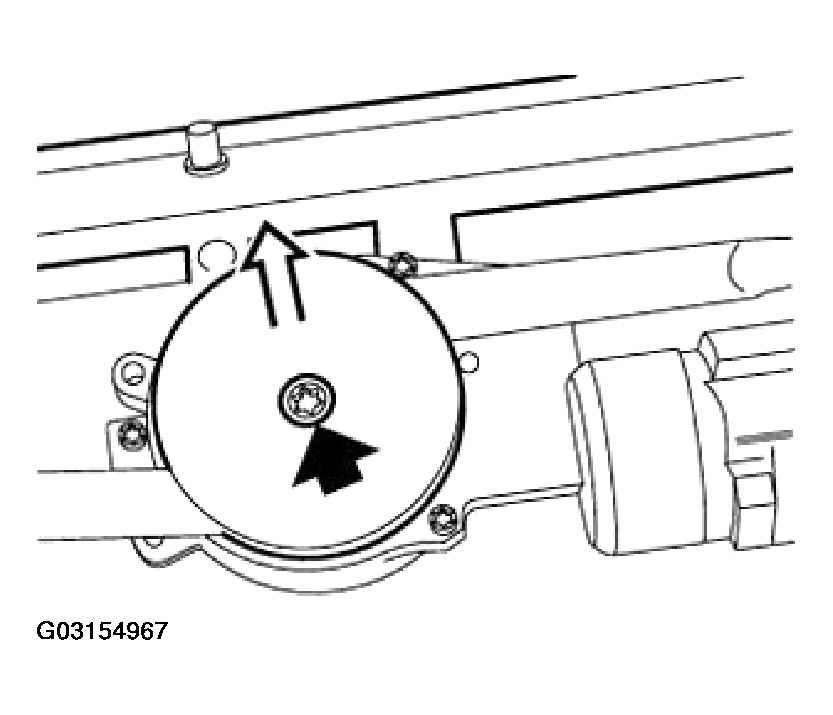

Fig 2: Removing Drive Disc With Linkage
G03154967Courtesy of BMW OF NORTH AMERICA, INC.

Position drive disk with linkage on new flat motor. The drive disk only fits onto the shaft in one position. The star in the drive disk is flattened on one side. If the drive disk has a hexagon guide, this guide must also be replaced.

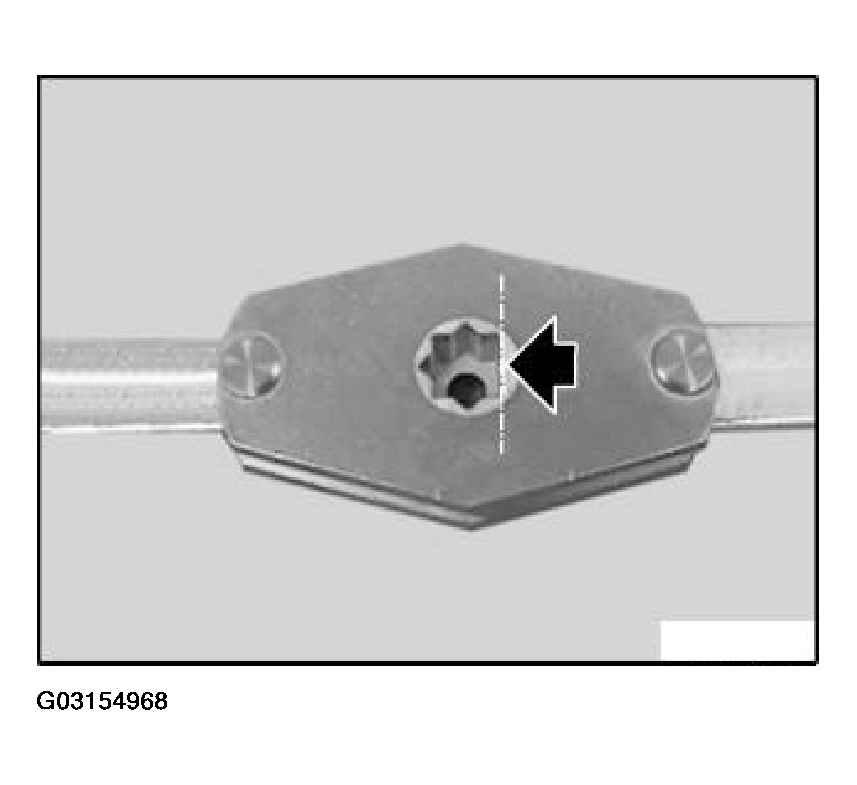

Fig 3: Identifying Position Drive Disk With Linkage On New Flat Motor
G03154968Courtesy of BMW OF NORTH AMERICA, INC.

Pull out roller sun blind until the linkage on the left and right can be suspended. Reinstall retaining clips.

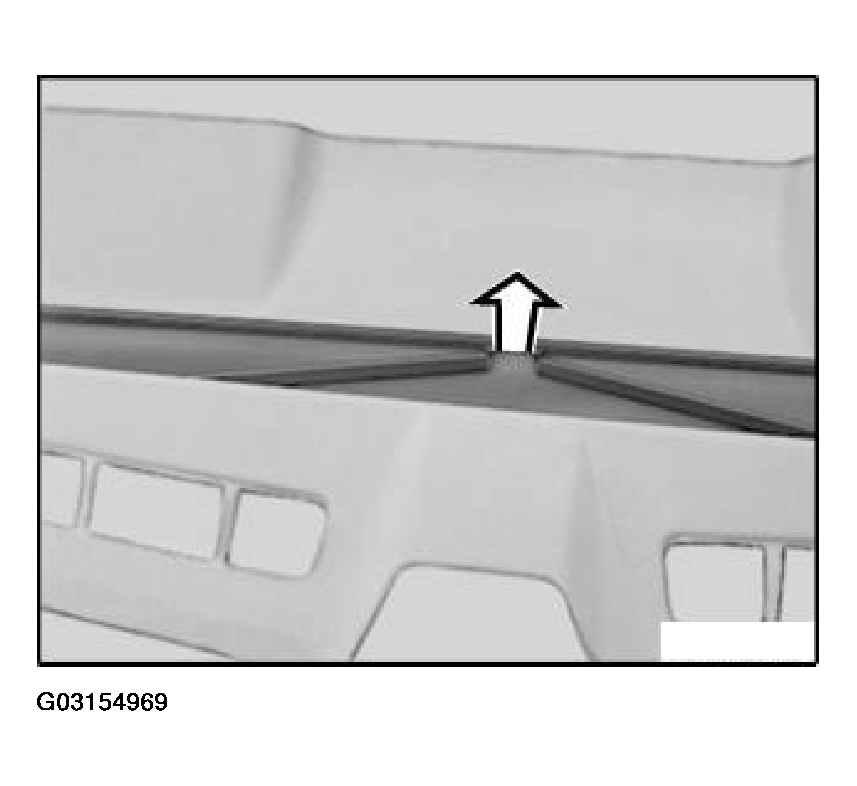

Fig 4: Pulling Out Roller Sun Blind Until Linkage On Left
G03154969Courtesy of BMW OF NORTH AMERICA, INC.

Supply the flat motor with voltage and allow the roller sun blind to extend and retract once completely. The extend the roller sun blind again until the linkage has a clearance of approx. 10 to 15 cm.

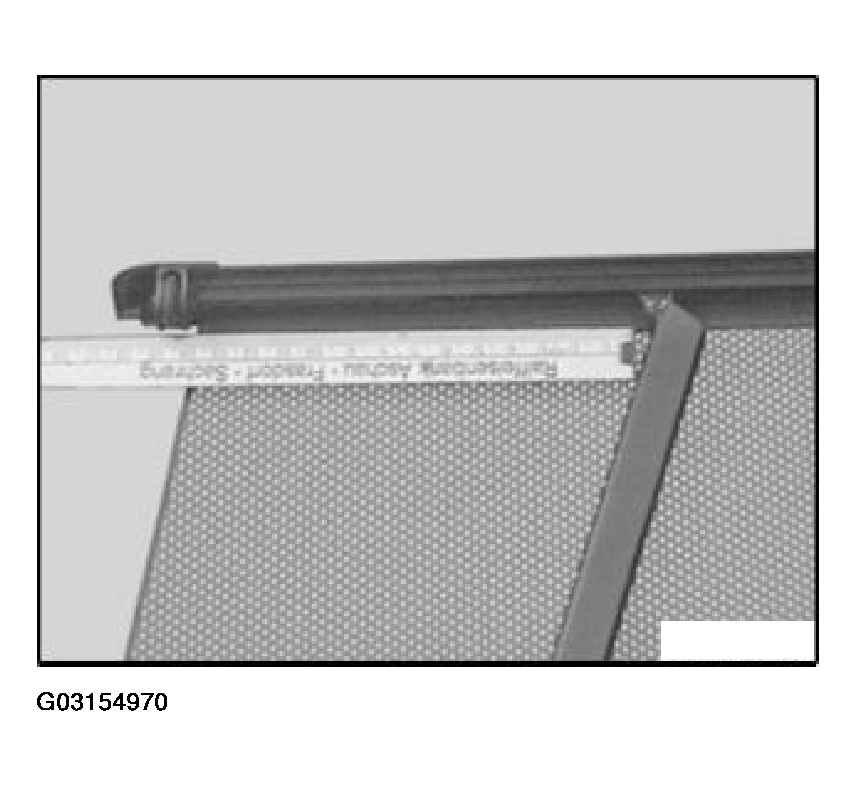

Fig 5: Identifying Roller Sun Blind
G03154970Courtesy of BMW OF NORTH AMERICA, INC.

The clearance on the left and right must be roughly the same. If this is not the case, adjust the flat motor in its longitudinal direction and then secure.

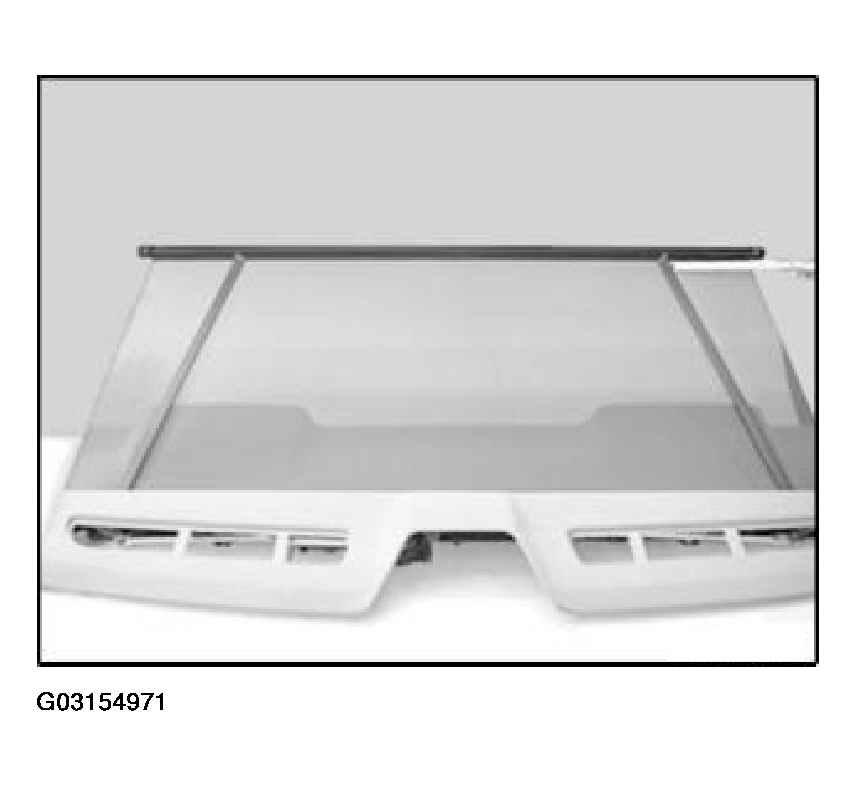

Fig 6: Adjusting Flat Motor In Its Longitudinal Direction
G03154971Courtesy of BMW OF NORTH AMERICA, INC.

Model with hexagon guide in the drive disk:

bore out rivets in drive disk and remove both linkage assemblies.

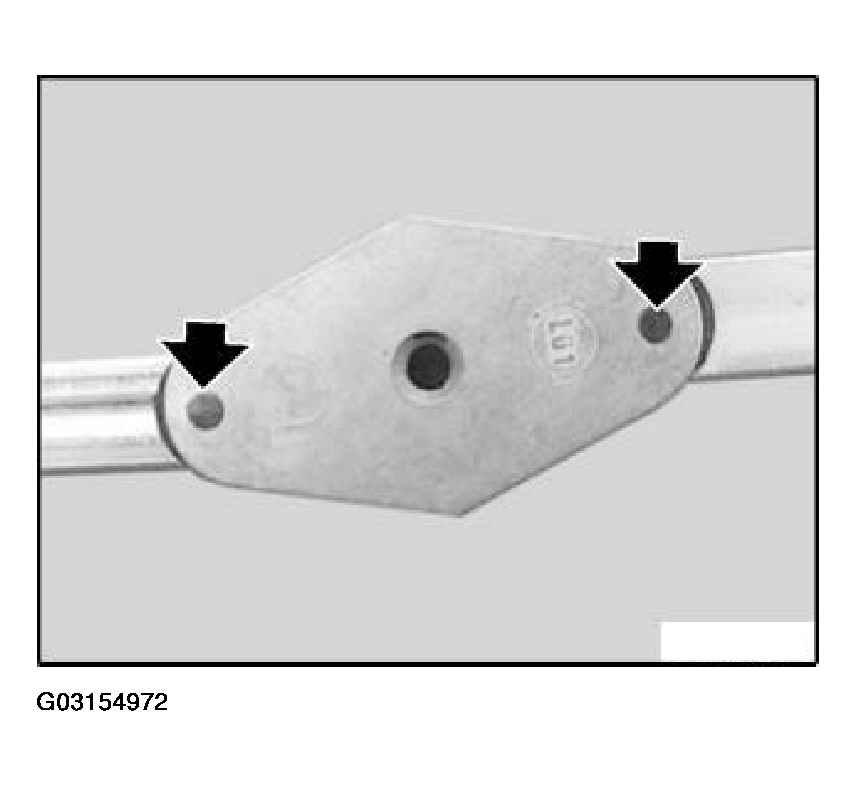

Fig 7: Removing Both Linkage Assemblies
G03154972Courtesy of BMW OF NORTH AMERICA, INC.

Install linkage on new drive disk with pin (1) and retaining rings (2)

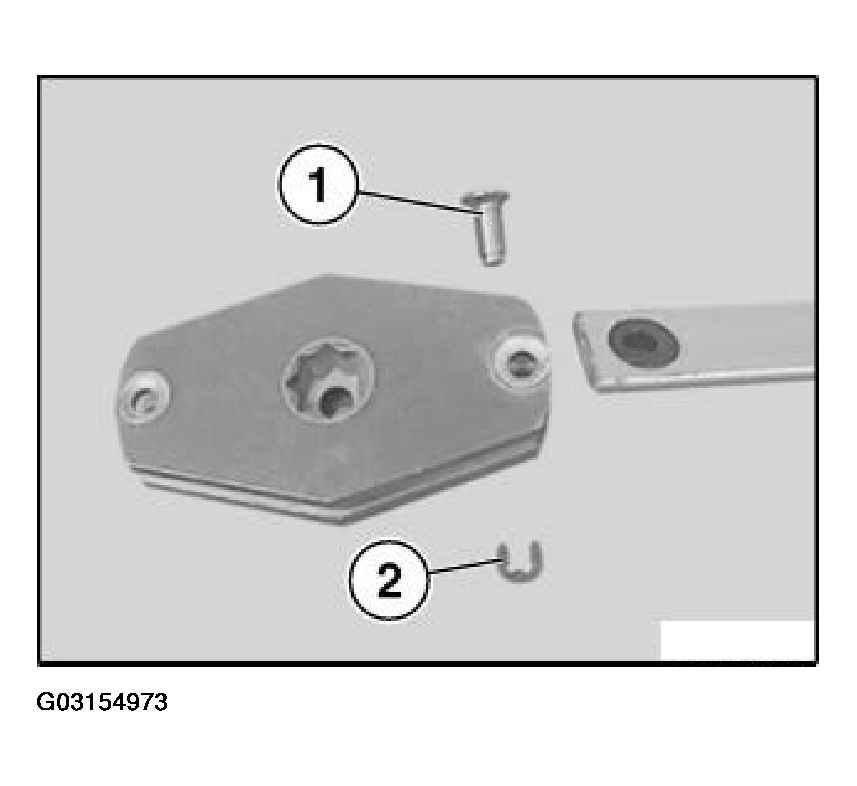

Fig 8: Installing Linkage On New Drive Disk With Pin
G03154973Courtesy of BMW OF NORTH AMERICA, INC.
