67 31 541 Removing and installing/replacing drive unit for head restraint adjustment (comfort seat, backrest completely removed)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest cover with padding. See 52 17 405 REPLACING BACK-REST COVER FOR FRONT SEAT .

Unlock plug (1) and remove.

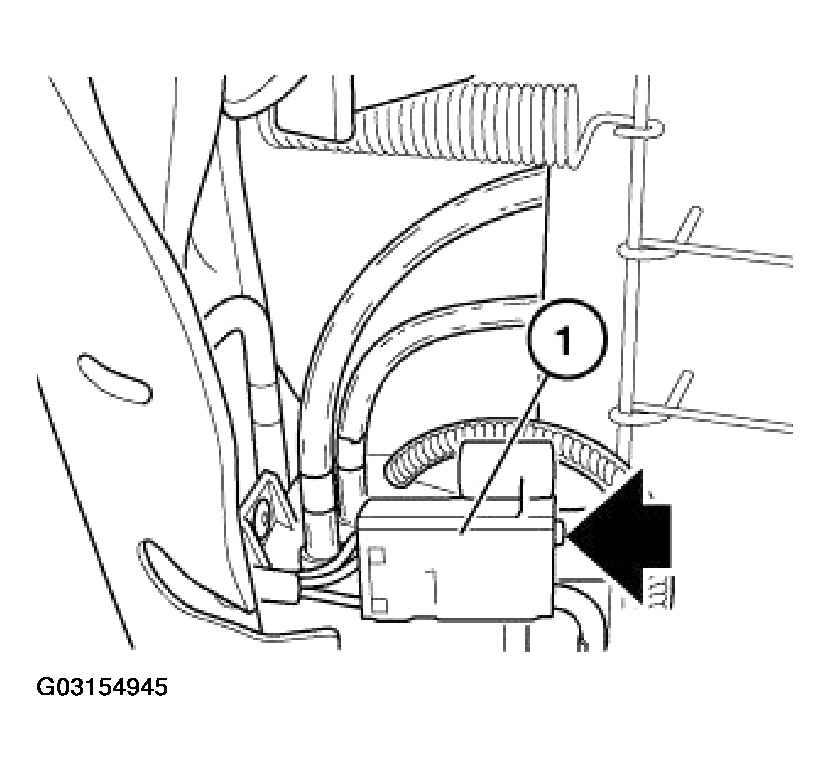

Fig 1: Removing Plug
G03154945Courtesy of BMW OF NORTH AMERICA, INC.

Pull backrest adjustment shaft (1) out of backrest adjustment gearing (2) and drive unit for head restraint adjustment (3).

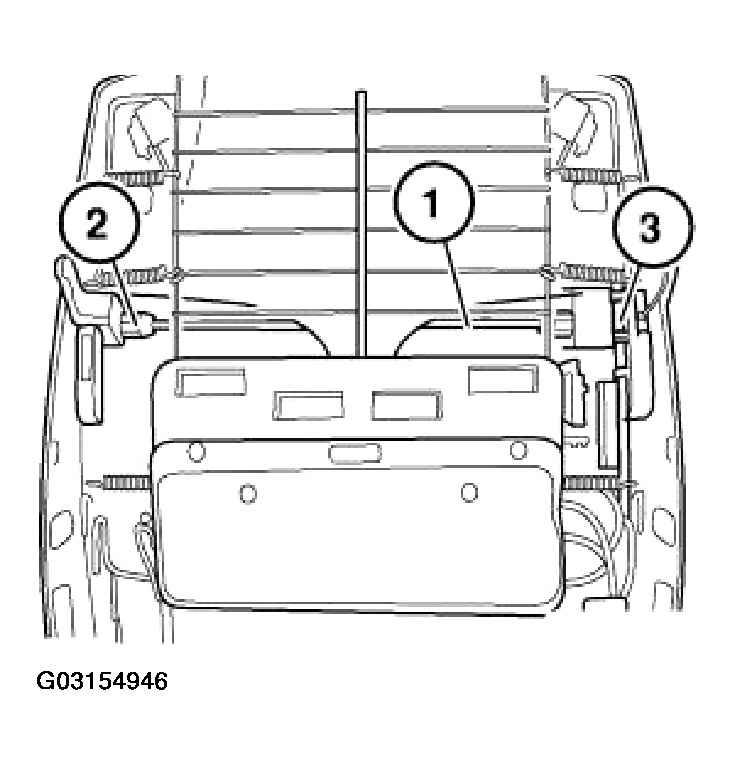

Fig 2: Pulling Backrest Adjustment Shaft Out Of Backrest Adjustment Gearing
G03154946Courtesy of BMW OF NORTH AMERICA, INC.

Remove retainers.

Remove backrest adjustment gearing (1) and drive unit for head restraint adjustment (2).

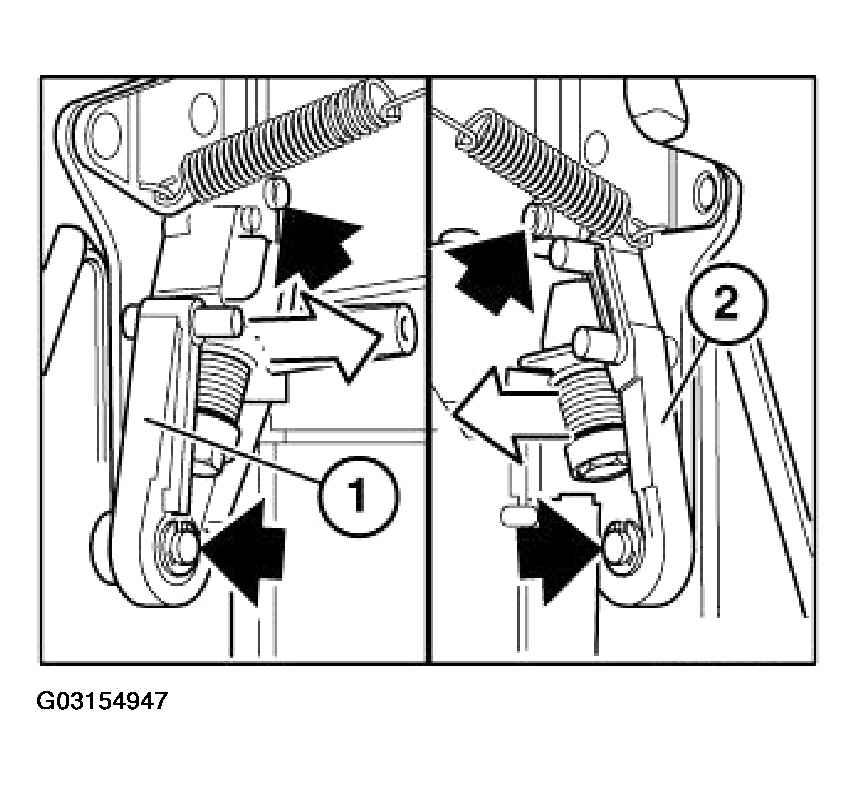

Fig 3: Removing Backrest Adjustment Gearing
G03154947Courtesy of BMW OF NORTH AMERICA, INC.

A:

Screw in output spindle (1) up to stop (2) and then screw back 1 turn.

B:

Push backrest adjustment gearing (3) onto backrest frame.

If necessary, press backrest frame down a little.

Fit retainers.

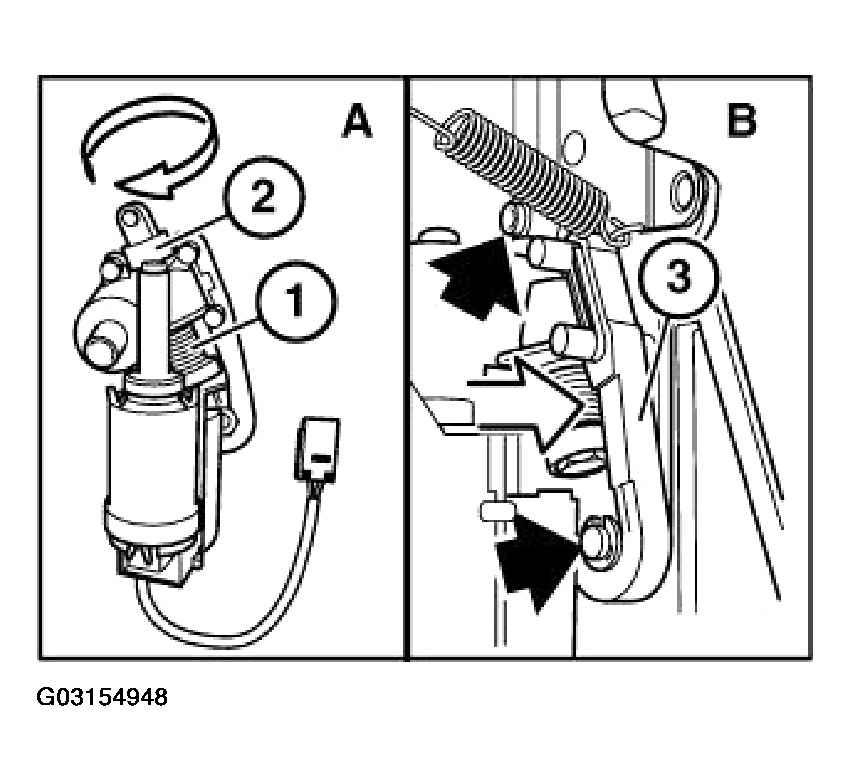

Fig 4: Pushing Backrest Adjustment Gearing Onto Backrest Frame
G03154948Courtesy of BMW OF NORTH AMERICA, INC.

Turn output spindle (1) until backrest adjustment gearing (2) can be pushed on without tension (do not press backrest frame down under any circumstances).

If necessary, readjust with backrest adjustment shaft.

Fit retainers.

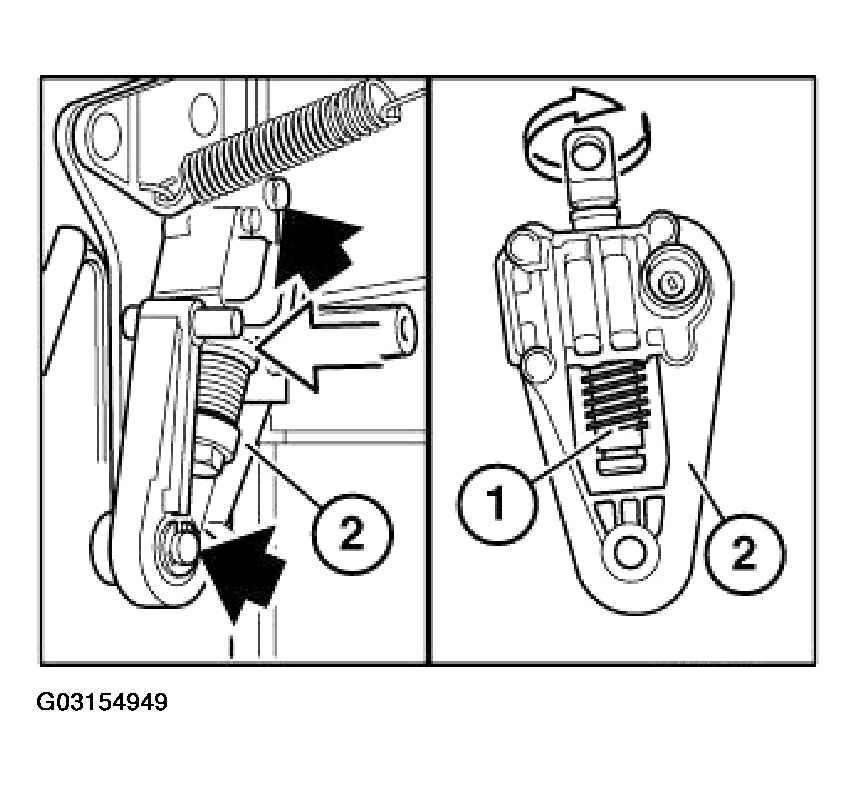

Fig 5: Turning Output Spindle
G03154949Courtesy of BMW OF NORTH AMERICA, INC.

Insert backrest adjustment shaft (1) into backrest adjustment gearing (2) (other end with square section (3) is not fitted yet).

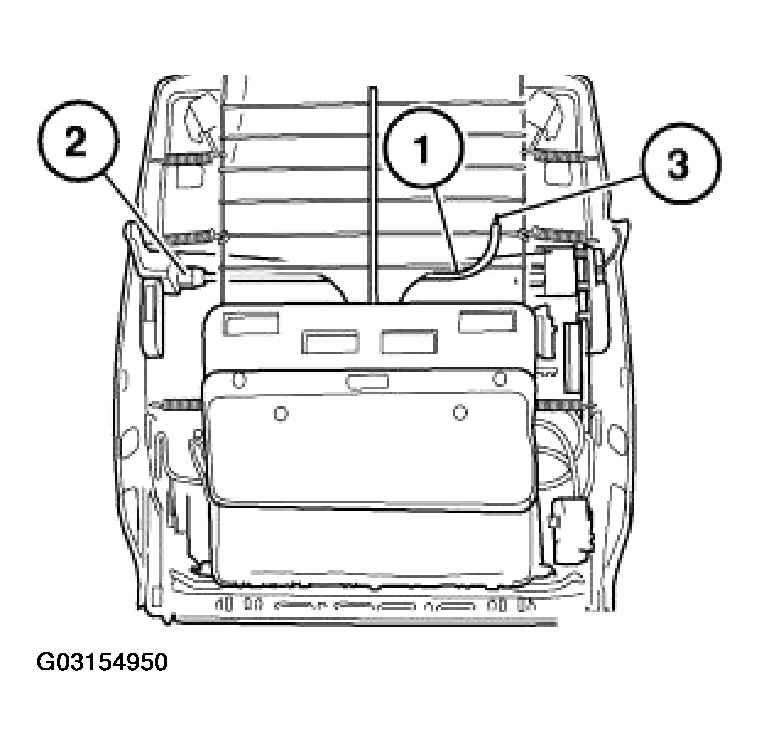

Fig 6: Inserting Backrest Adjustment Shaft
G03154950Courtesy of BMW OF NORTH AMERICA, INC.

Place backrest frame on a flat surface. Measure distance (X) on left and right.

Permitted deviation on left and right sides: max. 2 mm.

If necessary, adjust backrest adjustment gearing with square section of backrest adjustment shaft.

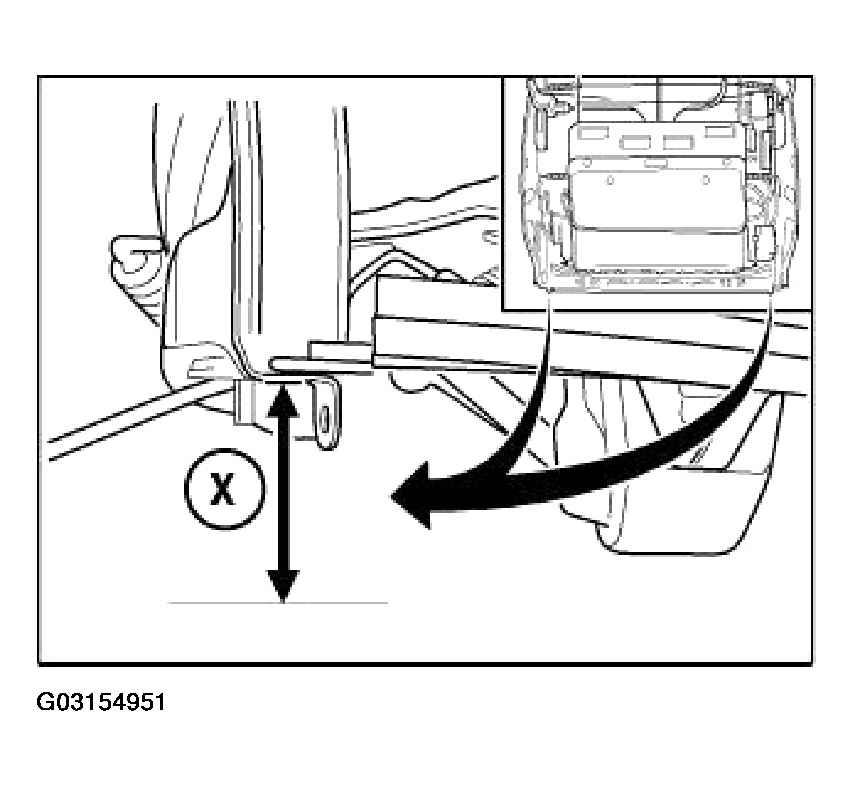

Fig 7: Identifying Backrest Frame On Flat Surface
G03154951Courtesy of BMW OF NORTH AMERICA, INC.

Insert backrest adjustment shaft (1) into drive unit for head restraint adjustment (3).

Installation:

Backrest adjustment shaft must not protrude over sheet metal fold (risk of damage).

If necessary, turn backrest adjustment shaft (1) minimally by hand until square section fits into drive unit for head restraint adjustment (3).

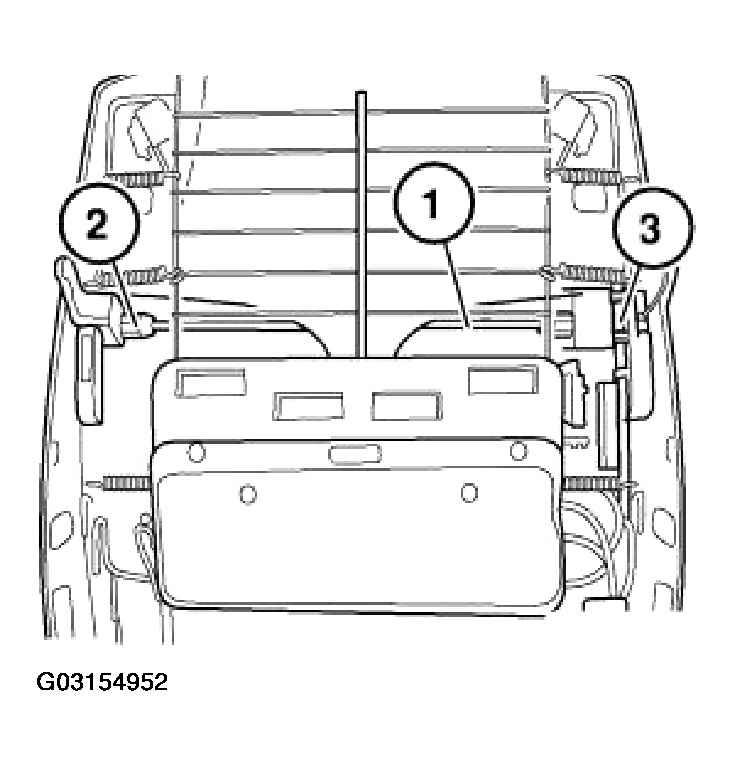

Fig 8: Inserting Backrest Adjustment Shaft Into Drive Unit For Head Restraint Adjustment
G03154952Courtesy of BMW OF NORTH AMERICA, INC.
