65 12 070 Removing and installing/replacing amplifier (HiFi system)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove video module, refer to 65 50 510 REMOVING AND INSTALLING/REPLACING VIDEO MODULE FOR ON-BOARD MONITOR (SALOON) .

If necessary, remove bracket for video module. To do this, unfasten screws (1) and remove bracket.

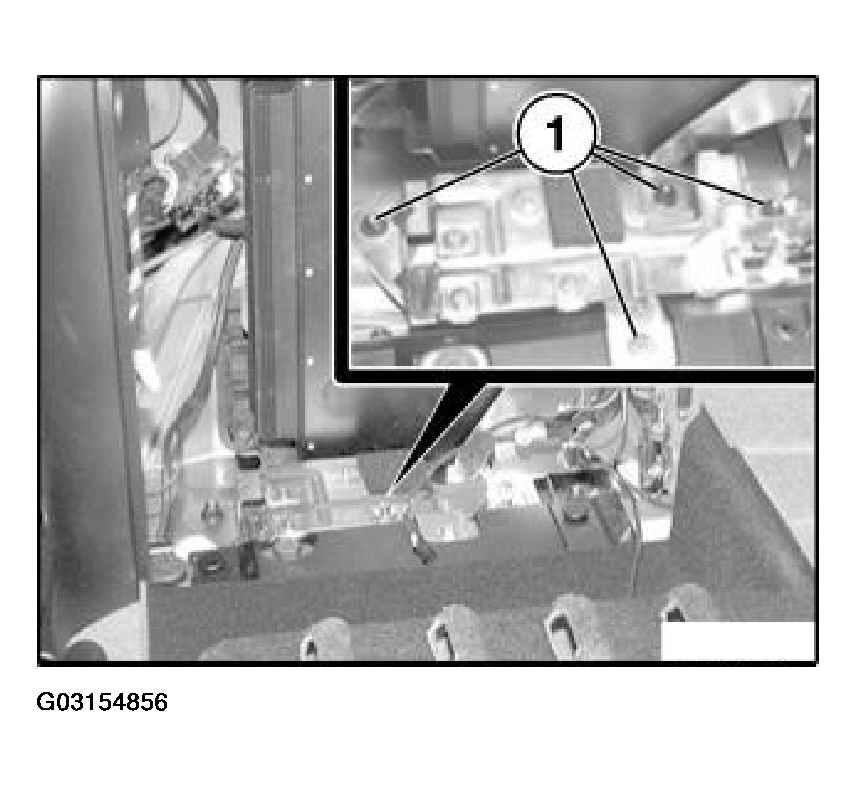

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

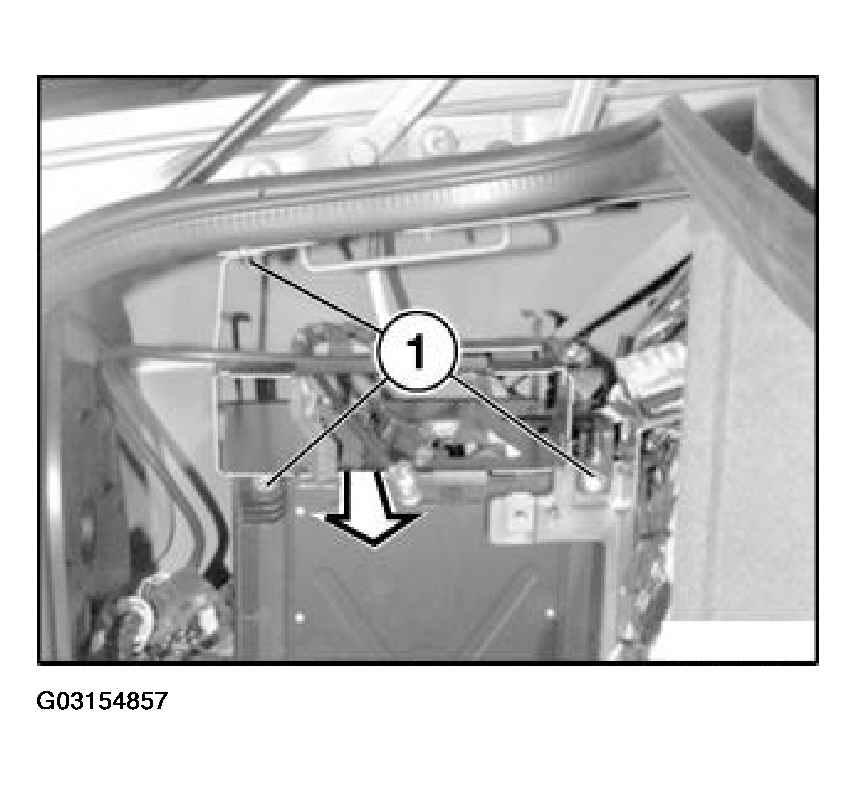

If necessary, remove bracket for navigation computer. To do this, unfasten screws (1) and remove bracket.

Fig 2: Removing Screws And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector, unfasten screws and remove amplifier.

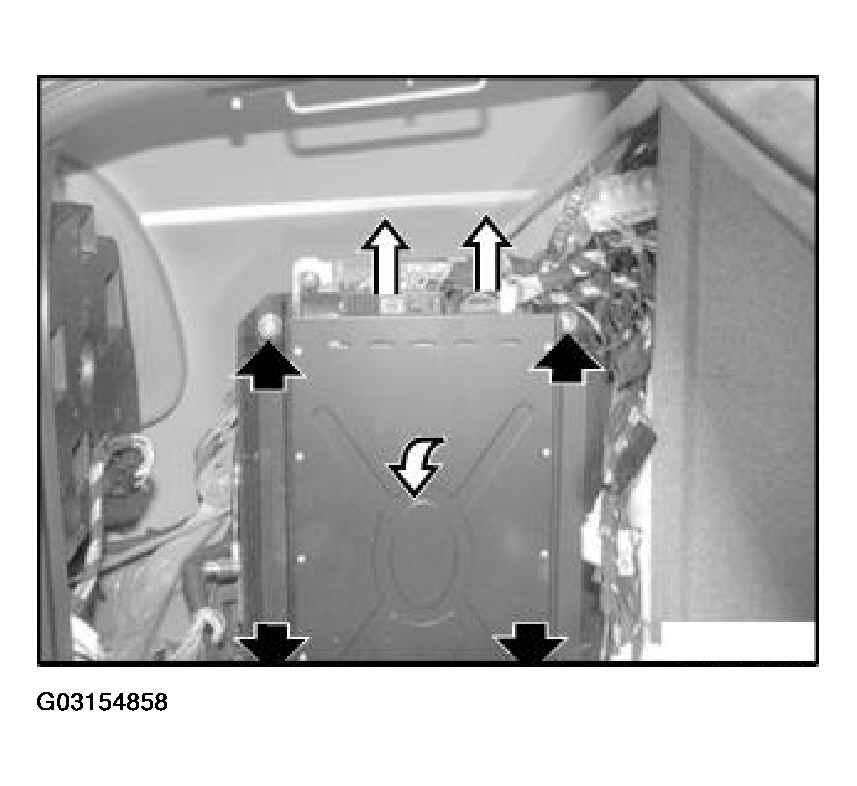

Fig 3: Removing Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cars from 3/98:

Using BMW scan tool, amplifier must be recoded after being replaced.

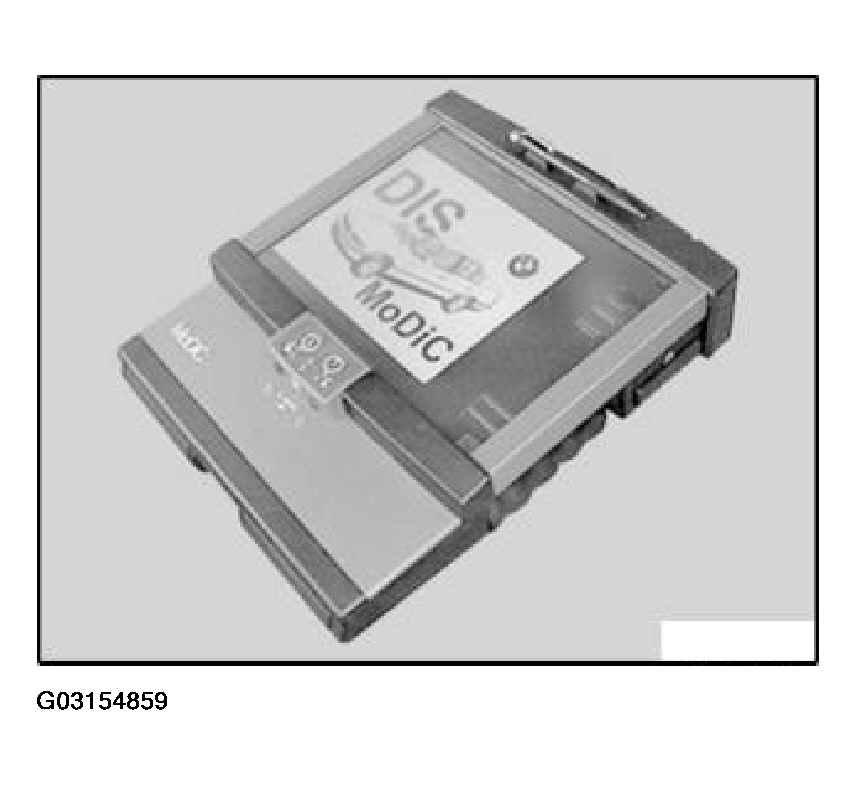

Fig 4: Identifying Diagnosis And Information System (DIS)

Courtesy of BMW OF NORTH AMERICA, INC.
