65 13 071 Removing and installing or replacing loudspeakers (rear shelf): Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip loudspeaker frame and check position of foam rubber. Foam rubber must not be shifted towards speaker diaphragm.

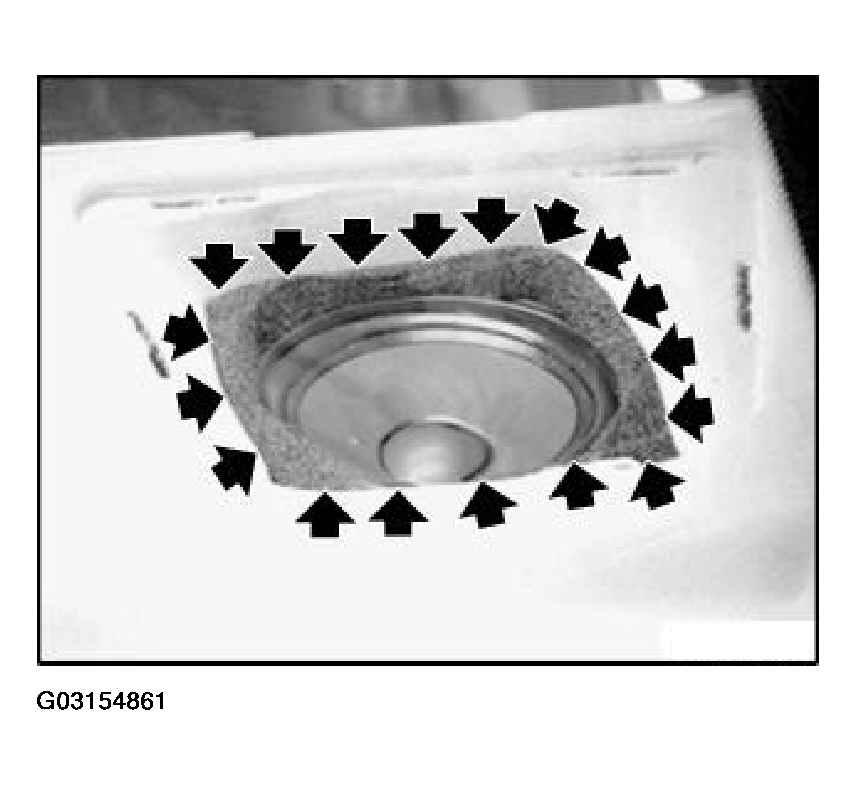

Fig 1: Checking Position Of Foam Rubber

Courtesy of BMW OF NORTH AMERICA, INC.
