65 81 010 Removing and installing/replacing multi-information display (MID or IRIS)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Two different types of controls are fitted, depending on vehicle equipment.

  1. The multi-information display is used if any other controllable items of special equipment are fitted, e.g. BC
  2. The integrated radio and information system contains all control and display elements for radio and clock functions.

IRIS

Remove volume control button.

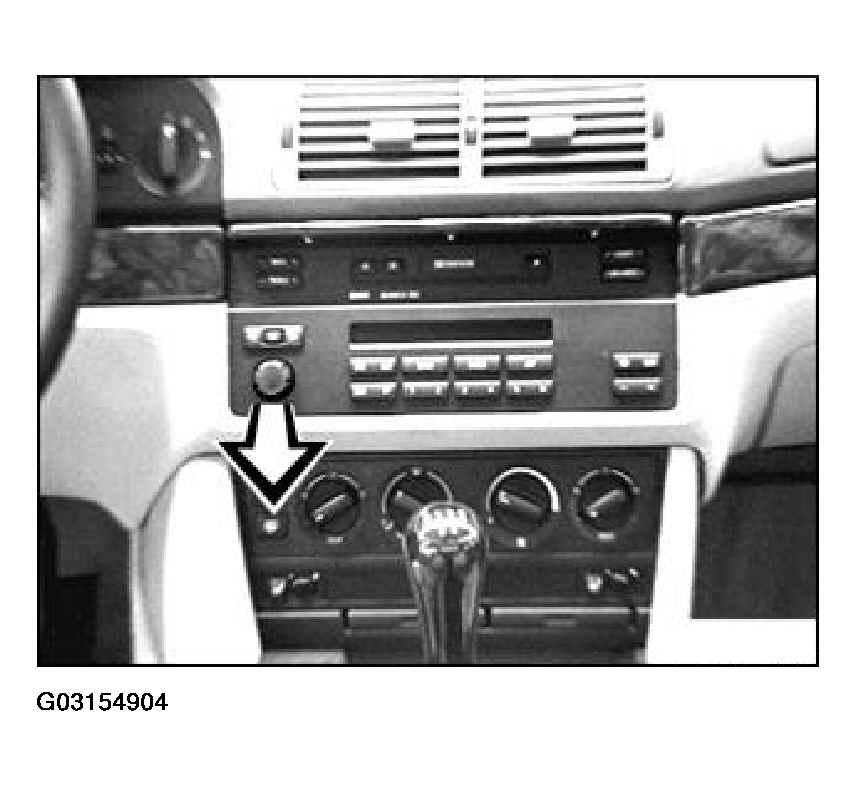

Fig 1: Removing Volume Control Button (IRIS)
G03154904Courtesy of BMW OF NORTH AMERICA, INC.

Press detent to one side and fold out IRIS.

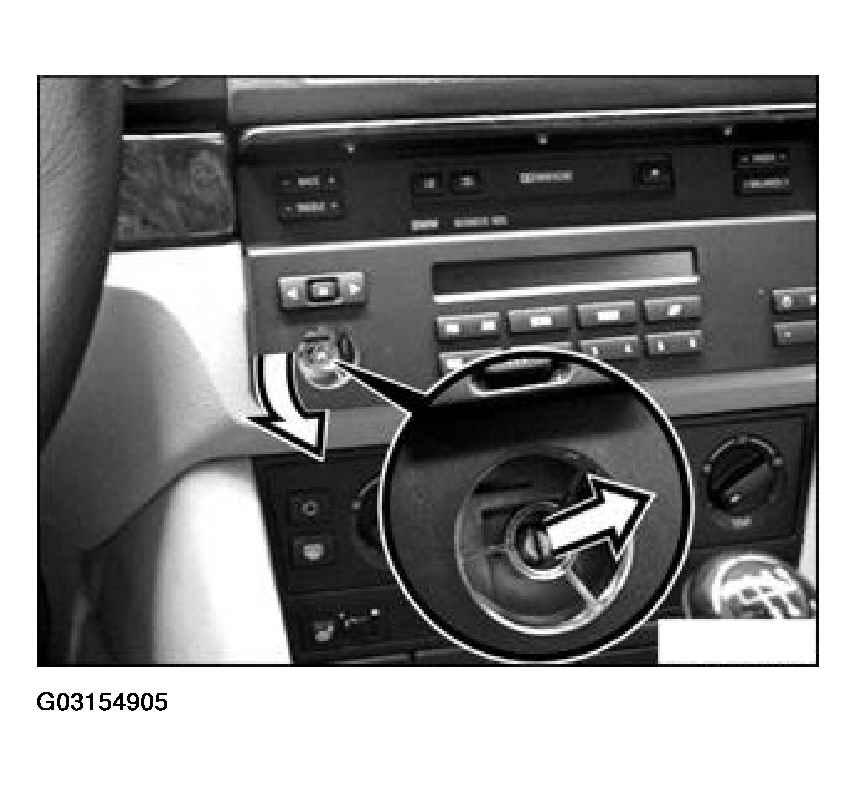

Fig 2: Pressing Detent
G03154905Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector

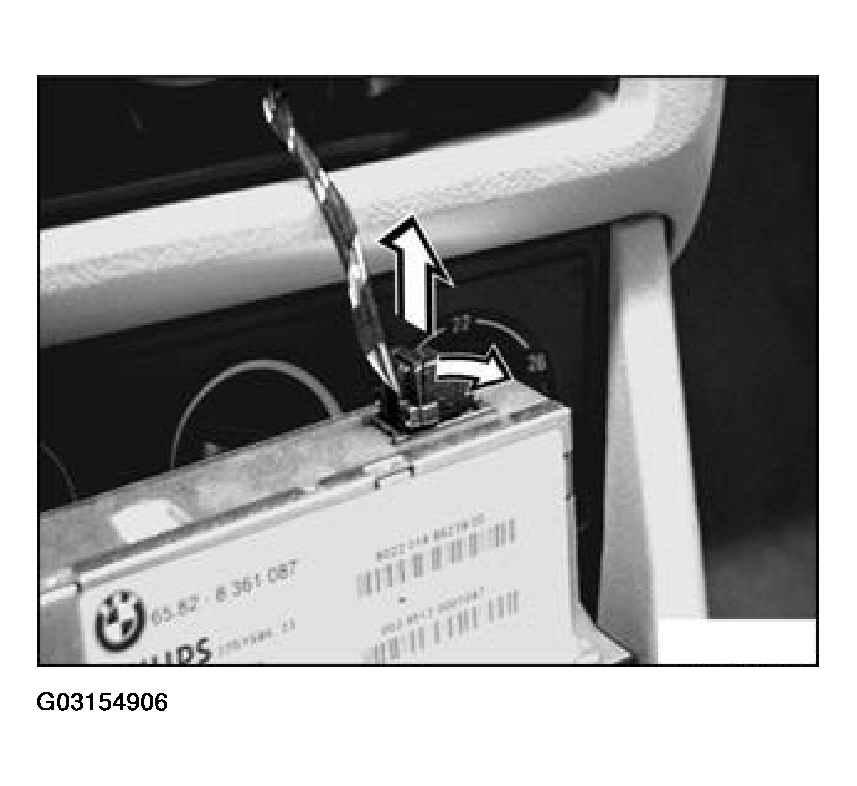

Fig 3: Removing Connector
G03154906Courtesy of BMW OF NORTH AMERICA, INC.

MID

Remove volume control button.

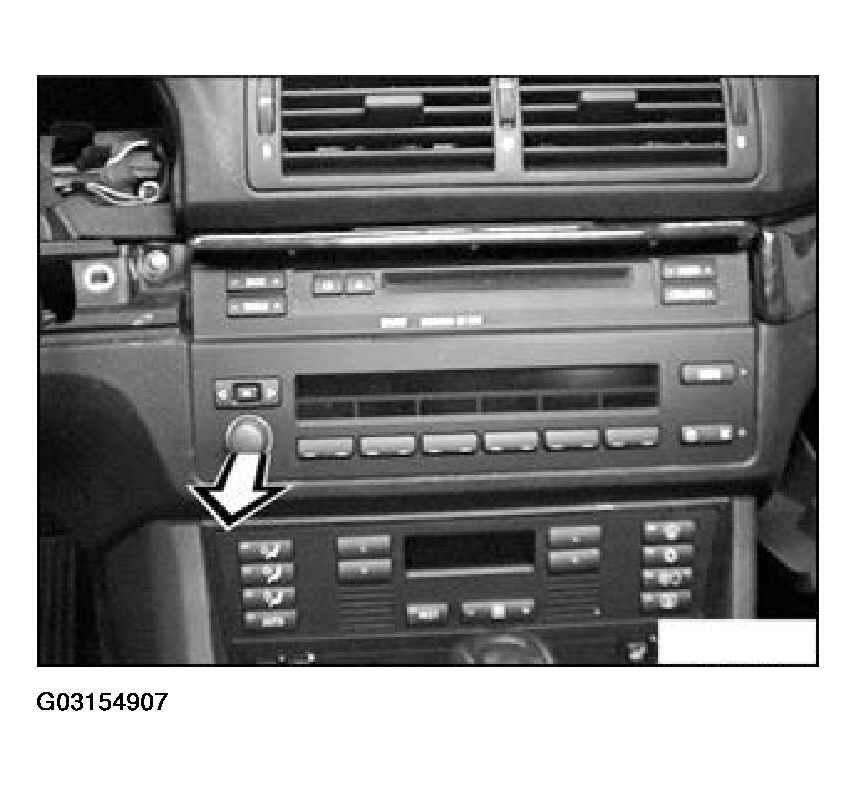

Fig 4: Removing Volume Control Button (MID)
G03154907Courtesy of BMW OF NORTH AMERICA, INC.

Twist detent with Allen key approx. 90° and fold out MID.

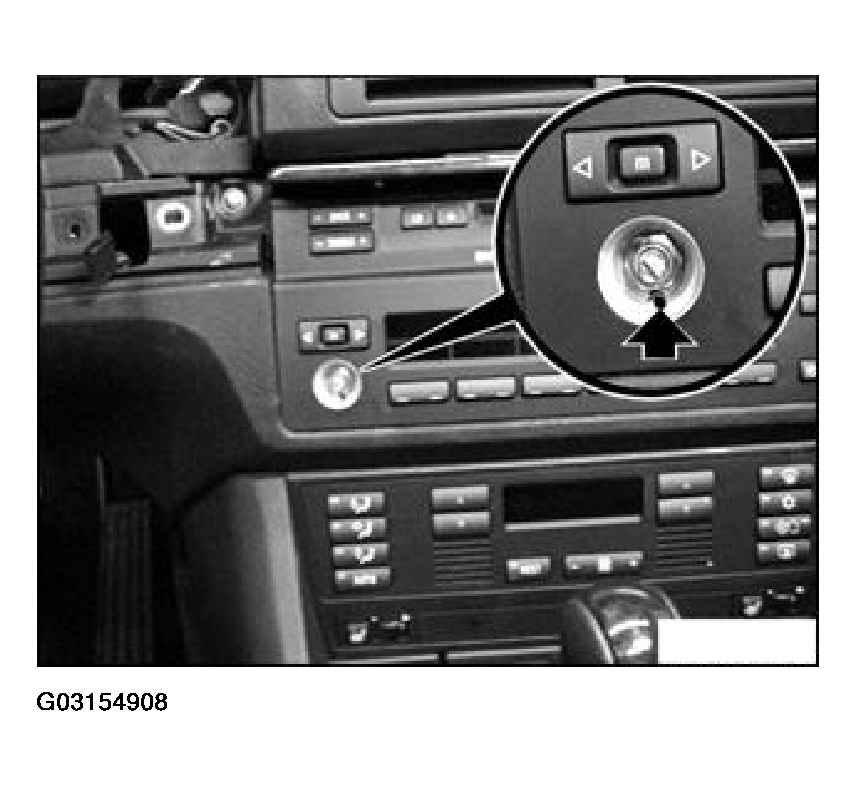

Fig 5: Twisting Detent
G03154908Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector

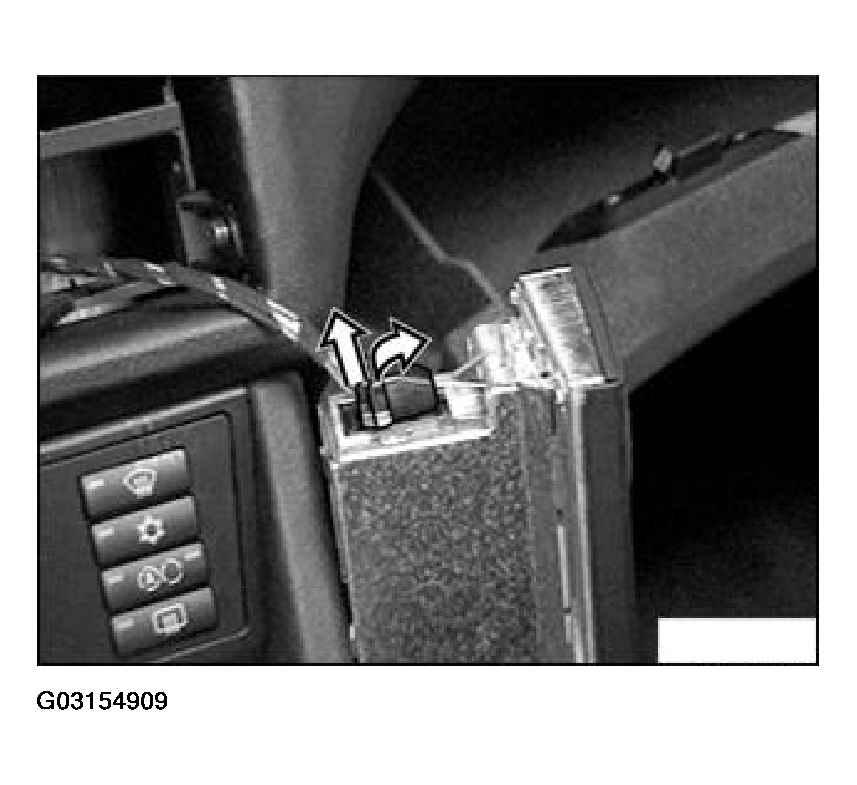

Fig 6: Removing Connector
G03154909Courtesy of BMW OF NORTH AMERICA, INC.
