65 90 510 Removing and installing/replacing navigation computer with CD drive
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 65 5 400
Replacement:
Using BMW scan tool, load operating software and carry out coding.

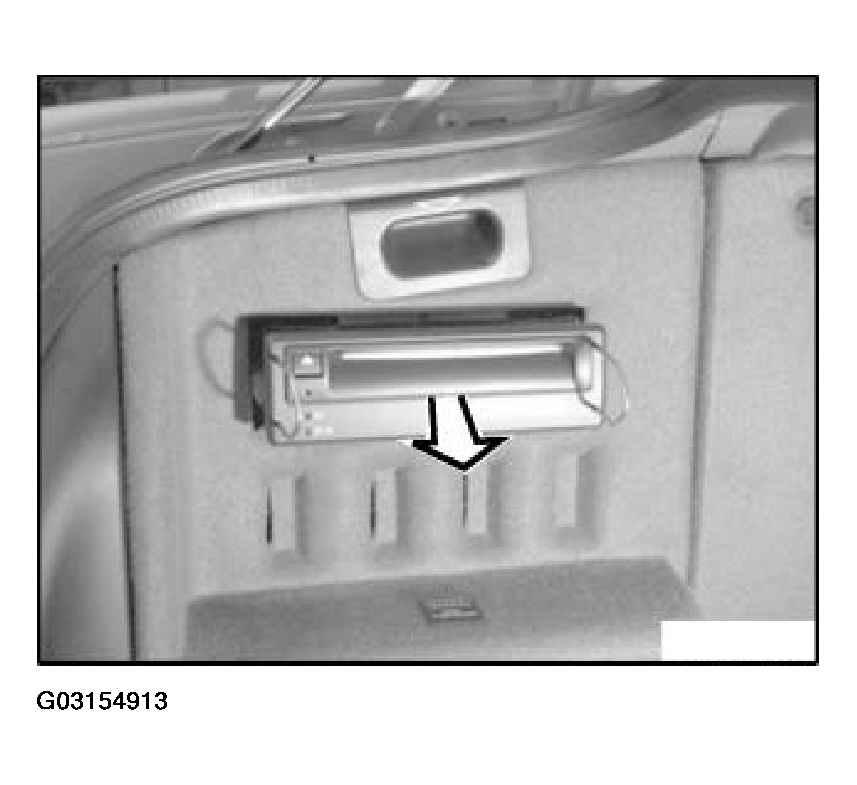

Unlock navigation computer with special tool 65 5 400 and pull out in direction of arrow.
Unlock plug connections and disconnect.
