65 75 570 Removing and installing/replacing control unit for radio interior protection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip and remove cover.

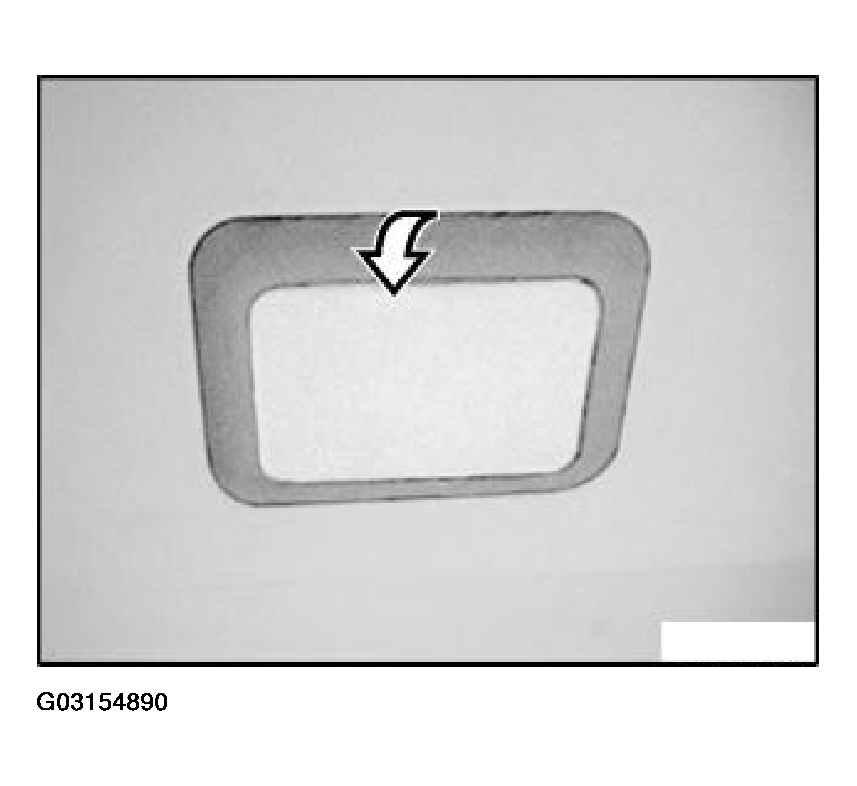

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and allow control unit to hang down.

IMPORTANT: The old control unit can be installed without the shield plate. The shield plate provided must always be installed.

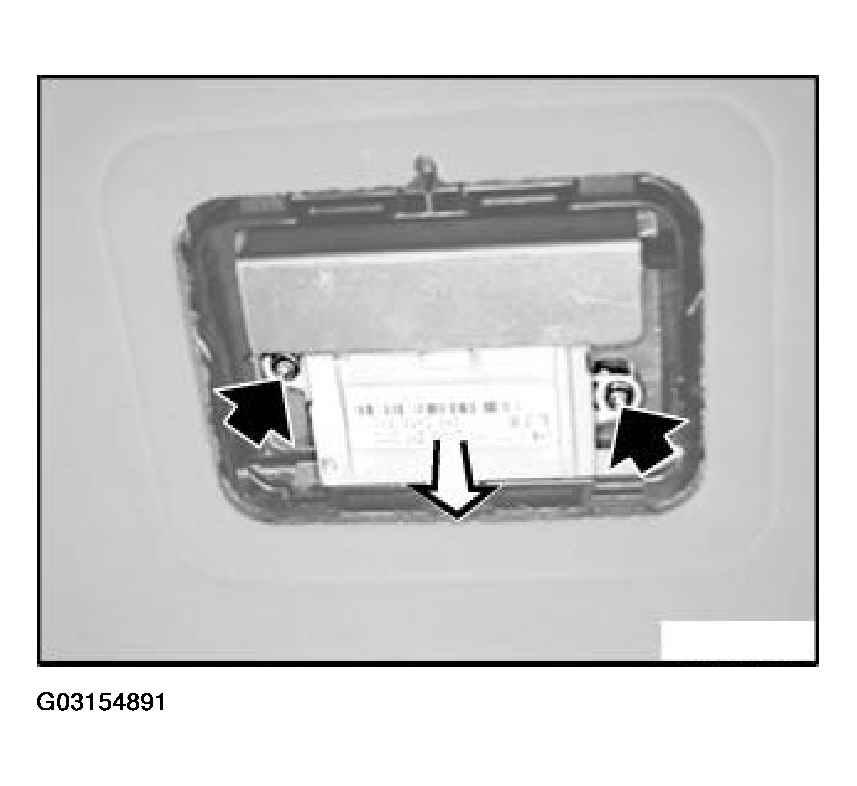

Fig 2: Removing Screws And Allow Control Unit To Hang

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector and thread out cable.

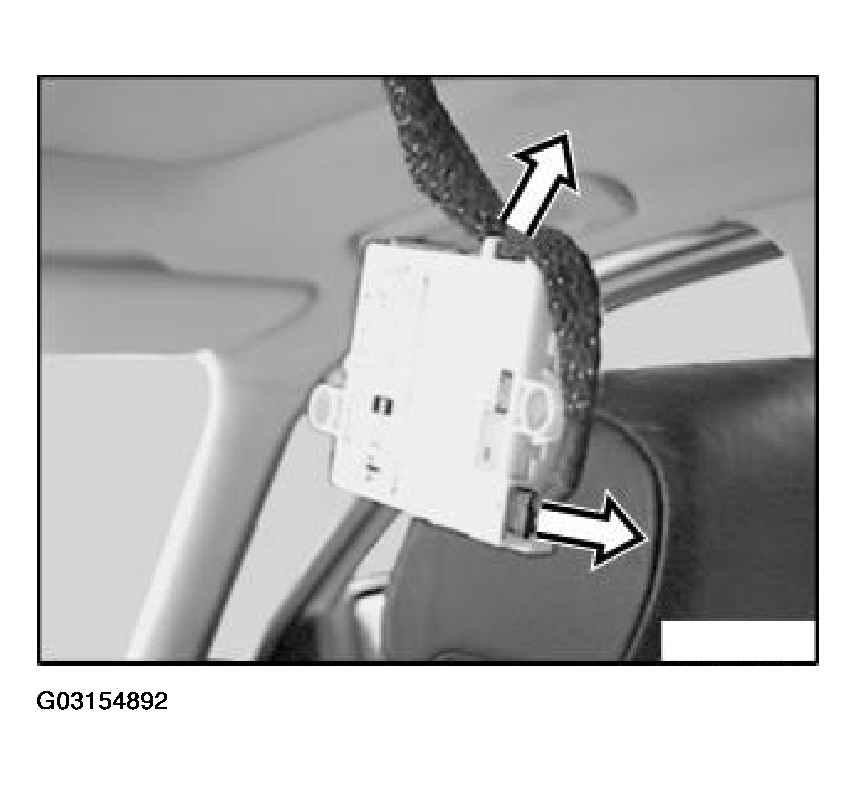

Fig 3: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.
