64 22 190 Removing and installing / replacing fresh-air grille in rear of car: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the equipment version, a can holder or a finisher strip may be installed. Both versions are removed in the same way.

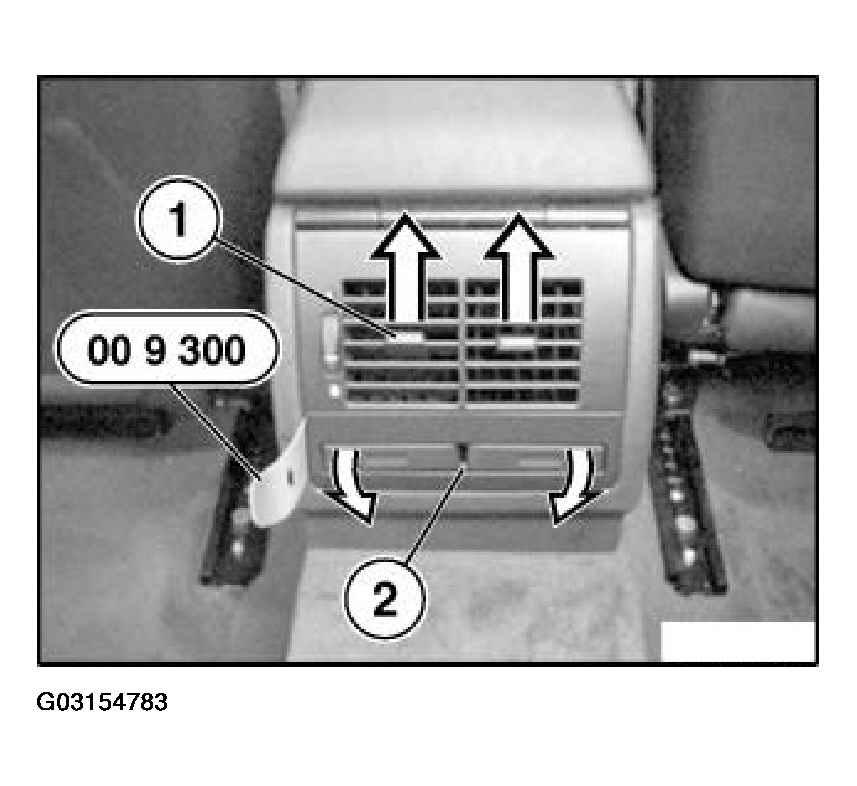

Press fresh-air grill (1) somewhat upward and unclip can holder (2) from guide groove at top.
Guide in special tool 00 9 300 between center console and can holder and lift out can holder (2).

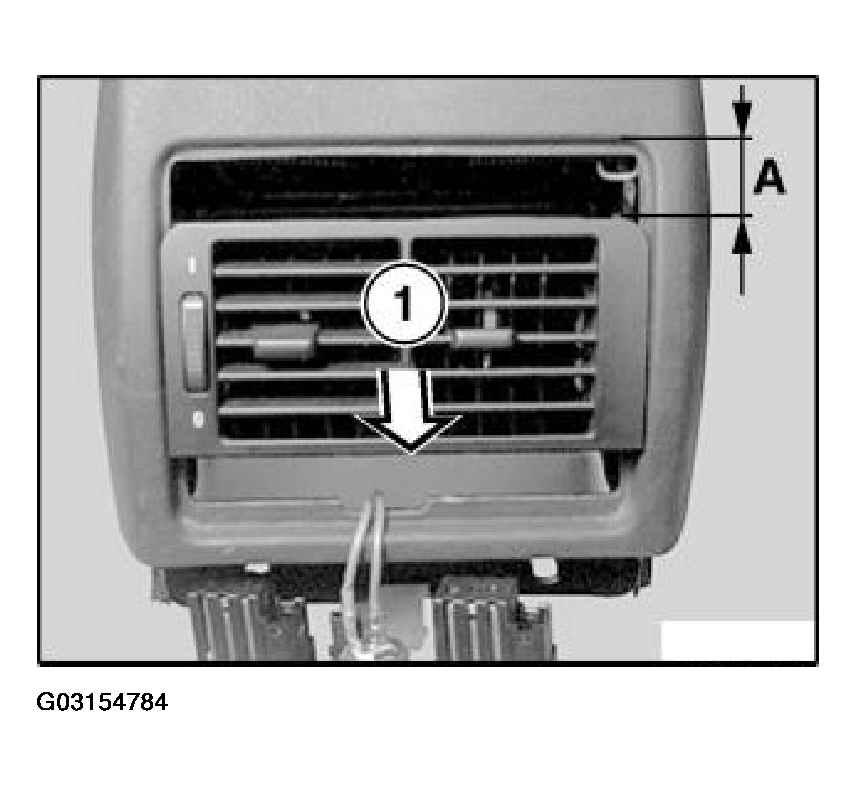

Push down fresh-air grill (1) by dimension A (approx. 30 to 40 mm) and pull out of recesses of guide groove.
