64 22 161 Removing and installing / replacing center fresh-air grille

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

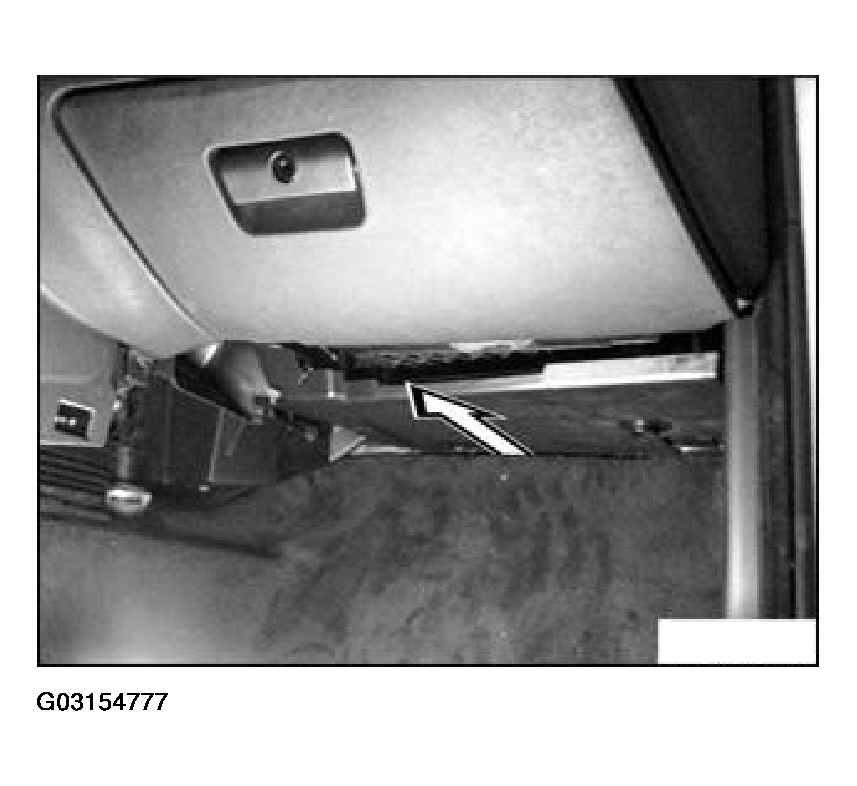

Pull out lower glove compartment trim toward rear.

Fig 1: Removing Lower Glove Compartment Trim

G03154777

Courtesy of BMW OF NORTH AMERICA, INC.

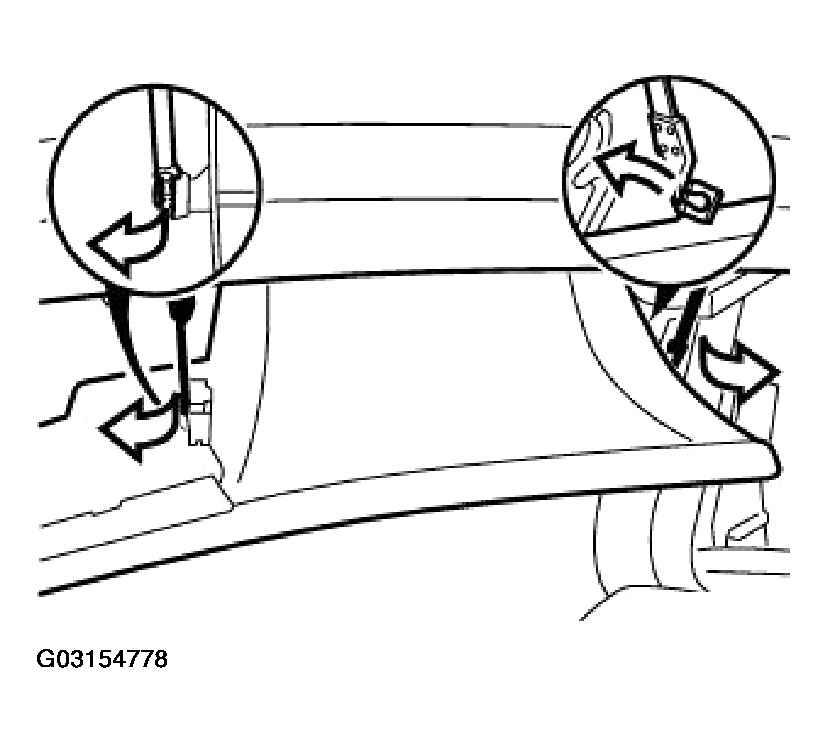

Unclip damper and retaining strap and fold down glove compartment.

Fig 2: Loosening Damper And Retaining Strap

G03154778

Courtesy of BMW OF NORTH AMERICA, INC.

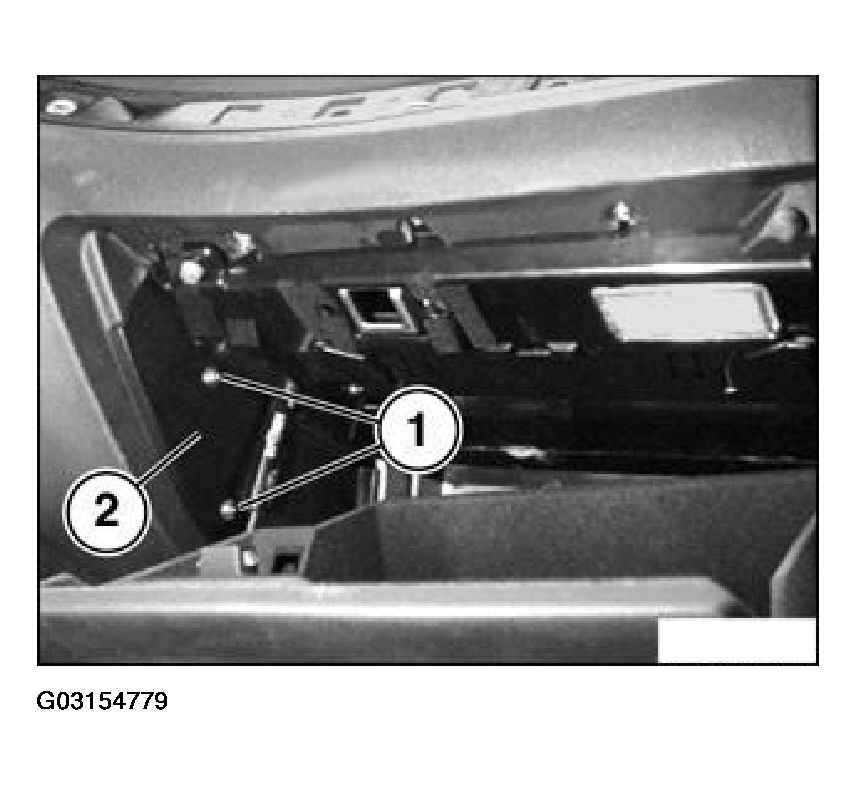

Unfasten screws (1) and take off trim (2).

Fig 3: Releasing Screws And Removing Trim

G03154779

Courtesy of BMW OF NORTH AMERICA, INC.

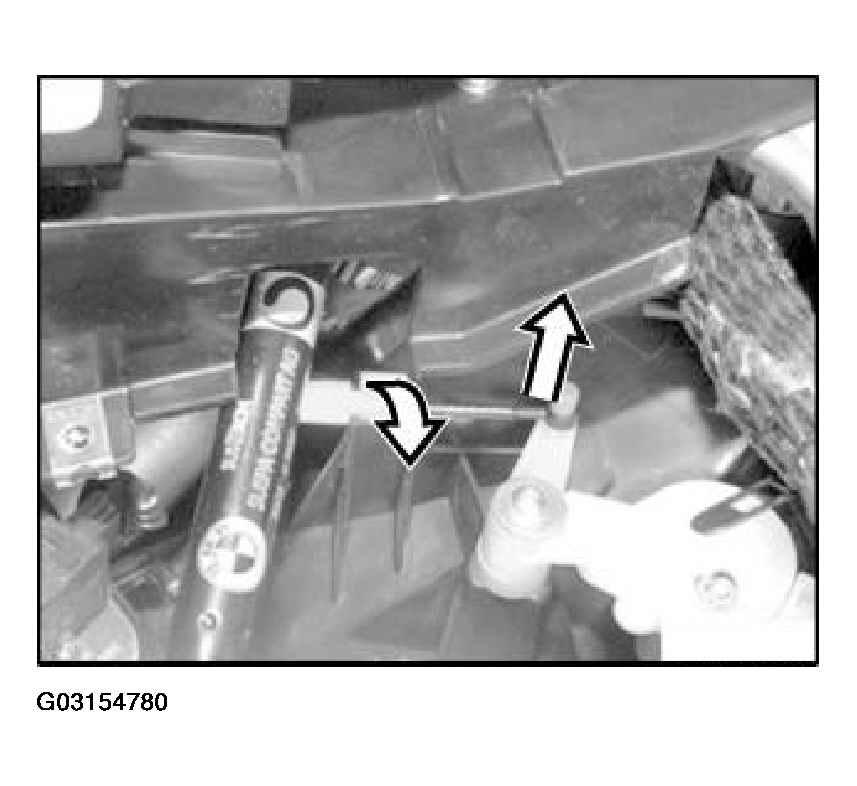

Unhook Bowden cable for mixing flap.

Fig 4: Releasing Mixing Flap Bowden Cable

G03154780

Courtesy of BMW OF NORTH AMERICA, INC.

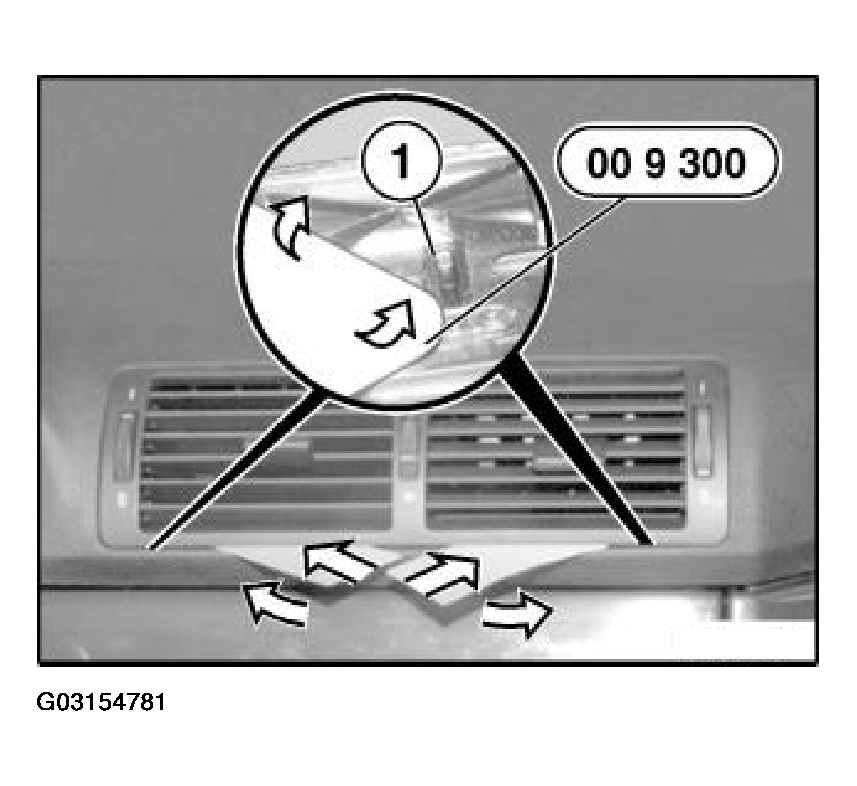

Guide special tool 00 9 300 from center at an angle outward under retaining hooks (1). This releases retaining hooks.

Fig 5: Assembling Special Tool

G03154781

Courtesy of BMW OF NORTH AMERICA, INC.

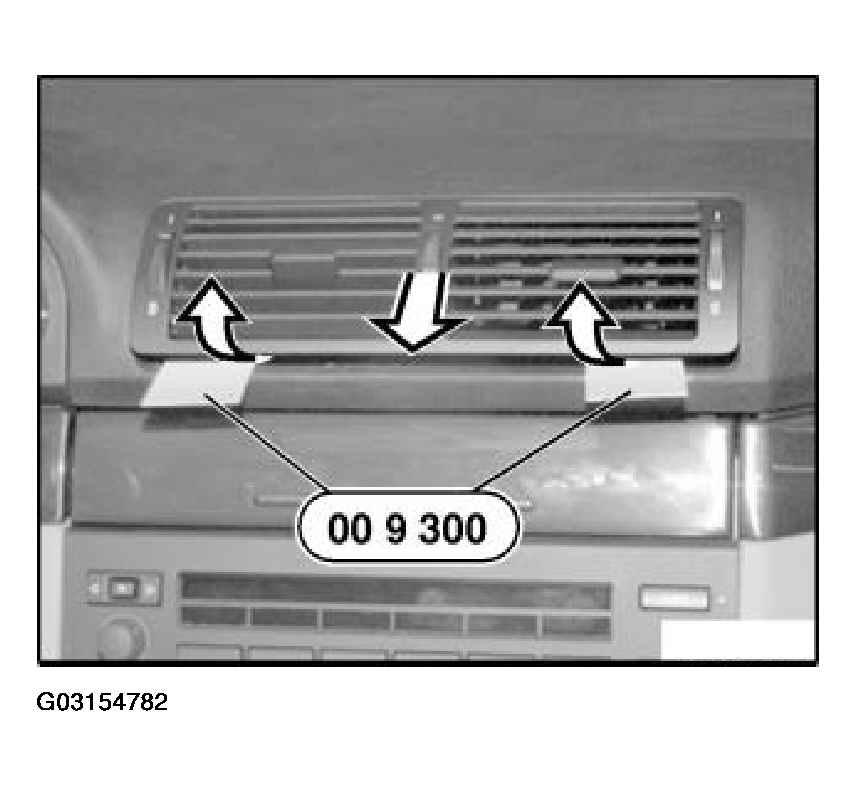

Pry out lower fresh-air grill using special tools 00 9 300 and pull out with Bowden cable. Disconnect cable.

Fig 6: Removing Lower Fresh-Air Grill

G03154782

Courtesy of BMW OF NORTH AMERICA, INC.
