64 11 772 Removing and installing / replacing the rear fan completely: Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

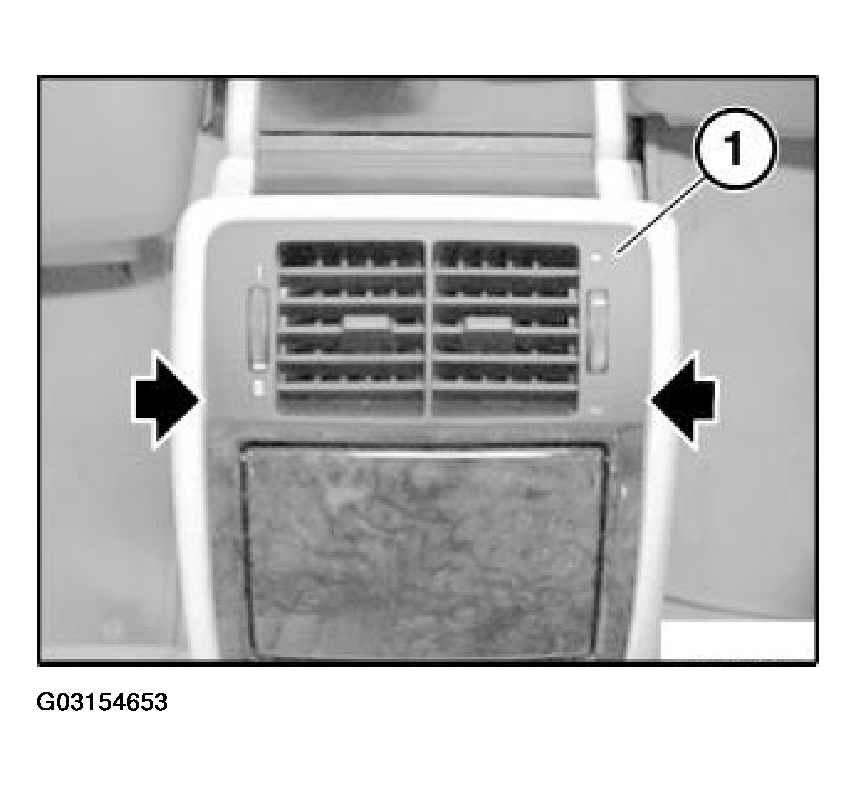

When inserting fresh air grill: do not lay cables in front of air duct.

Fig 1: Releasing Fresh Air Grill

G03154653

Courtesy of BMW OF NORTH AMERICA, INC.

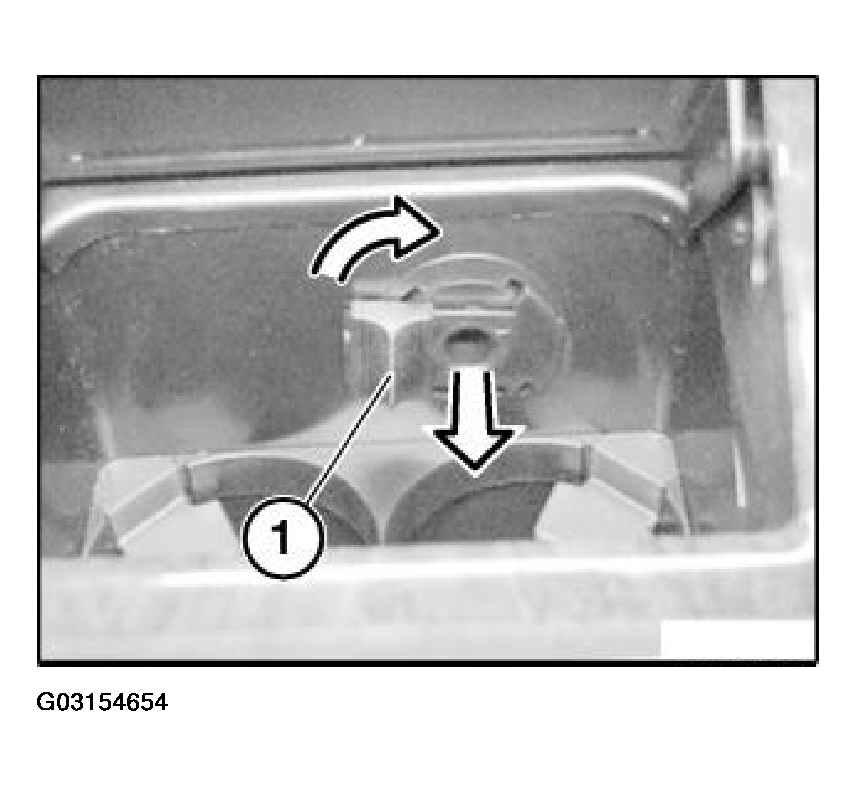

Turn adapter (1) clockwise, unlock and pull out towards rear.

Fig 2: Removing Adapter

G03154654

Courtesy of BMW OF NORTH AMERICA, INC.

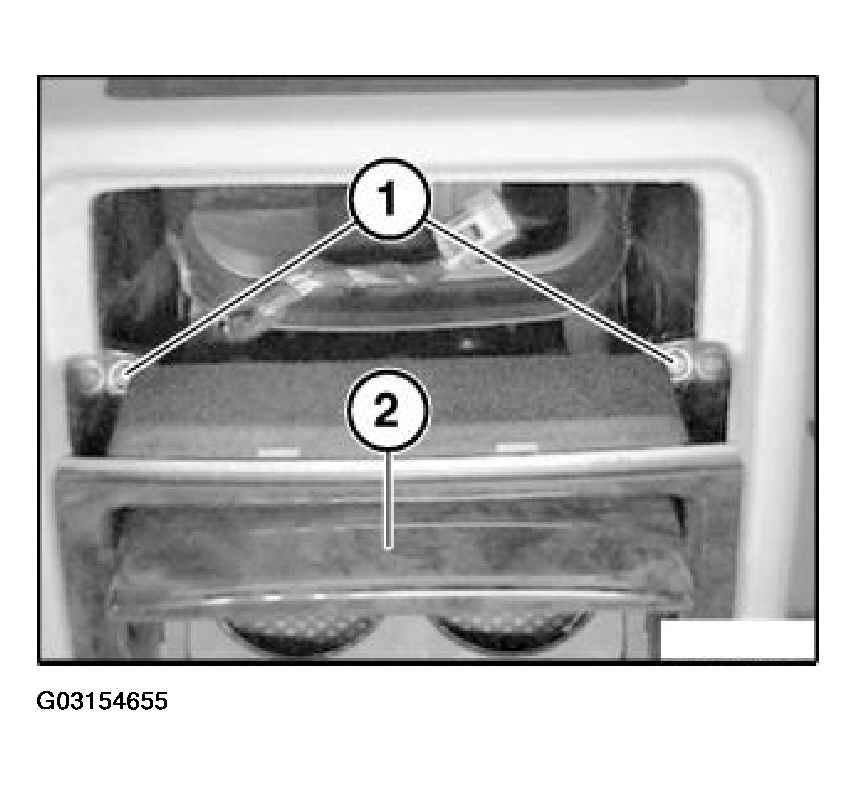

Unscrew bolts (1). Pull out storage tray (2) towards top.

Fig 3: Removing Storage Tray

G03154655

Courtesy of BMW OF NORTH AMERICA, INC.

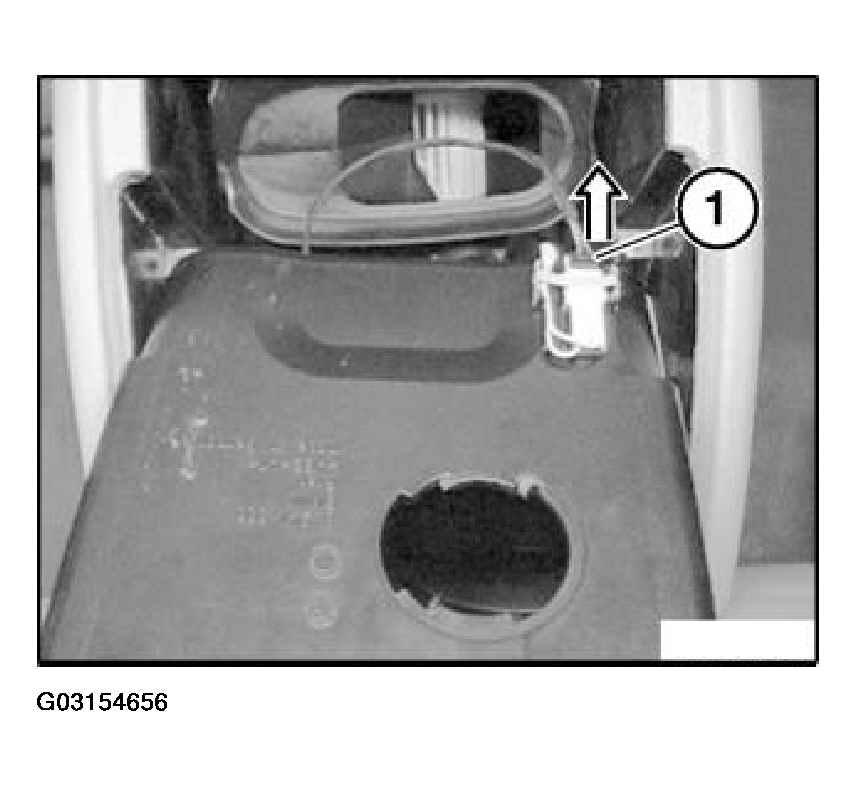

Unfasten plug connection (1).

Fig 4: Disconnecting Plug Connection

G03154656

Courtesy of BMW OF NORTH AMERICA, INC.

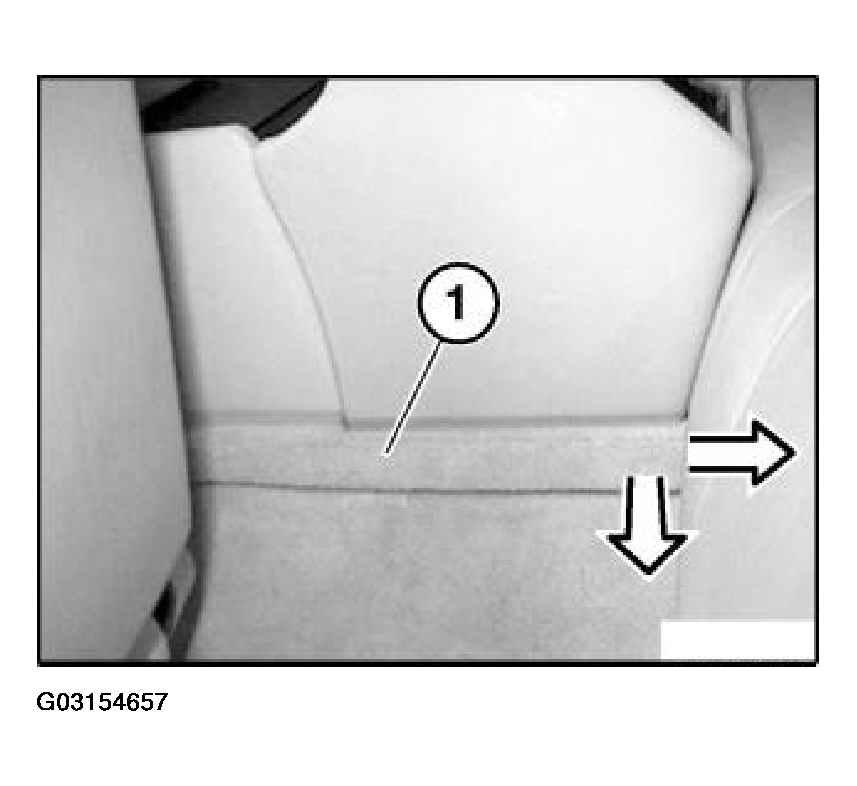

Unclip side carpet (1), left and right, at rear and pull out of clips towards rear.

Fig 5: Releasing Side Carpet

G03154657

Courtesy of BMW OF NORTH AMERICA, INC.

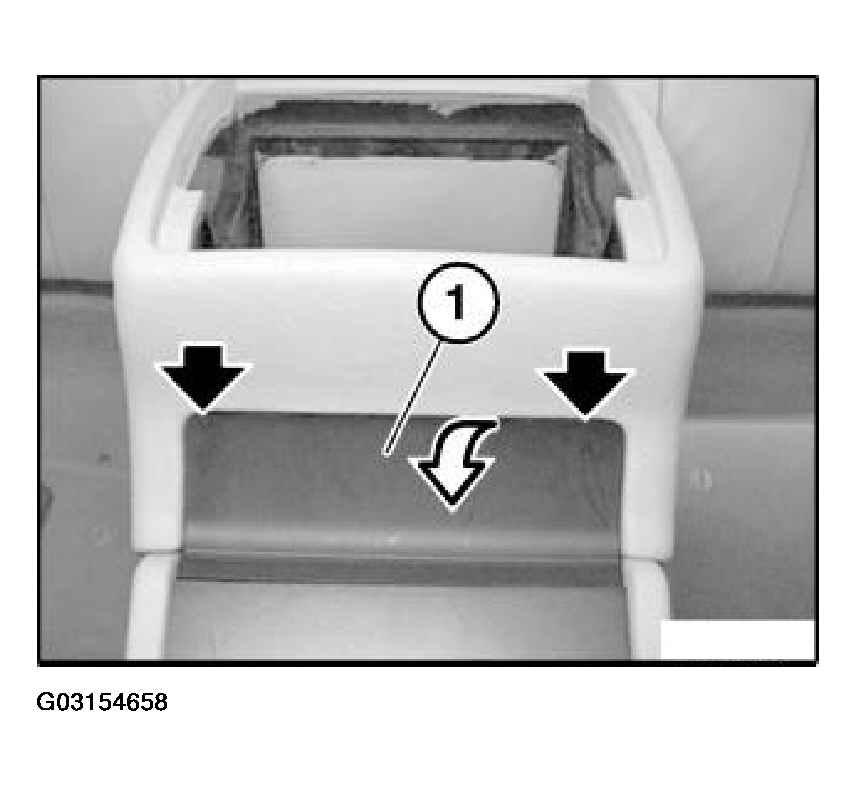

Unclip trim (1) from above and take out towards front.

Fig 6: Releasing And Removing Trim

G03154658

Courtesy of BMW OF NORTH AMERICA, INC.

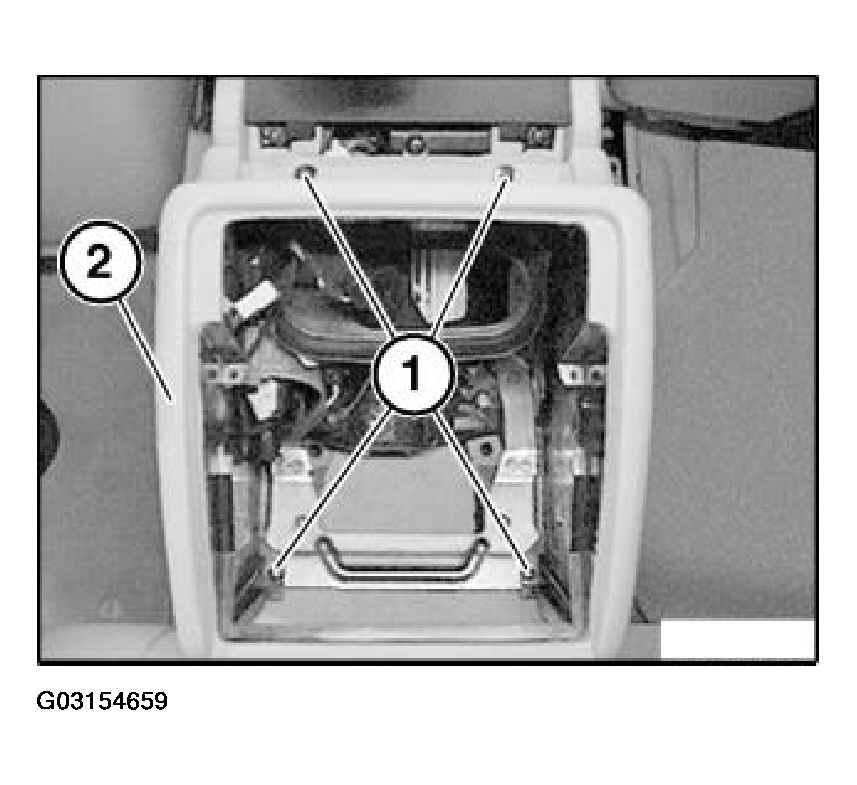

Unscrew bolts (1). Remove console (2) towards top.

Fig 7: Removing Console

G03154659

Courtesy of BMW OF NORTH AMERICA, INC.

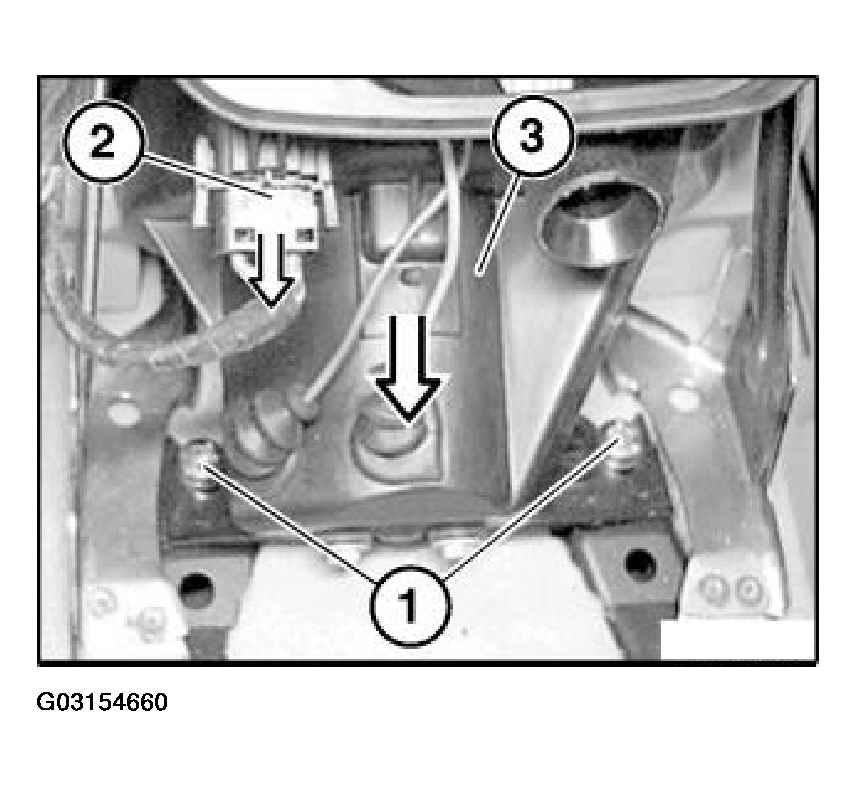

Unscrew bolts (1). Disconnect connector (2). Pull out rear fan (3) towards rear.

Make sure air duct is correctly seated.

Fig 8: Identifying Air Duct Proper Installation

G03154660

Courtesy of BMW OF NORTH AMERICA, INC.
