64 11 322 Replacing front plate (air conditioner control)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove heating controls. See 64 11 749 Removing And Installing / Replacing Heater Controls (Automatic Air Conditioner) .

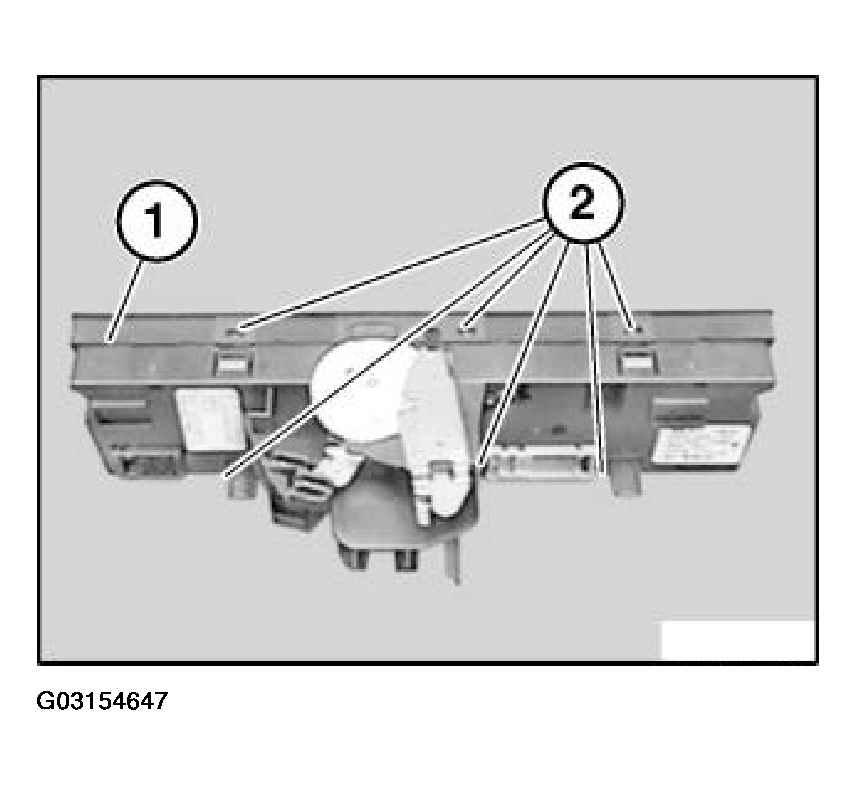

Lever out front plate (1) at openings (2) and remove.
