64 11 321 Replacing front plate (air conditioner controls): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater controls. See 64 11 321 Replacing front plate (air conditioner controls) .

refer to 64 11 749 REMOVING AND INSTALLING / REPLACING HEATER CONTROLS (AUTOMATIC AIR CONDITIONER) .

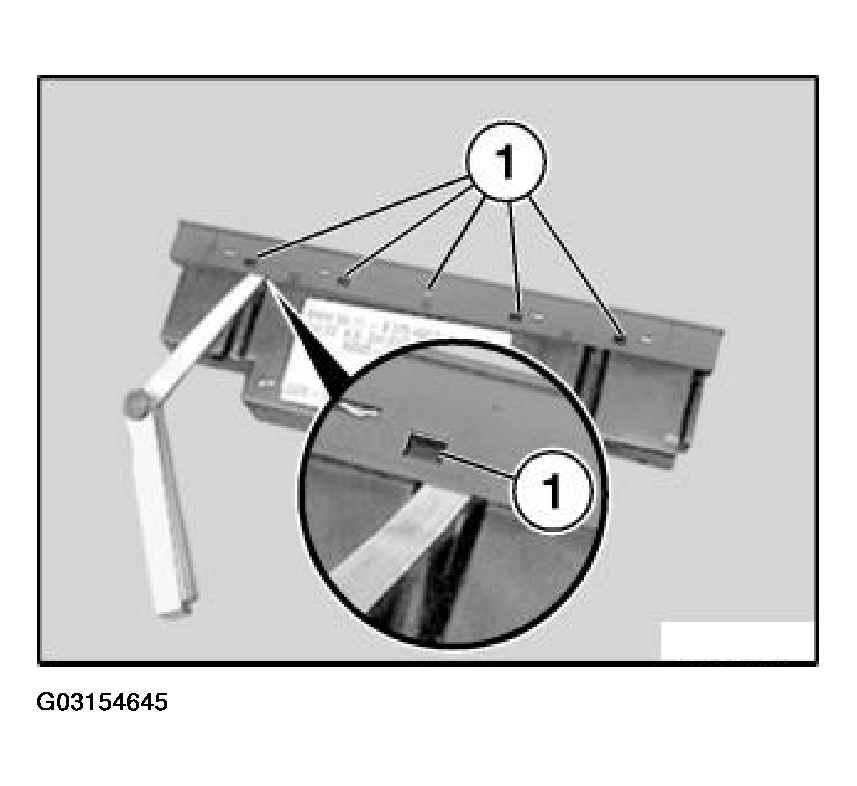

Carefully unclip clips (1) at top and bottom. Remove front plate.

Fig 1: Releasing Clip And Removing Front Plate

Courtesy of BMW OF NORTH AMERICA, INC.
