64 11 210 Removing and installing / replacing heater blower.: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing upper section of instrument panel trim, refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL .

Remove foam rubber mat.

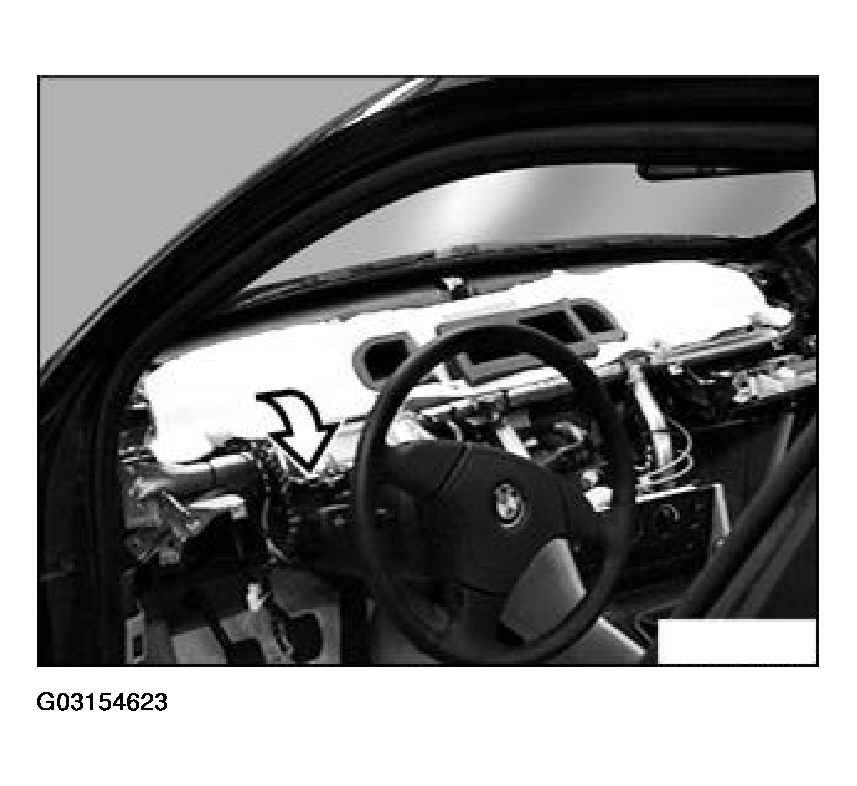

Fig 1: Removing Foam Rubber Mat

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and pry out ventilation duct.

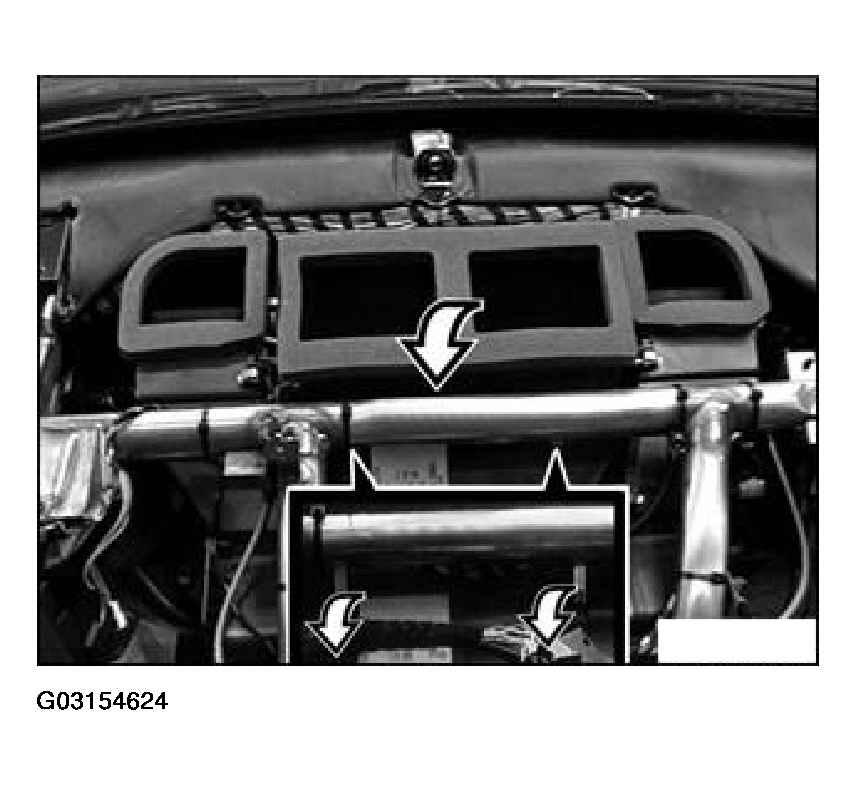

Fig 2: Removing Ventilation Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Slide connecting rail to one side.

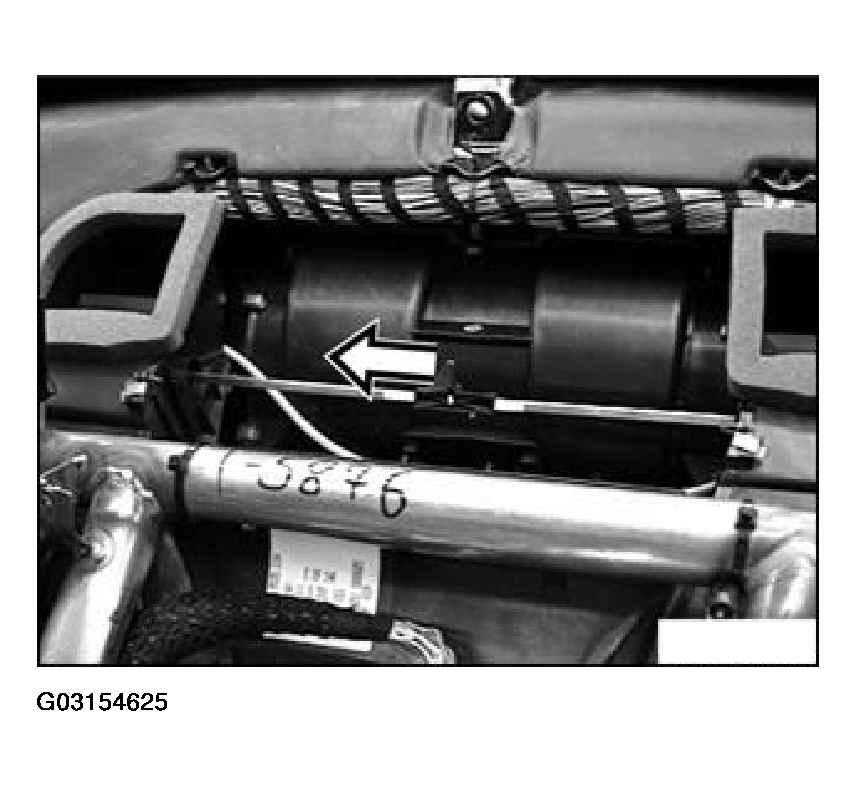

Fig 3: Sliding Connecting Rail To One Side

Courtesy of BMW OF NORTH AMERICA, INC.
