64 11 210 Removing and installing / replacing heater blower.: Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Slide connecting rail over both linkages until the ends of both linkages are visible in the bore (1).

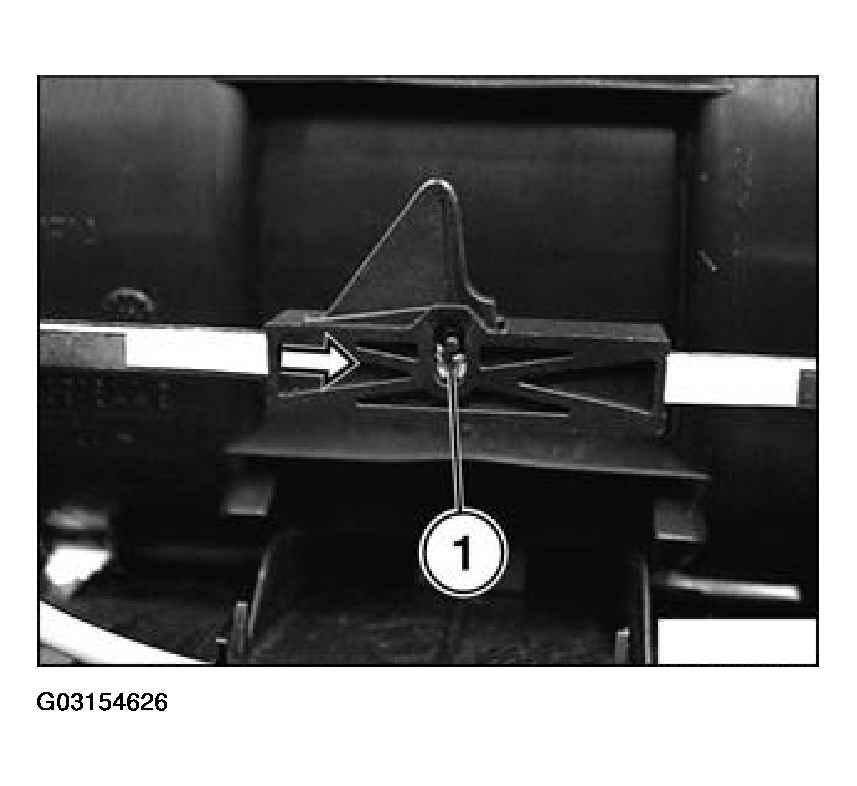

Fig 1: Sliding Connecting Rail Over Both Linkages Until Ends Of Both Linkages Are Visible In Bore (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull both linkages out of the flaps.

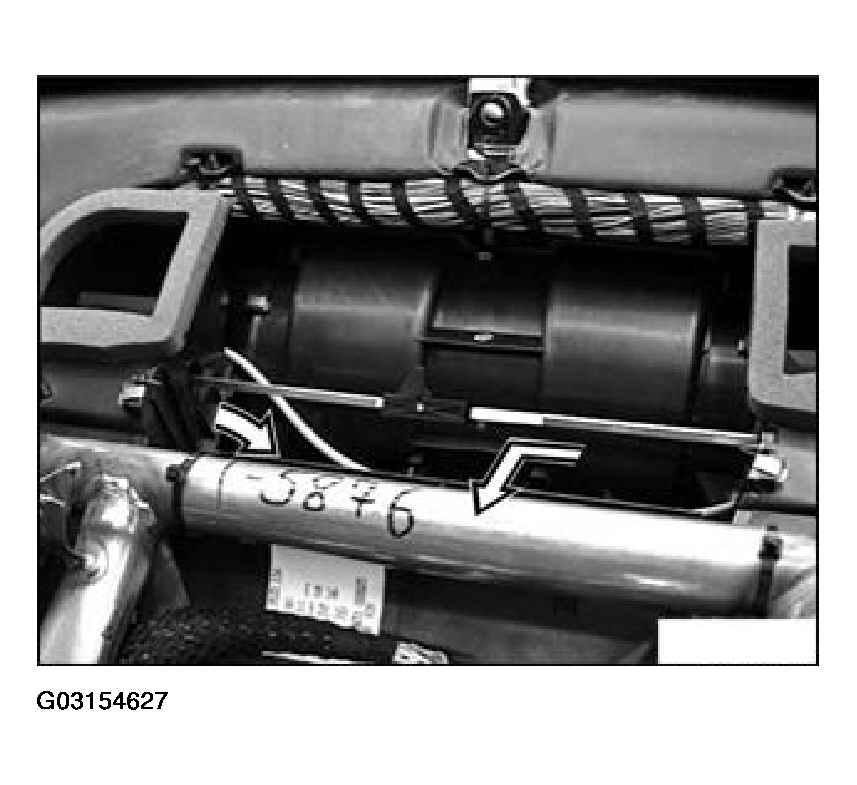

Fig 2: Removing Linkages From Flaps

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and remove blower cover from lugs (1).

First insert lugs in the cover, then attach the clips.

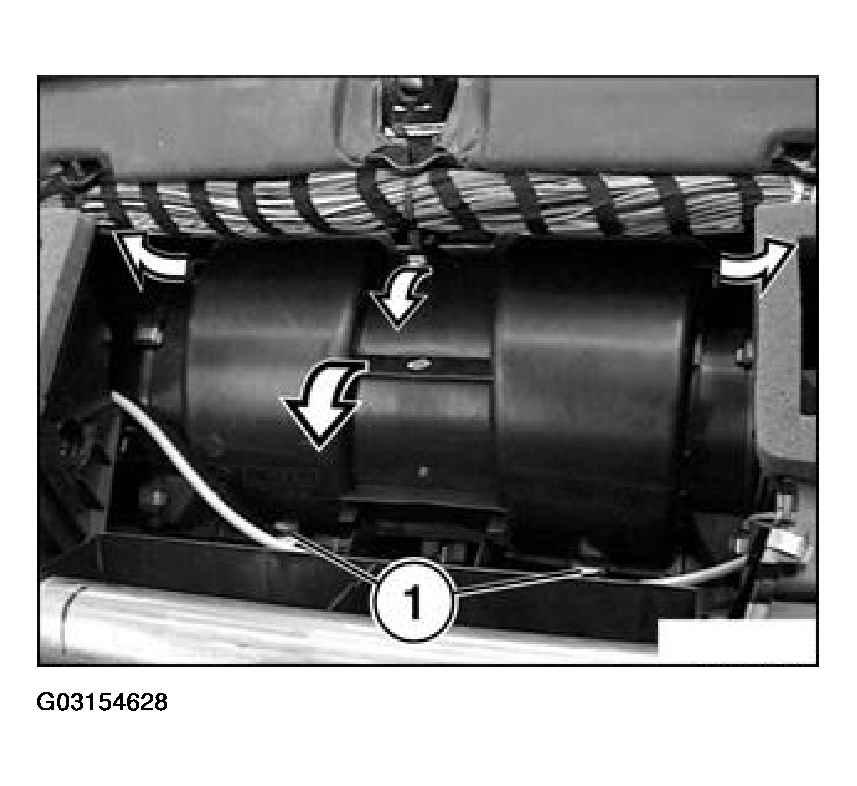

Fig 3: Inserting Lugs In Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, unfasten screws and remove blower.

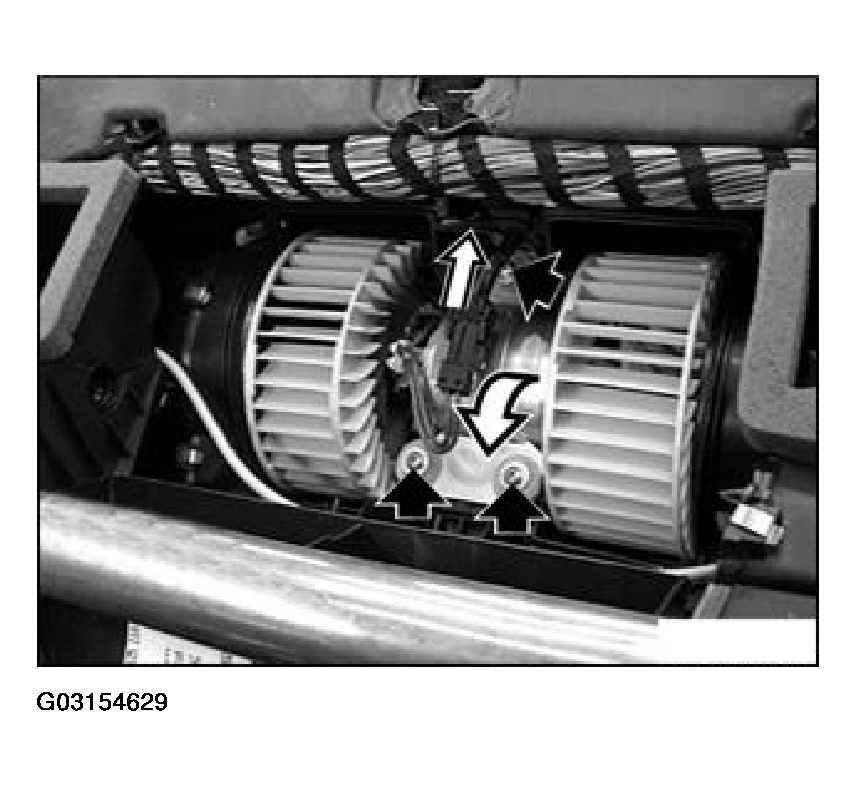

Fig 4: Removing Blower

Courtesy of BMW OF NORTH AMERICA, INC.
