64 11 200 Removing and installing/replacing heater: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten clip from right and left air ducts, twist air duct and lift out.

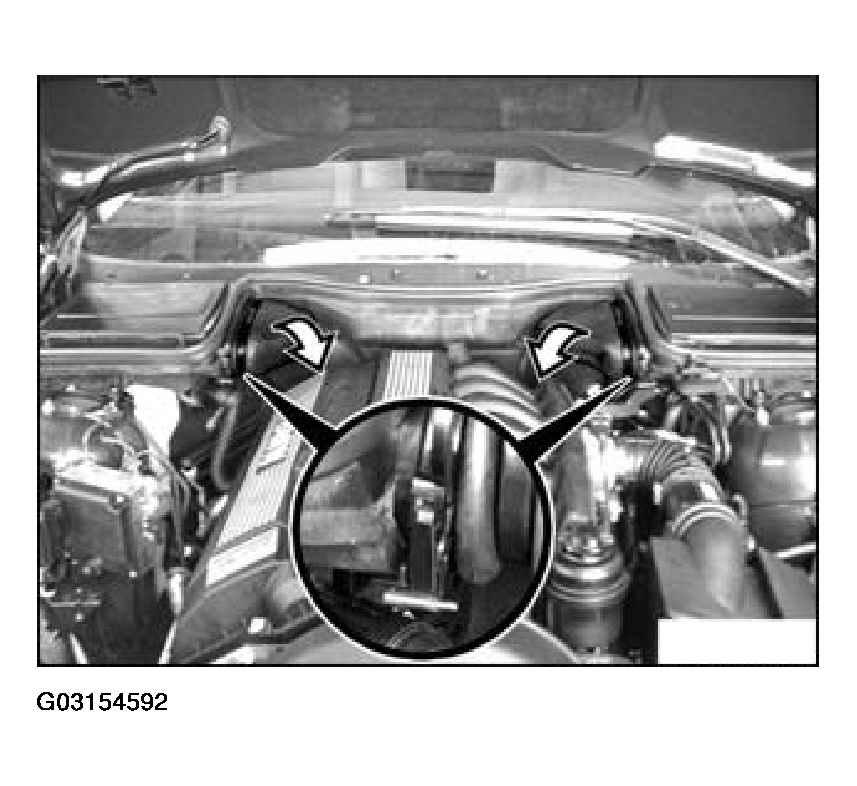

Fig 1: Removing Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.
