17 11 530 Removing and installing cassette (condenser for air conditioner): Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing rings.

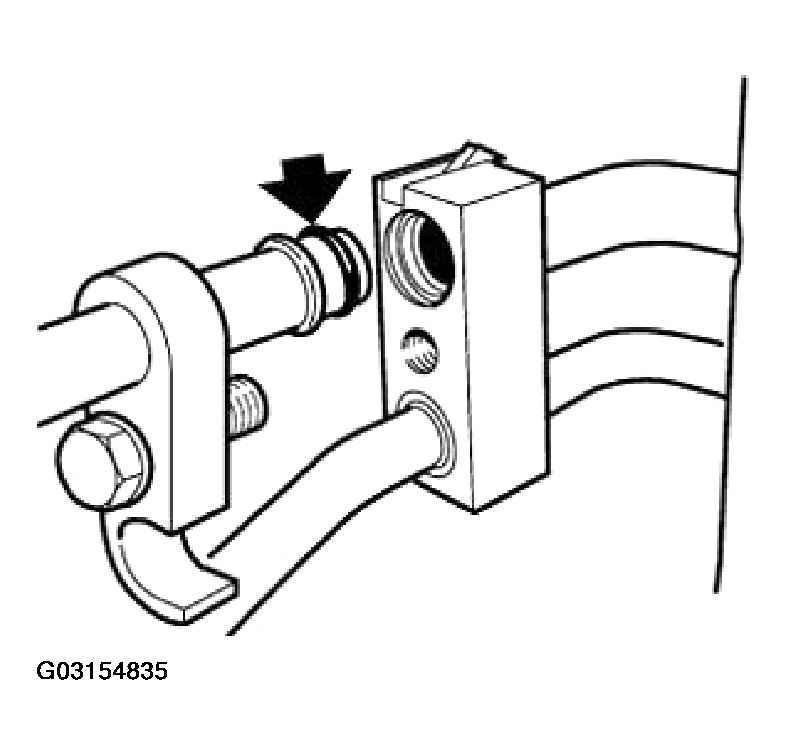

Fig 1: Replacing Sealing Rings

G03154835

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off refrigerant from A/C system. See 64 50 009 Drawing Off, Evacuating And Filling A/C System (R 134a)

Remove lines from air conditioner.

Installation

Replace sealing rings.

Evacuate and fill A/C system. See 64 50 009 Drawing Off, Evacuating And Filling A/C System (R 134a)

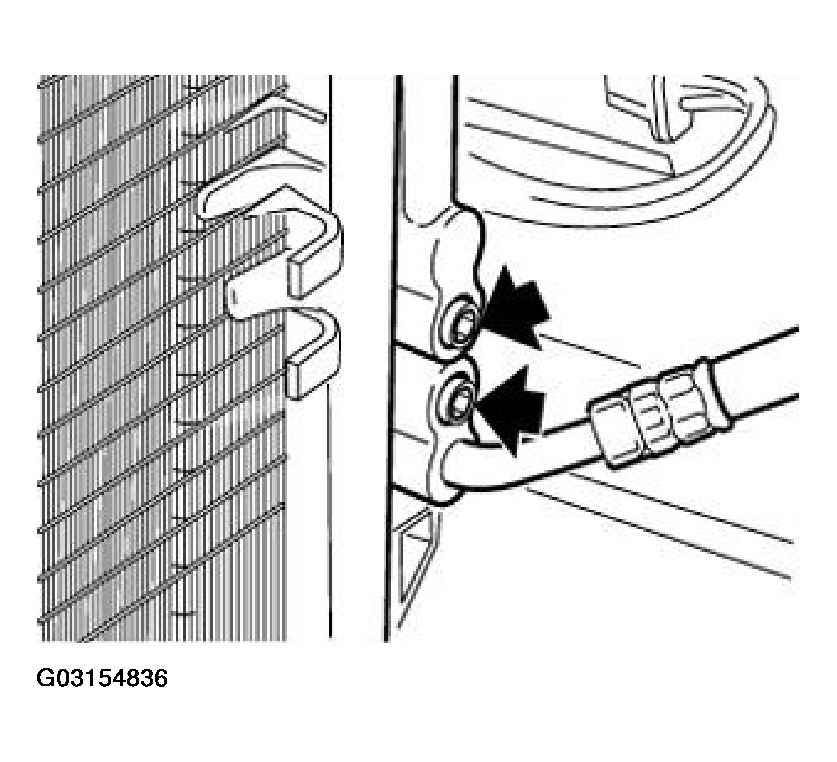

Fig 2: Removing Lines From Air Conditioner

G03154836

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt cassette backwards slightly and lift upwards to remove.

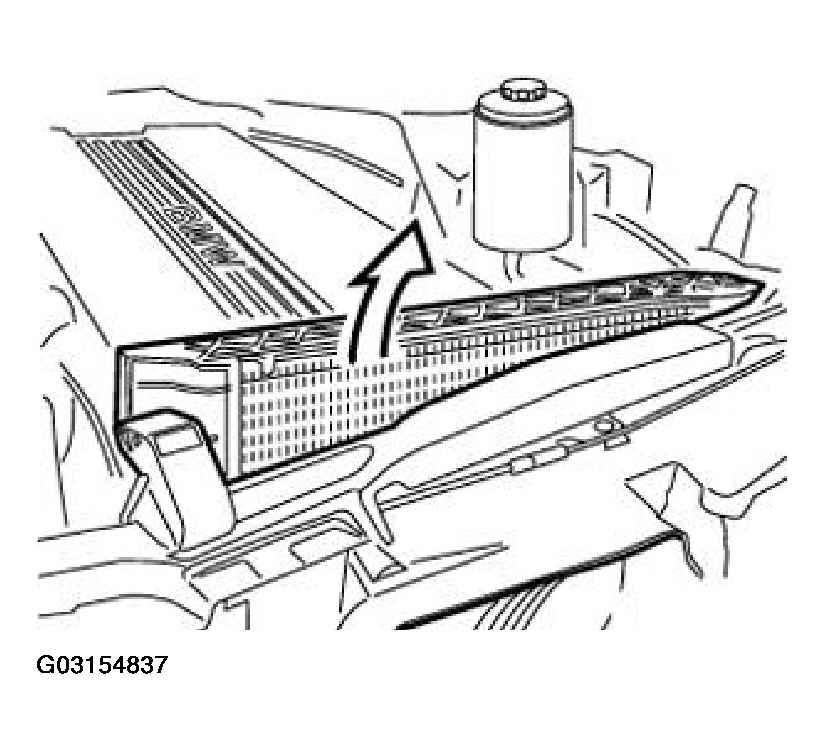

Fig 3: Removing Cassette

G03154837

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Note rubber mounts on front wall.

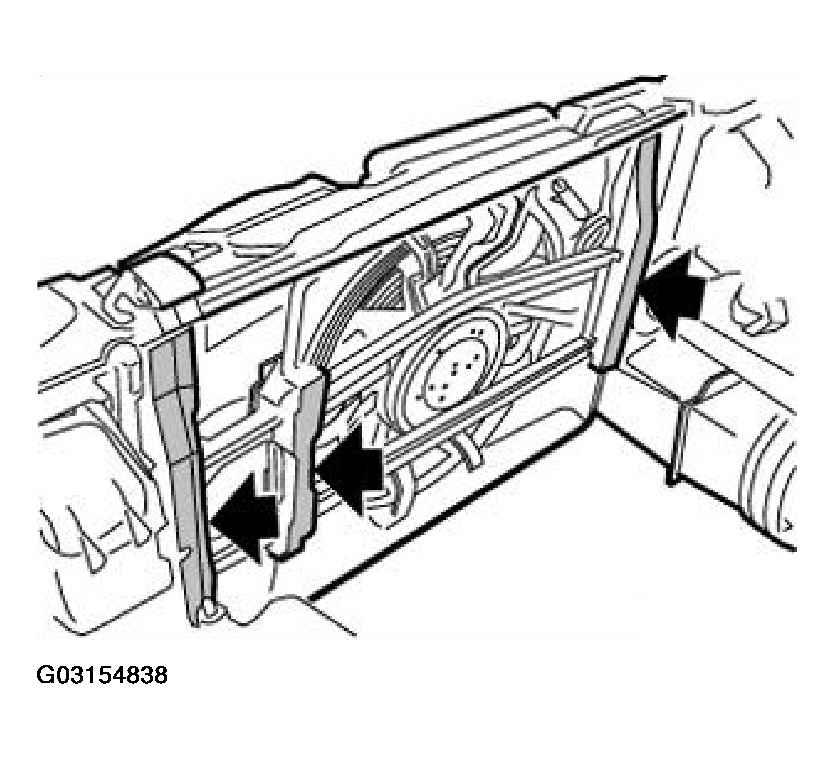

Fig 4: Locating Rubber Mounts On Front Wall

G03154838

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check rubber mounts on left and right sides.

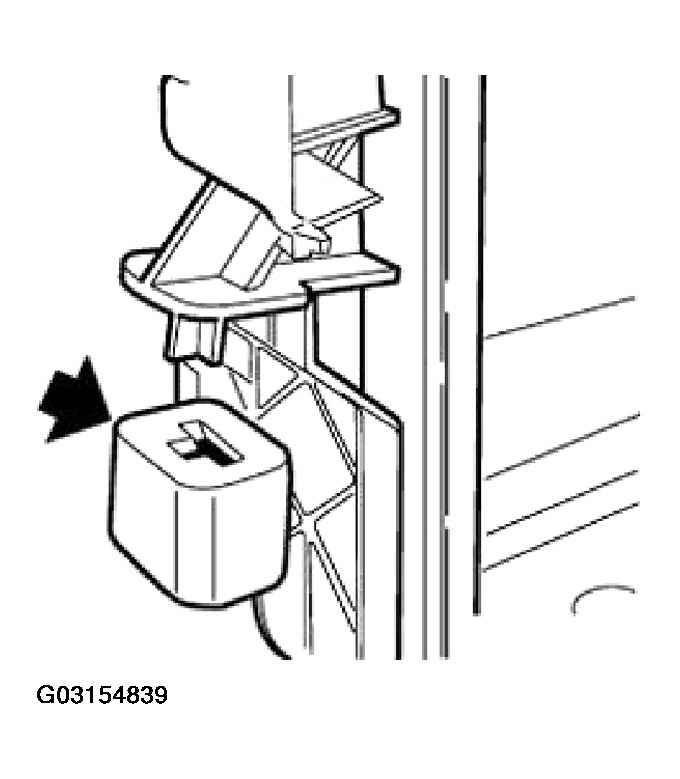

Fig 5: Locating Rubber Mounts On Left And Right Sides

G03154839

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install cassette in left and right retainers and push forwards as far as it will go.

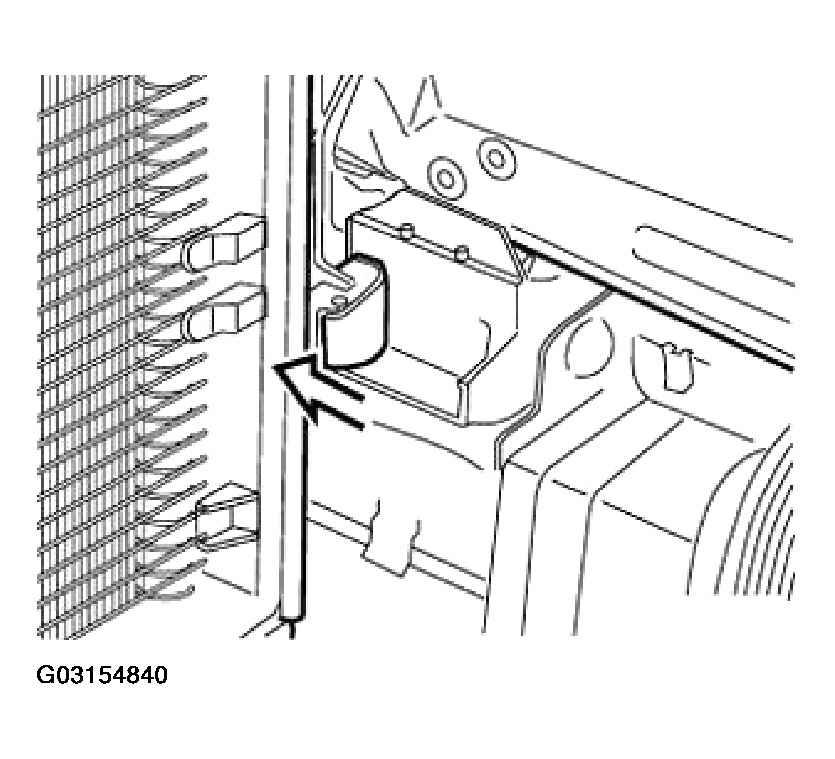

Fig 6: Installing Cassette In Left And Right Retainers

G03154840

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check rubber profile seals.

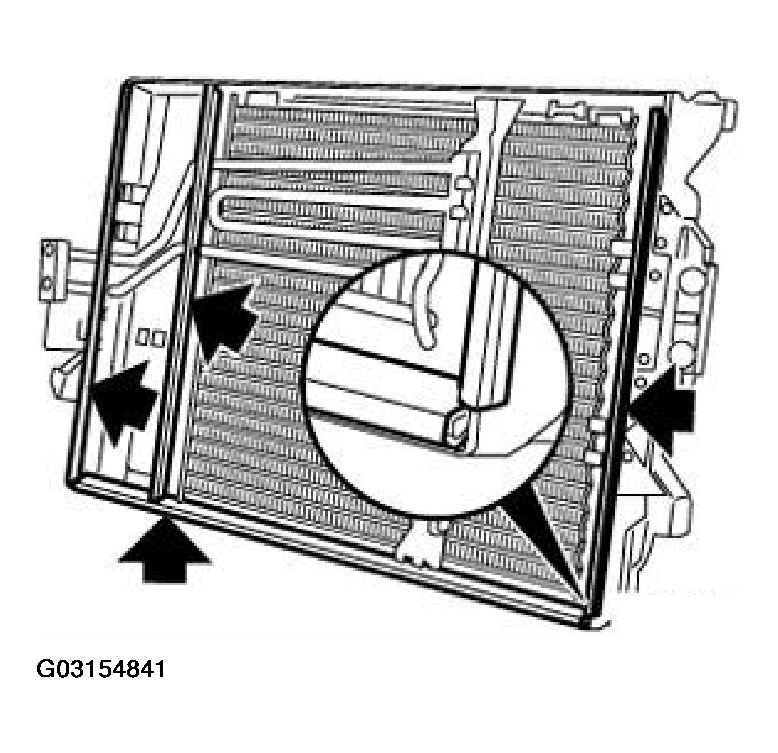

Fig 7: Checking Rubber Profile Seals

G03154841

Courtesy of BMW OF NORTH AMERICA, INC.
