64 12 770 Removing and installing/replacing changeover valve for latent heat accumulator: Notes

Remove left front wheel and left wheel arch trim. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

If necessary, remove plastic cover from valve unit

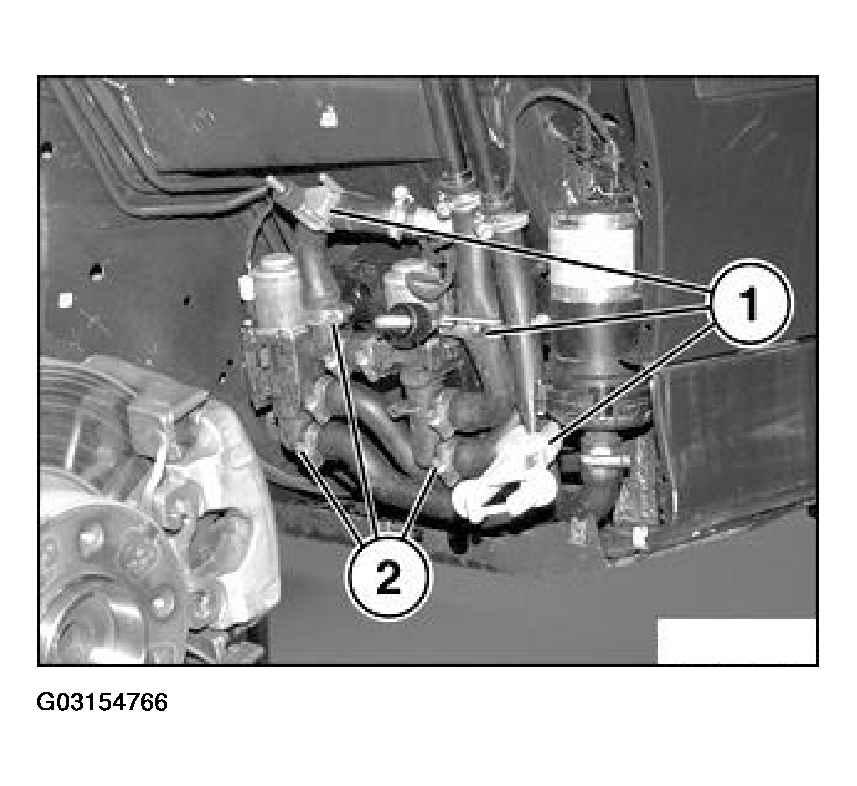

Disconnect hoses (1), unfasten hose clip (2) and pull off hoses.

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

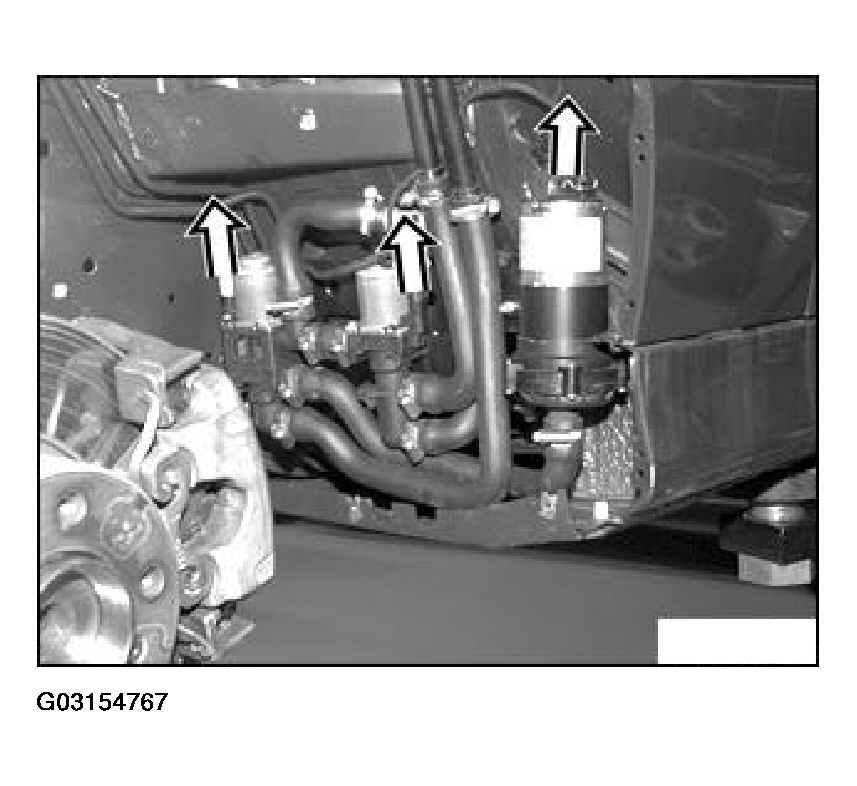

Pull off connectors.

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

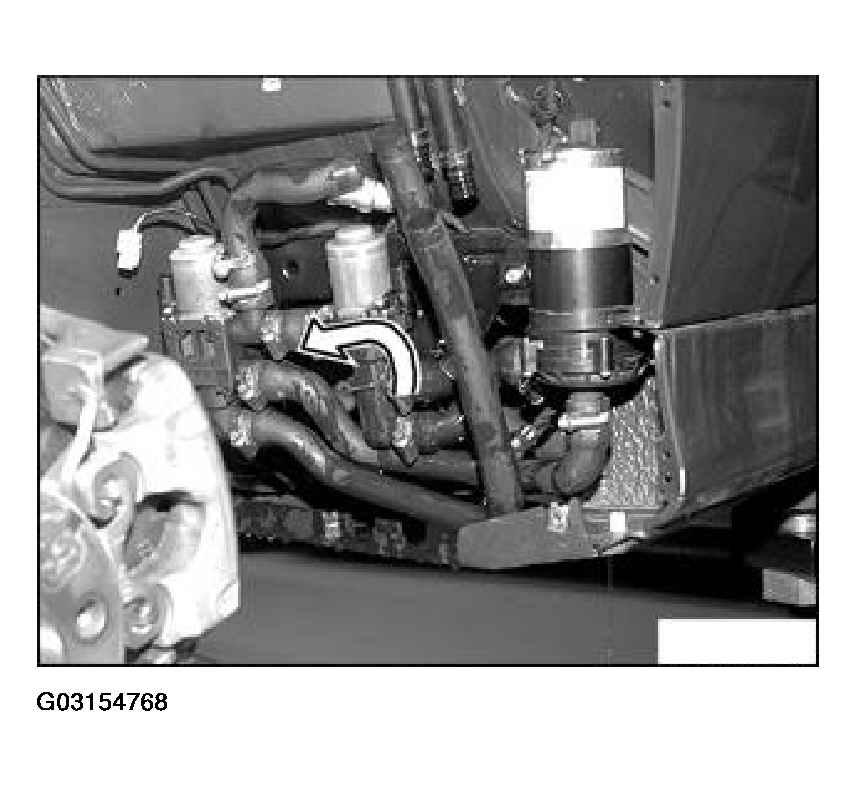

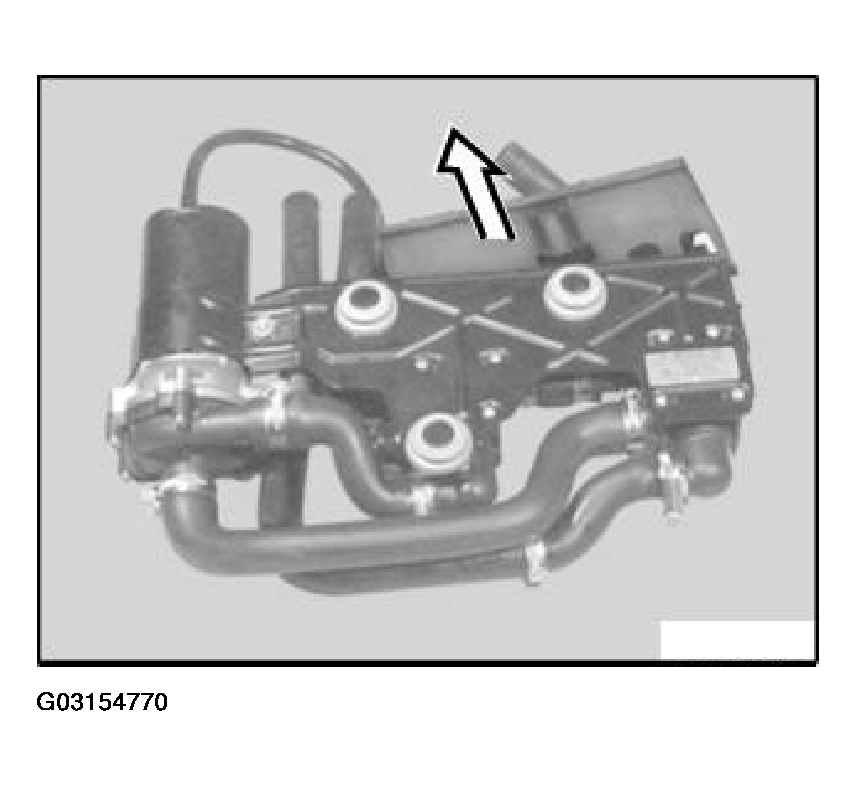

Slide valve unit upwards and lift forwards to remove.

Fig 3: Removing Valve Unit

Courtesy of BMW OF NORTH AMERICA, INC.

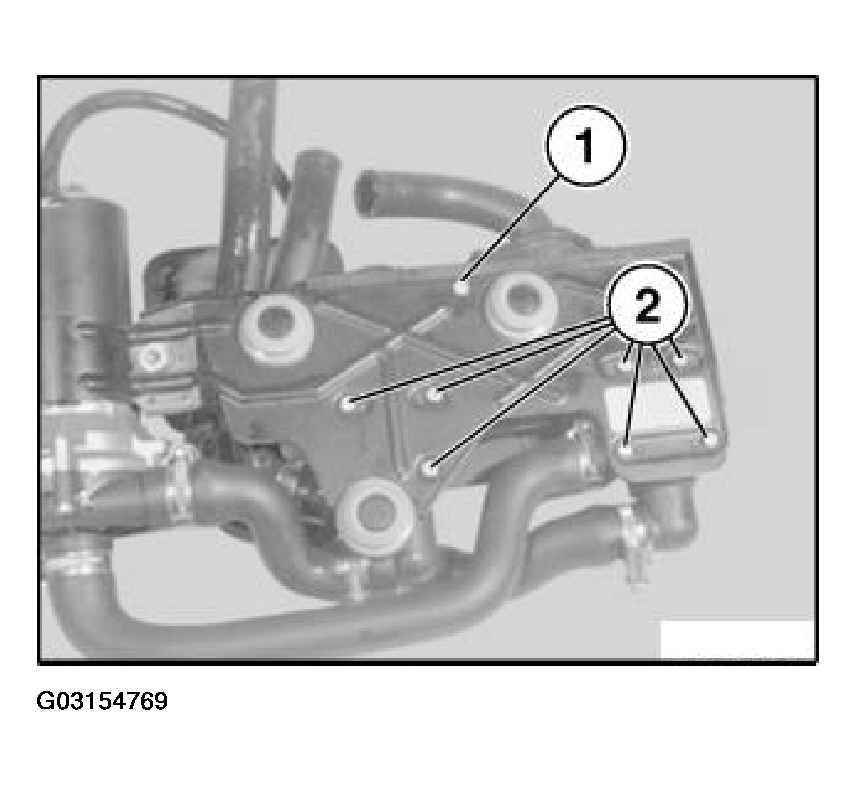

Unscrew bolt (1). Loosen screws (2).

Fig 4: Loosening Bolt And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift valve cover upwards to remove.

Fig 5: Removing Valve Cover

Courtesy of BMW OF NORTH AMERICA, INC.

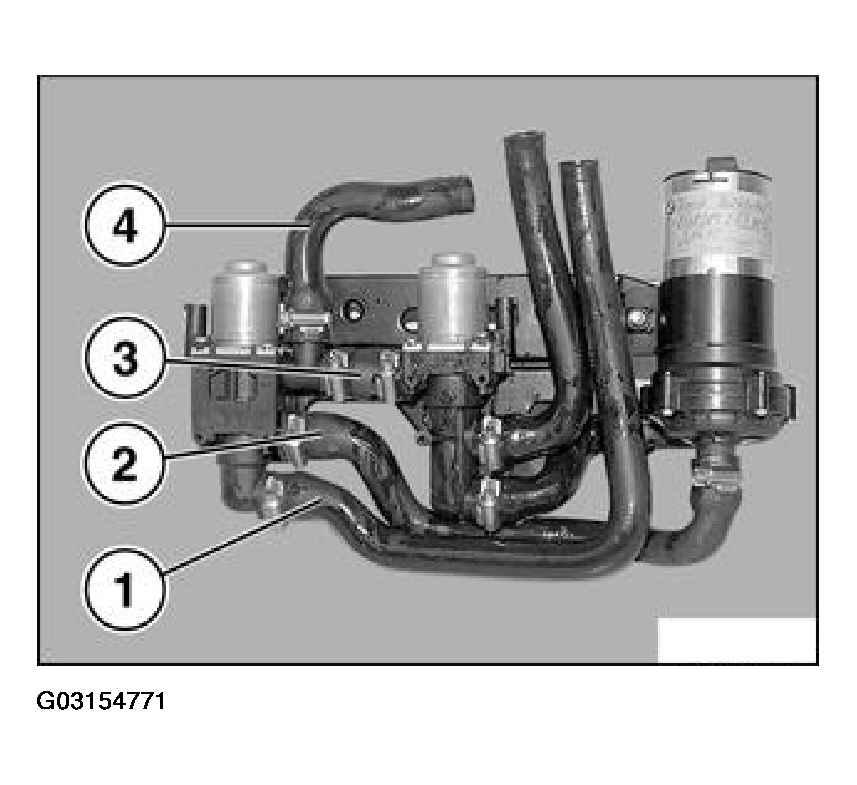

Unfasten hose clip and pull off hoses (1, 2, and 4).

Fig 6: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

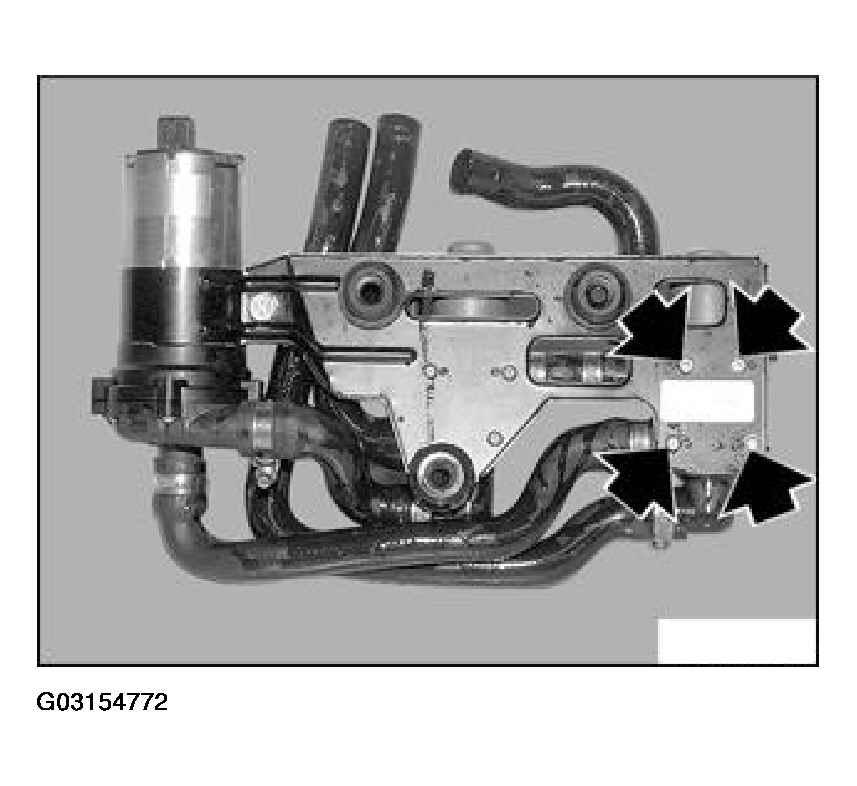

Unfasten screws and pull changeover valve sideways out of hose (3).

Fig 7: Removing Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.
