64 12 750 Removing and installing/replacing auxiliary water pump for latent heat accumulator: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove left front wheel and left wheel arch trim. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

If necessary, remove plastic cover from valve unit

Disconnect hoses (1), unfasten hose clip (2) and pull off hoses.

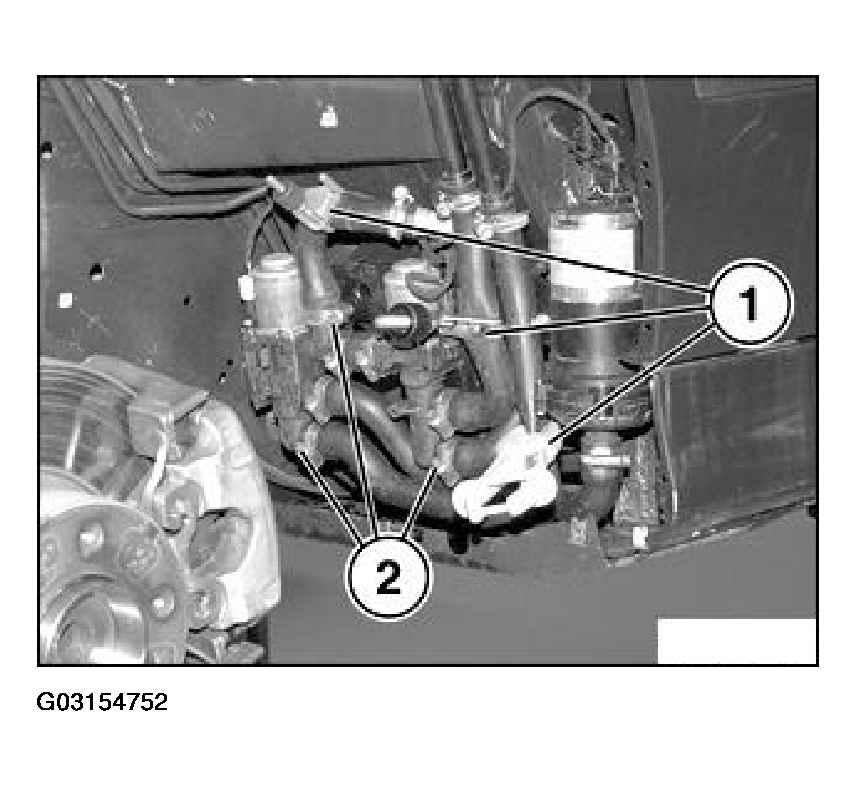

Fig 1: Releasing Hose Clip And Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

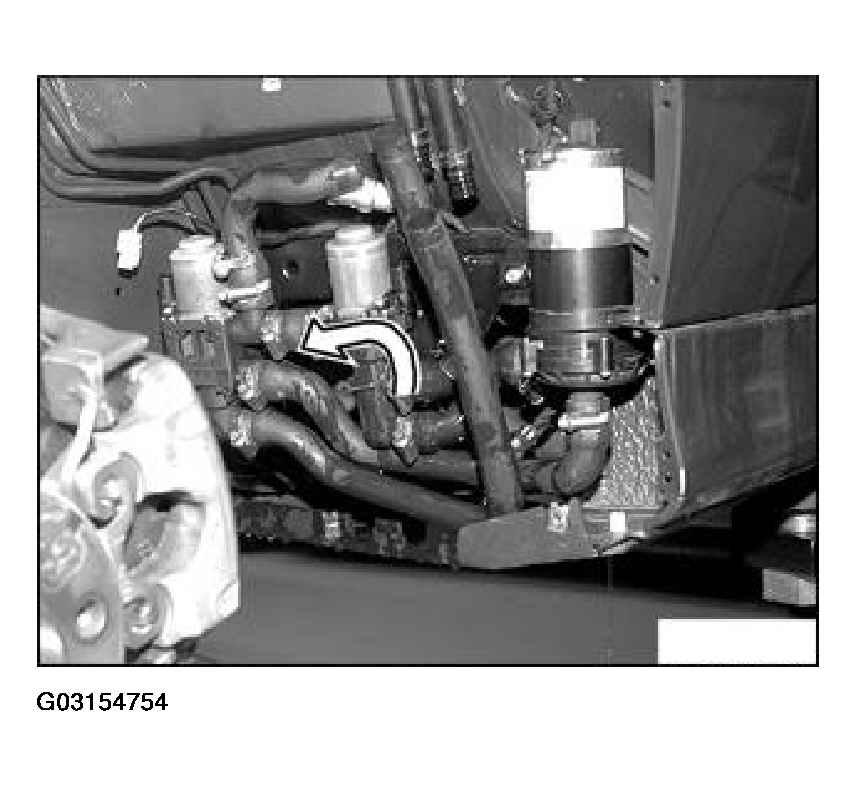

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Slide valve unit upwards and lift forwards to remove.

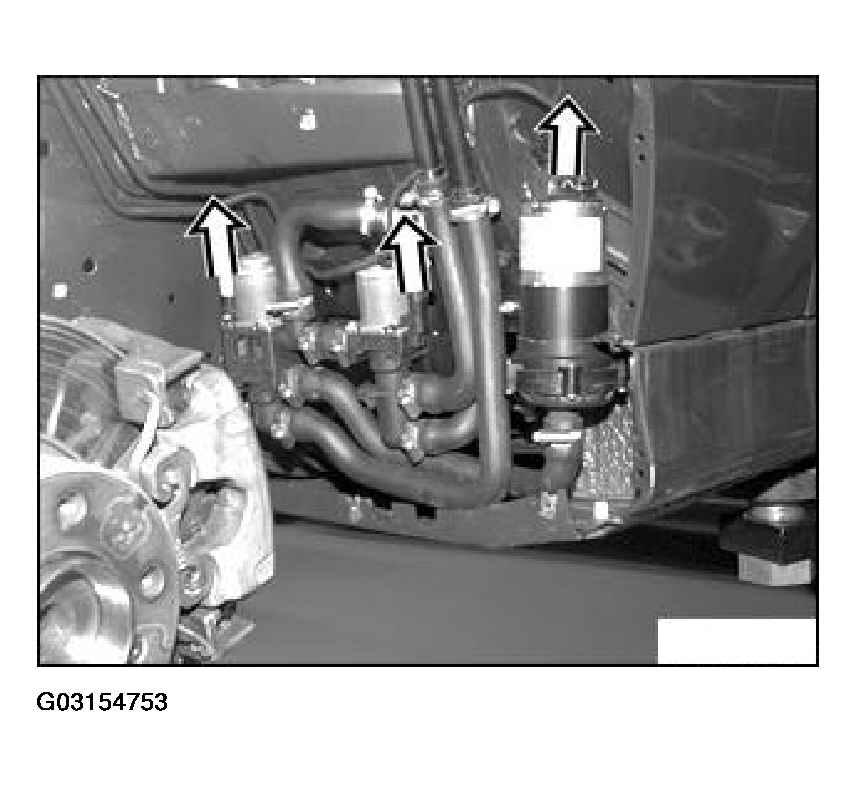

Fig 3: Removing Valve Unit

Courtesy of BMW OF NORTH AMERICA, INC.
