64 12 650 Removing and installing / replacing receiver/Telestart of independent heating

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Installation location E38: on wheel arch, left.

Partially remove backrest or rest side section for rear seat.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be reinitialized after replacement.

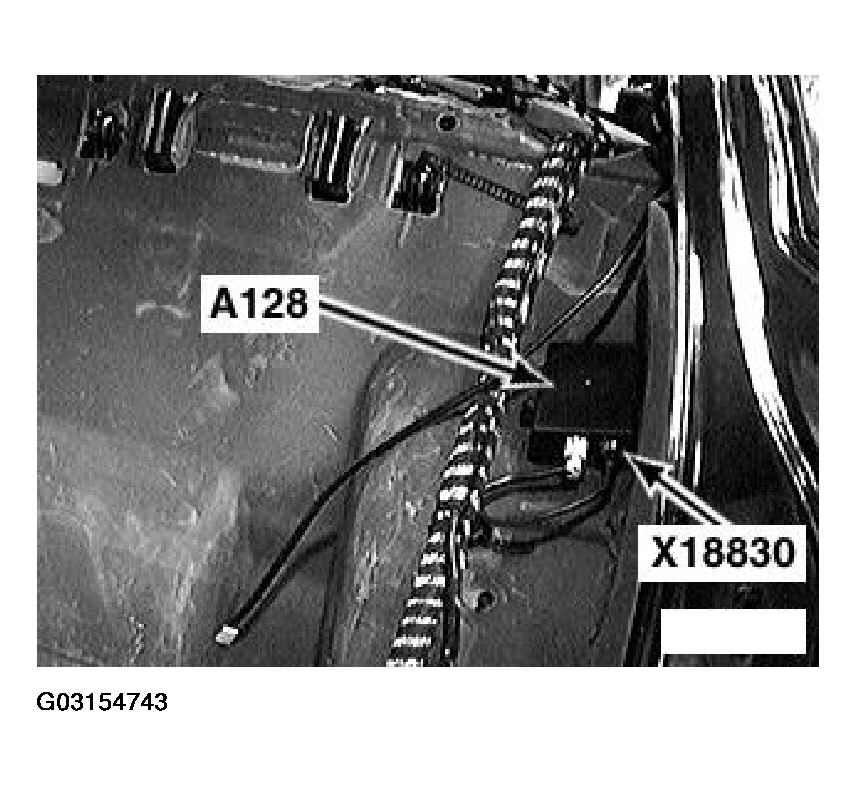

Fig 1: Removing Telestart Receiver (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation location E 39 saloon/sedan: on wheel arch, right.

Partially remove backrest or rest side section for rear seat.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be reinitialized after replacement.

Installation location: on trunk floor

Remove trunk floor trim panel.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be reinitialized after replacement.

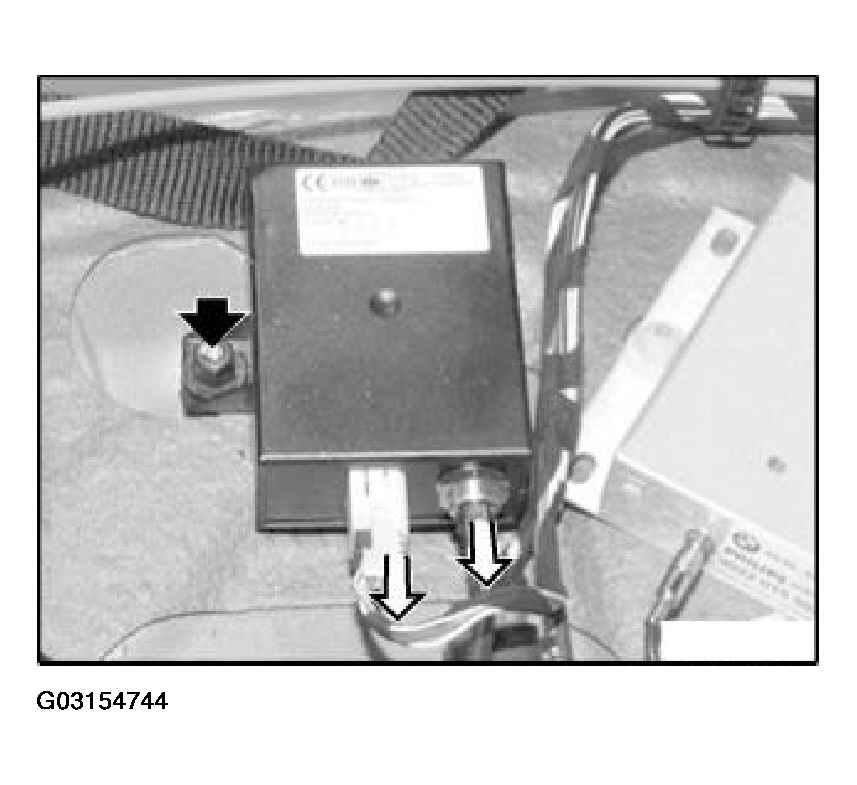

Fig 2: Removing Telestart Receiver (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Initialization

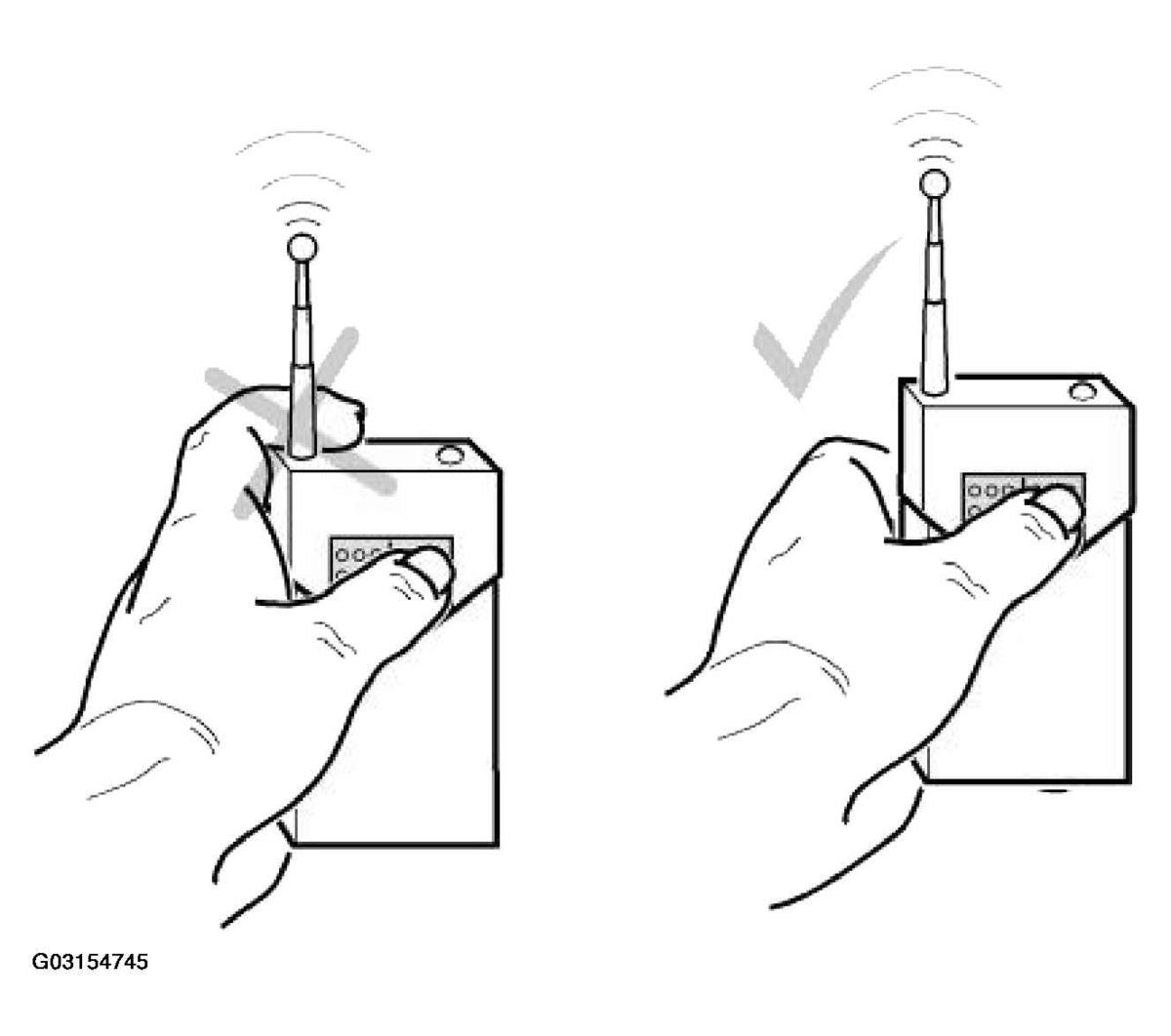

Fig 3: Identifying Telestart Receiver Proper Initialization Method

Courtesy of BMW OF NORTH AMERICA, INC.

With a new Telestart receiver both hand transmitters must be reinitialized.

Interrupt voltage supply of receiver by pulling fuse as per circuit diagram for approx. 10 seconds.
Insert fuse. Briefly actuate switch-off rocker switch of hand transmitter within next 3 seconds.
Briefly actuate switch-on rocker switch of hand transmitter within next 5 seconds.
After another 3 seconds remote control is ready for operation.
Briefly actuate switch-off rocker switch of hand transmitter; switch-on indicator lamp then no longer flashes.
Then carry out function check.
