64 12 600 Removing and installing or replacing fuel pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

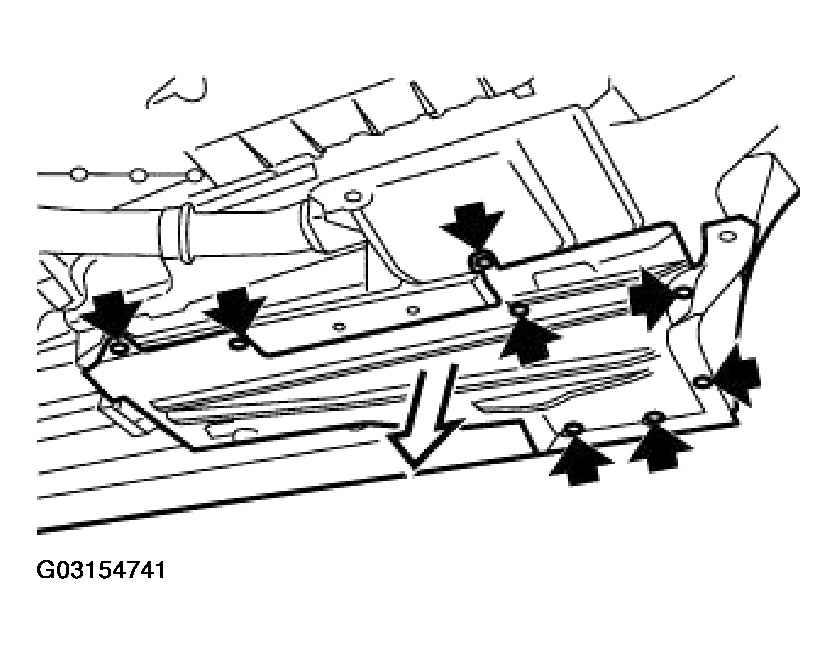

Release screws and remove floor covering.

Fig 1: Removing Floor Covering

Courtesy of BMW OF NORTH AMERICA, INC.

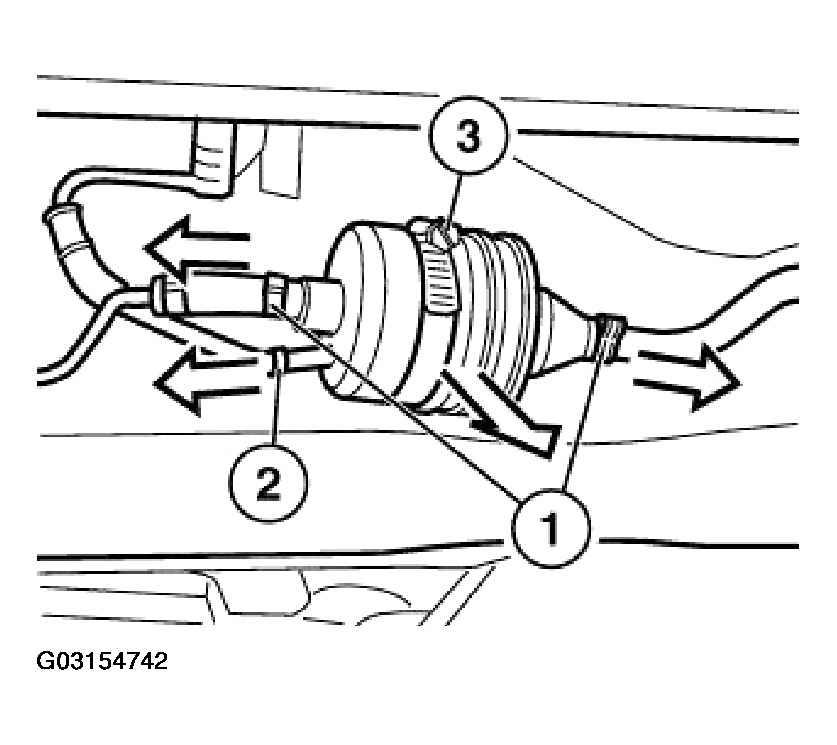

Release hose clips (1) and disconnect hoses. Pull off plug (2).

Release clip (3) and remove fuel pump.

Fig 2: Removing Fuel Pump

Courtesy of BMW OF NORTH AMERICA, INC.
