64 12 590 Removing and installing or replacing muffler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws or expansion rivets and remove floor trim.

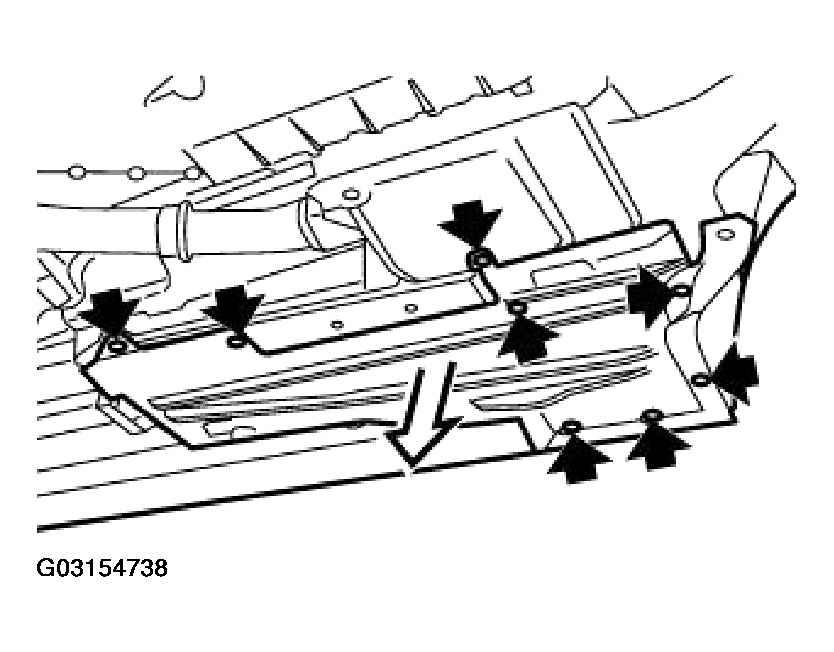

Fig 1: Removing Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Thermo Top S:

Release screws (1) and clamp (2).
Remove muffler.

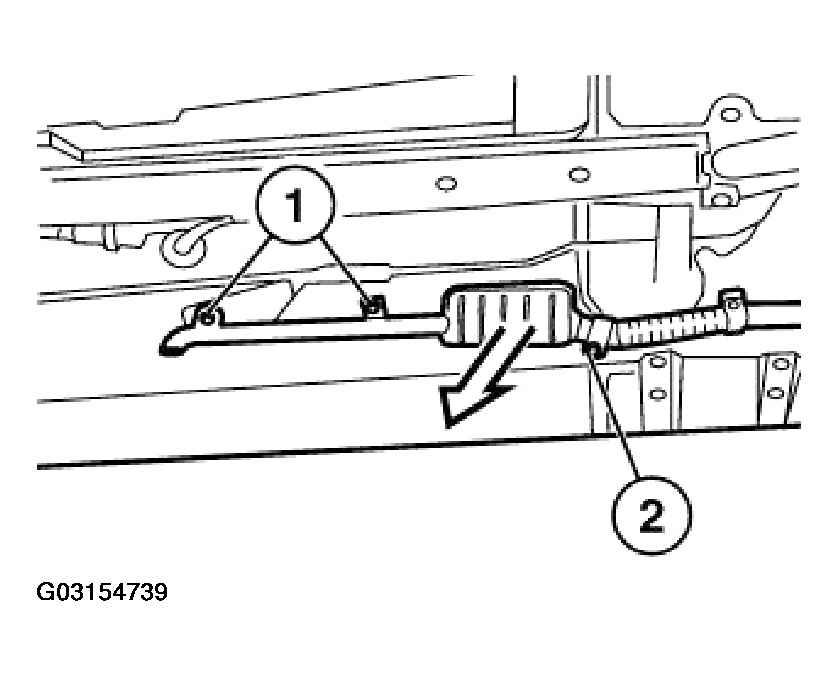

Fig 2: Removing Muffler (Thermo Top S)

Courtesy of BMW OF NORTH AMERICA, INC.

Thermo Top Z/C:

Release nut (1) and screw (2).
Remove muffler (3).

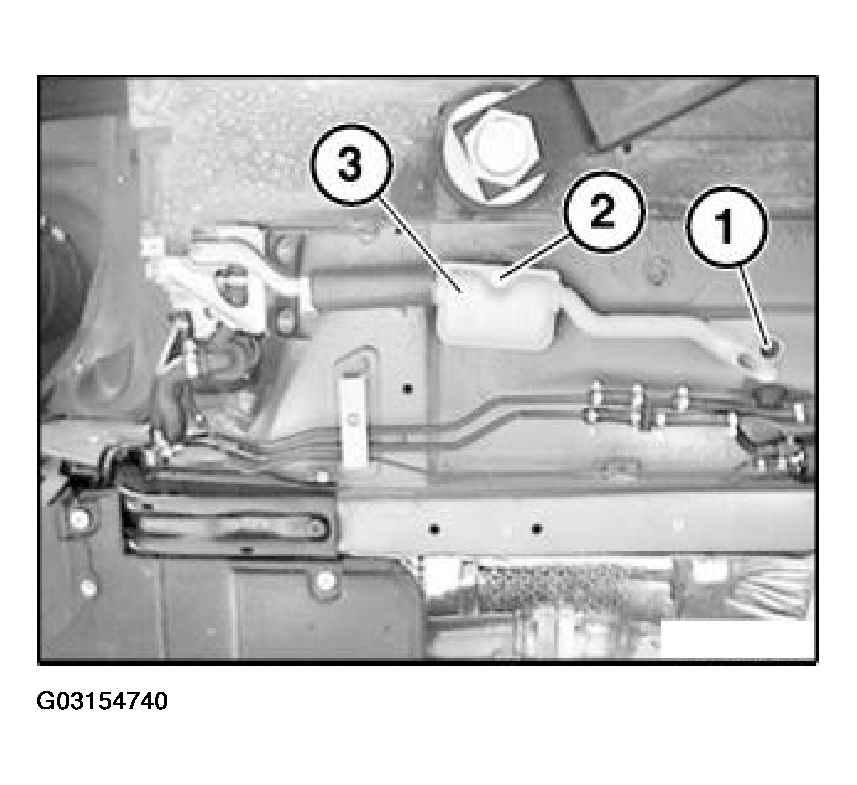

Fig 3: Removing Muffler (Thermo Top Z/C)

Courtesy of BMW OF NORTH AMERICA, INC.
