64 12 016 Replacing complete heater (Thermo Top Z/C)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete heater. See 64 12 015 Removing and installing complete heater (Thermo Top Z/C) .

Release screws and remove bracket for heater (1).

Installation:

Replace exhaust sealing ring and ensure it is correctly seated.

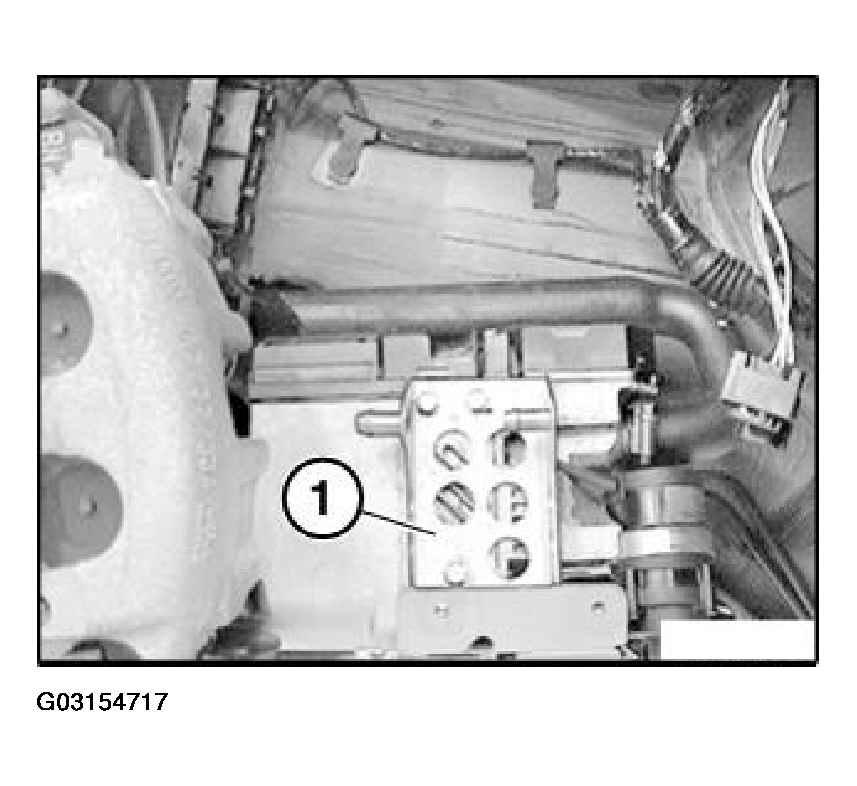

Fig 1: Removing Heater Bracket (Thermo Top Z/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out coding.
