63 21 180 Removing and installing/replacing left or right rear light (saloon/sedan) Up to 09/2000:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove socket housing for rear light.

Release nuts and remove outer rear light.

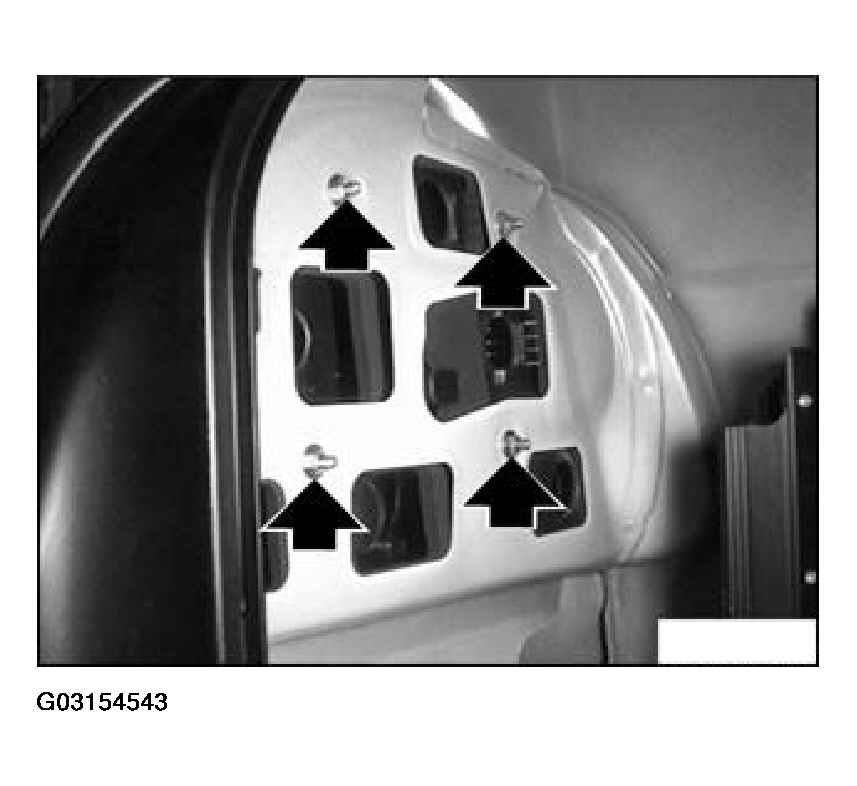

Fig 1: Releasing Nuts And Removing Outer Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Disconnect plug connection (1).

Release nuts (2) and remove outer rear light.

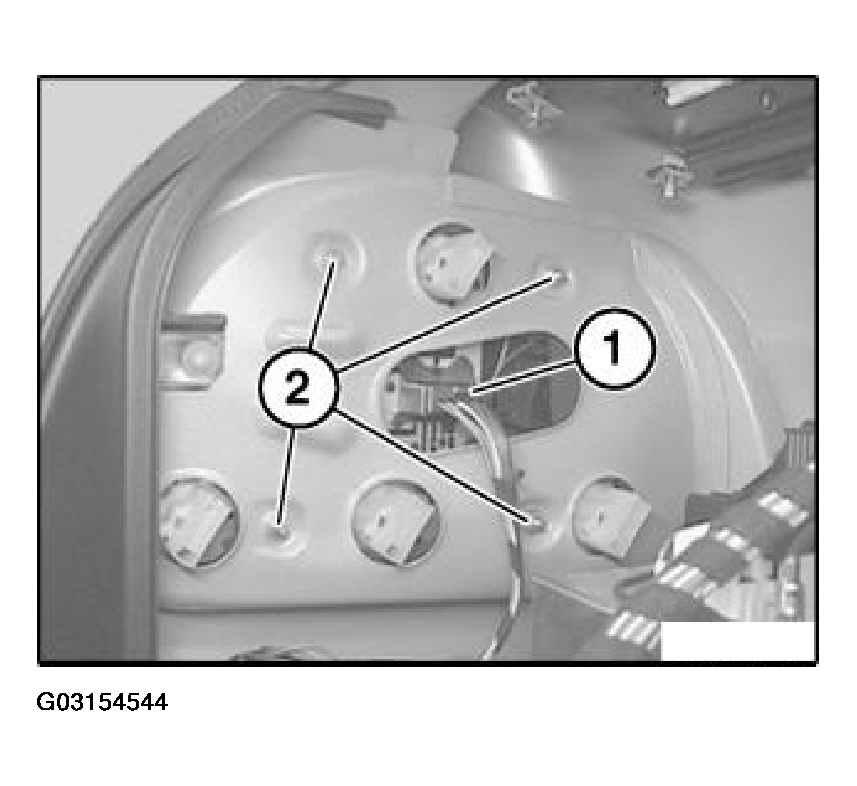

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Only replace:

If necessary, convert or replace bulbs.

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between rear light and body side panel, gap approx. 2 mm.
