63 21 055 Replacing a socket housing for rear light on left or right (saloon/sedan)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Open luggage compartment panel.

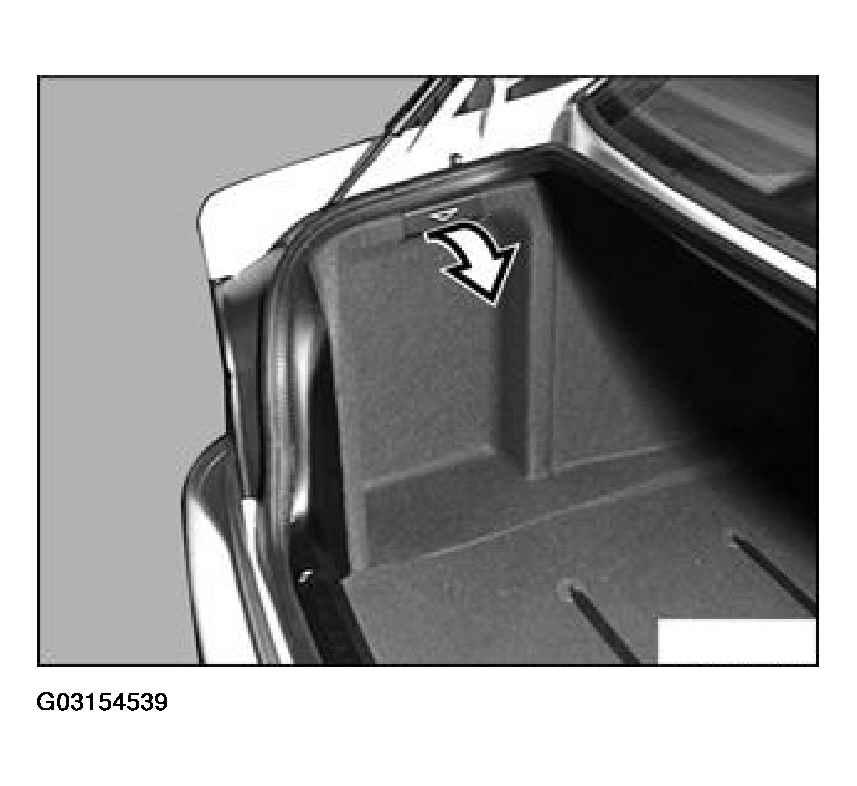

Fig 1: Opening Luggage Compartment Panel

G03154539

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 09/2000:

Turn lock in direction of arrow and remove socket housing for rear light.

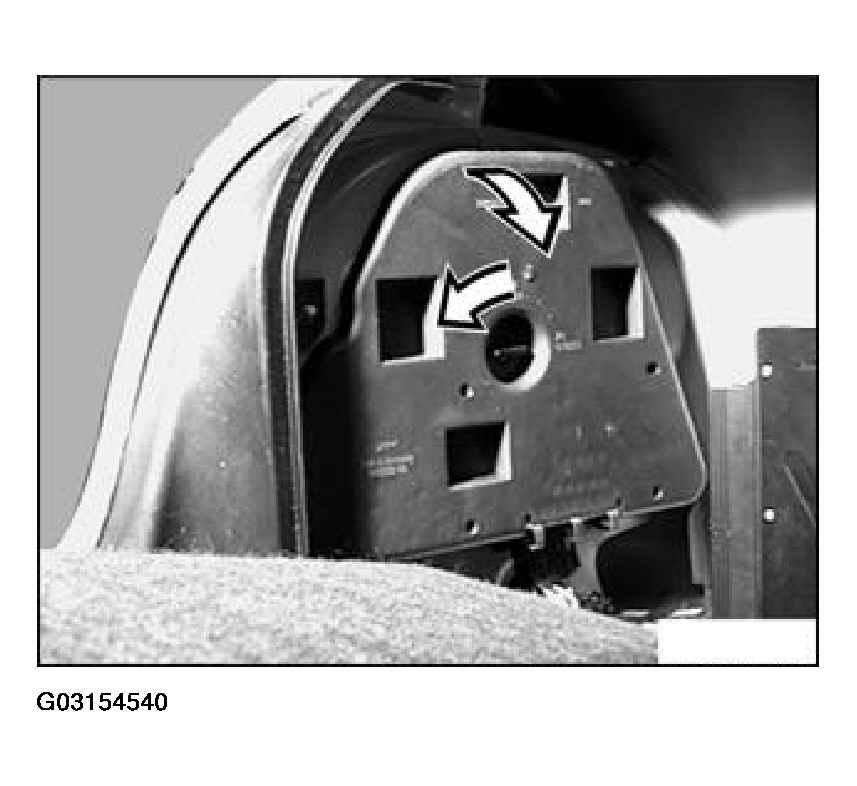

Fig 2: Turning Lock And Removing Socket Housing For Rear Light

G03154540

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

Convert bulbs, replace if necessary.

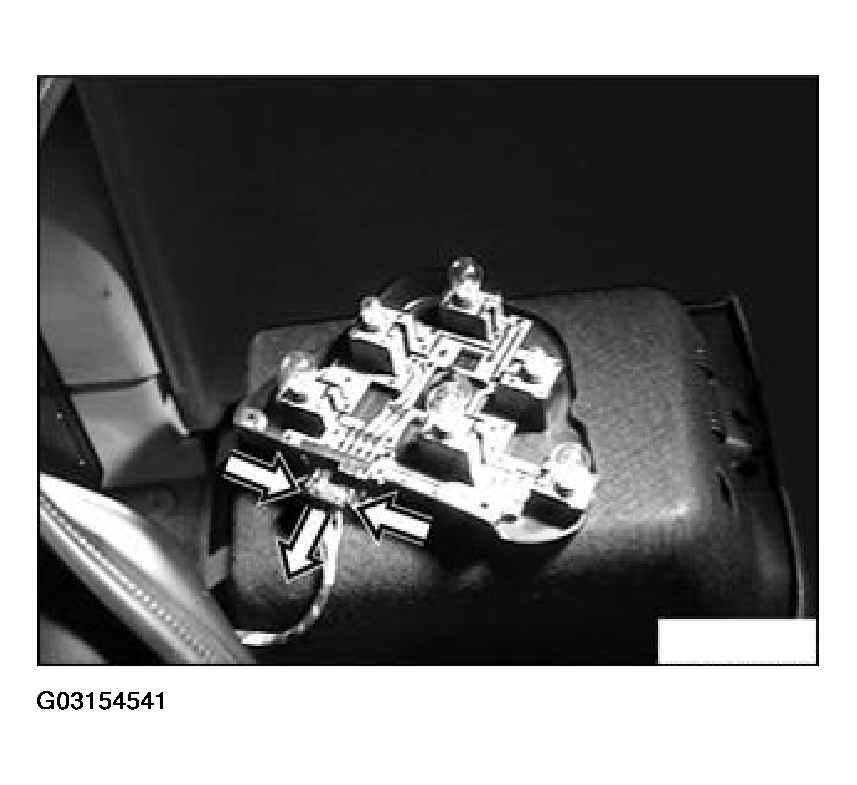

Fig 3: Disconnecting Connector

G03154541

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

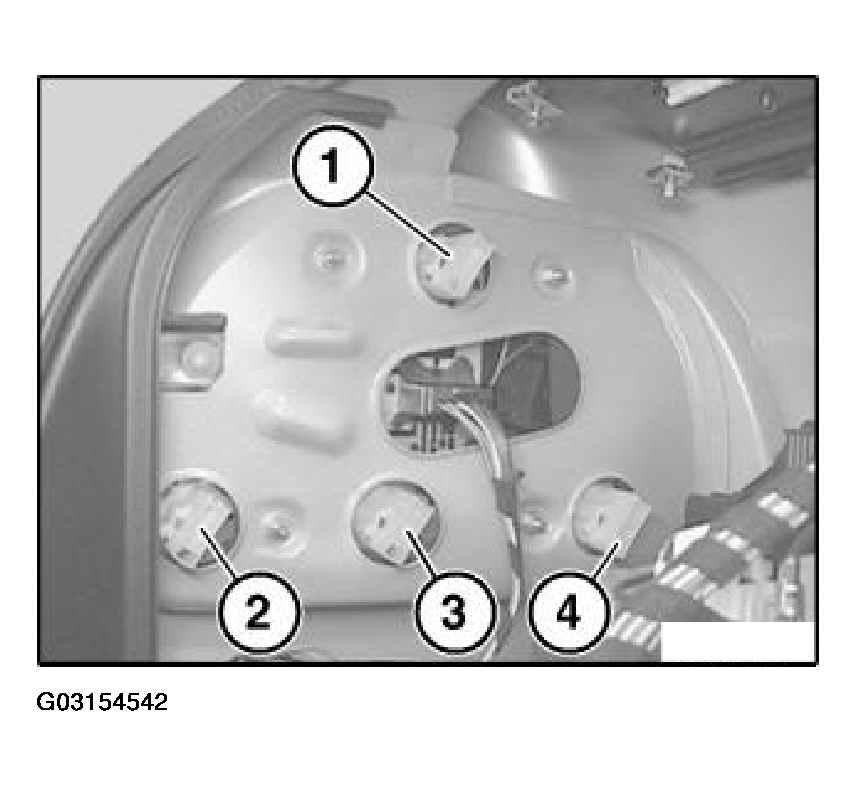

Fig 4: Identifying Socket Housing

G03154542

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing for rear light to be replaced counterclockwise and remove.

Convert bulb, replace if necessary.

NOTE:

Socket housing for turn signal lamp
Socket housing for fog warning lamp
Socket housing for reversing light
Socket housing for brake light
