63 99 451 Replacing light bulb for luggage compartment lighting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights).

Remove luggage compartment light.

Saloon/sedan:

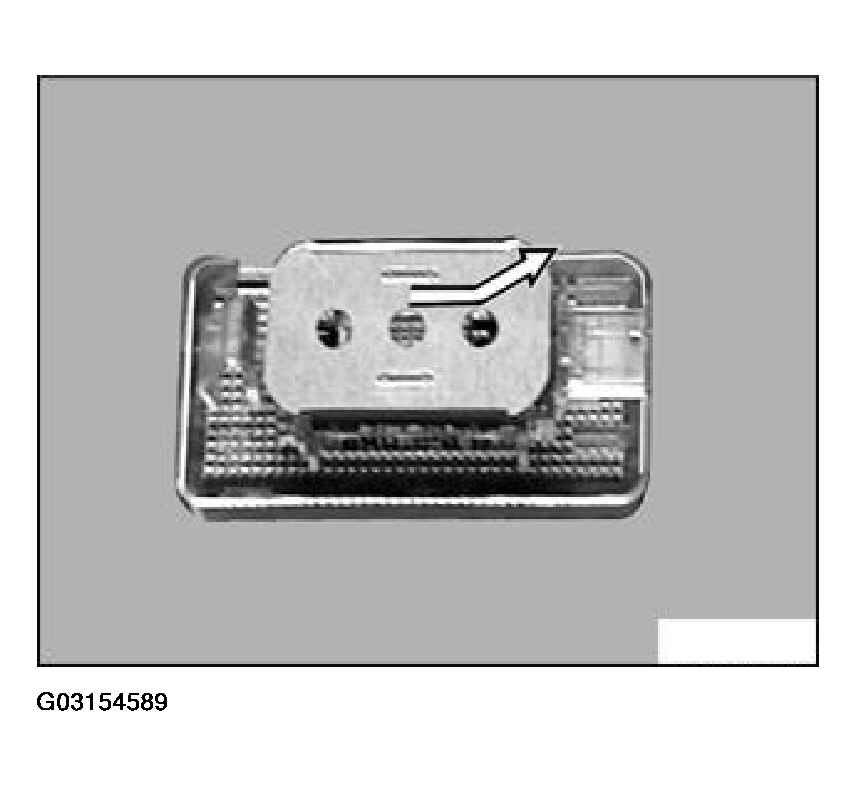

Remove cover plate in direction of arrow.

Remove bulb underneath.

Fig 1: Removing Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

touring:

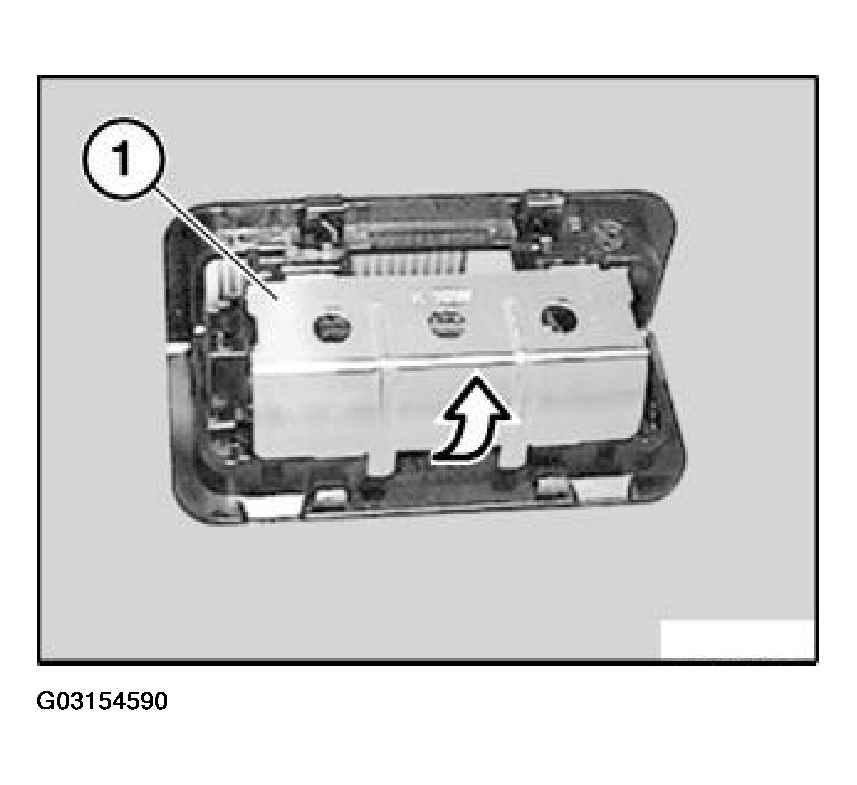

Remove cover (1) in direction of arrow.

Remove bulb underneath.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
