63 99 435 Replacing bulb(s) for left or right interior light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

All:

Remove interior light.

Saloon/sedan only:

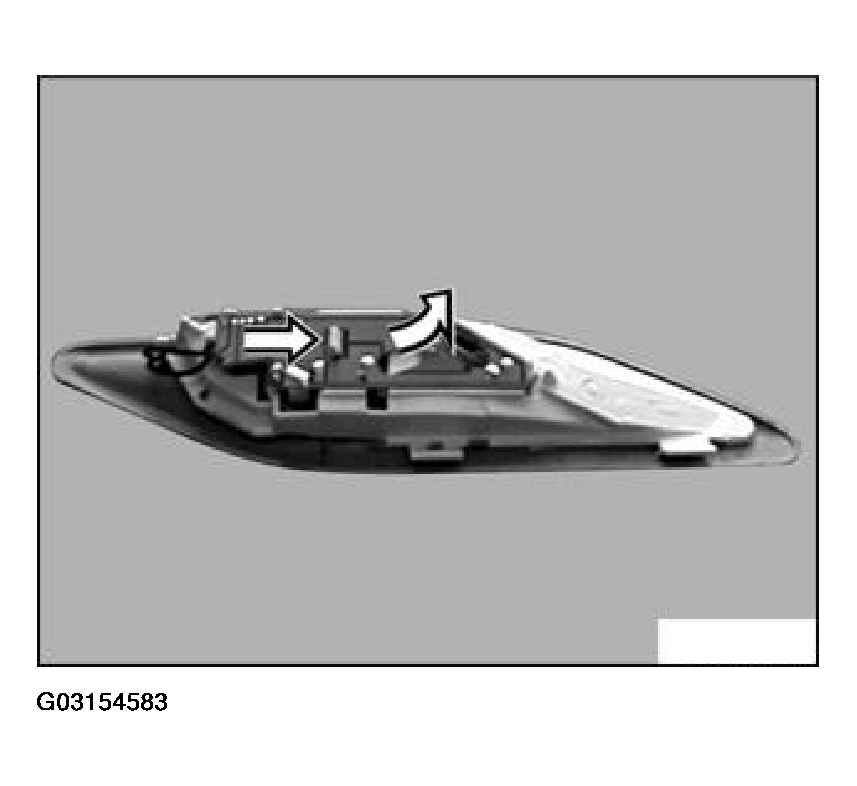

Press detent lug to one side and lever out base plate.

Fig 1: Pressing Detent Lug

Courtesy of BMW OF NORTH AMERICA, INC.

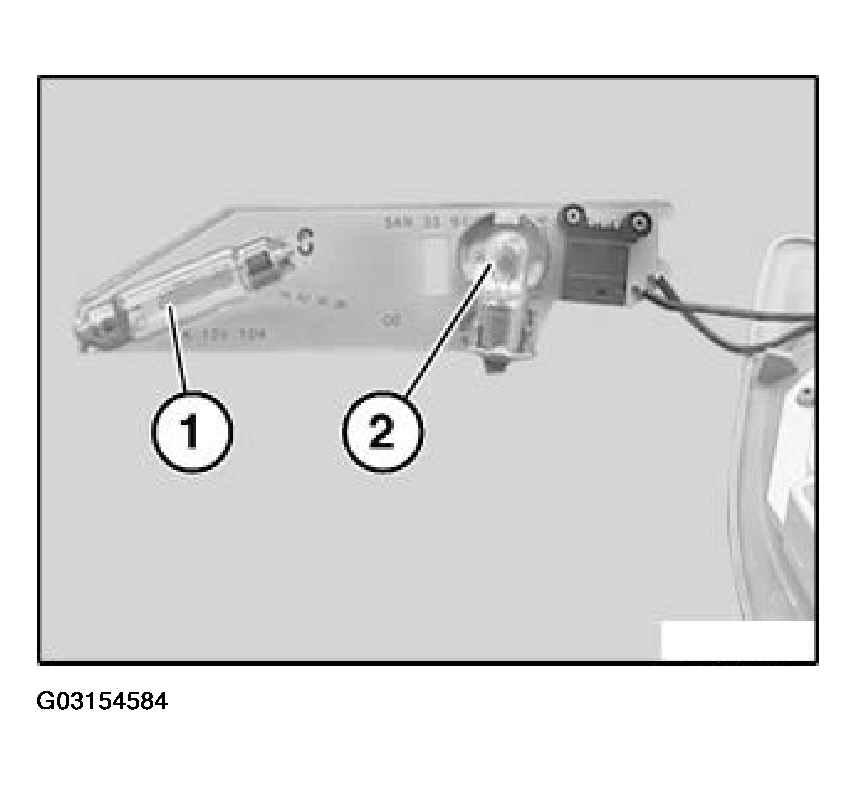

Remove bulb(s).

NOTE:

Bulb, interior light (side)
Bulb, interior reading light (rear)

Fig 2: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

touring only:

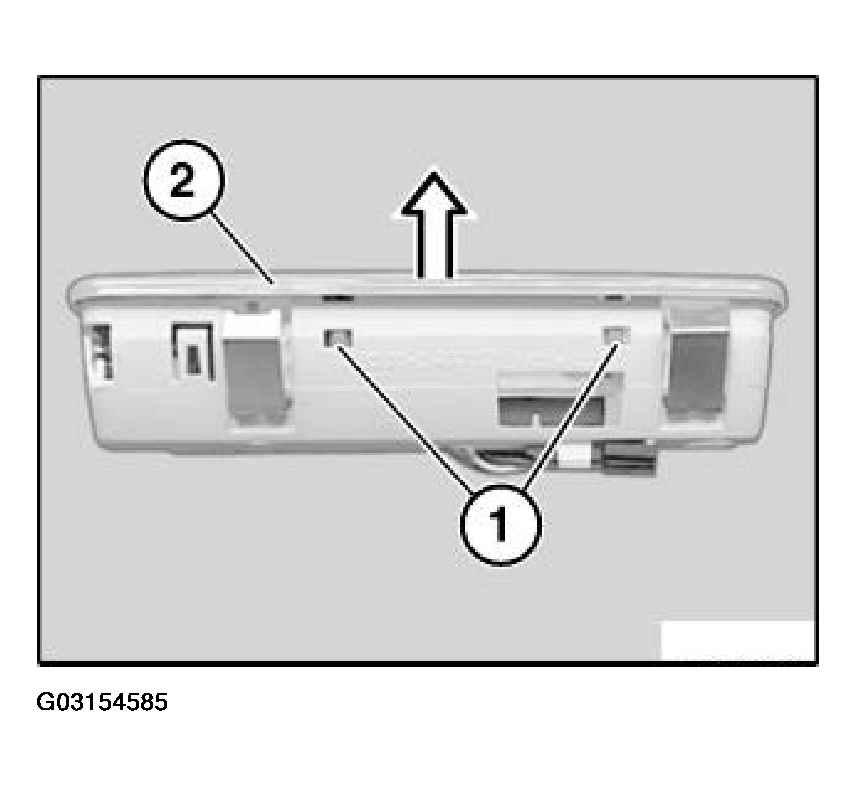

Press detent lugs (1) and clip out lens (2) in direction of arrow.

Fig 3: Pressing Detent Lugs And Clip Out Lens

Courtesy of BMW OF NORTH AMERICA, INC.

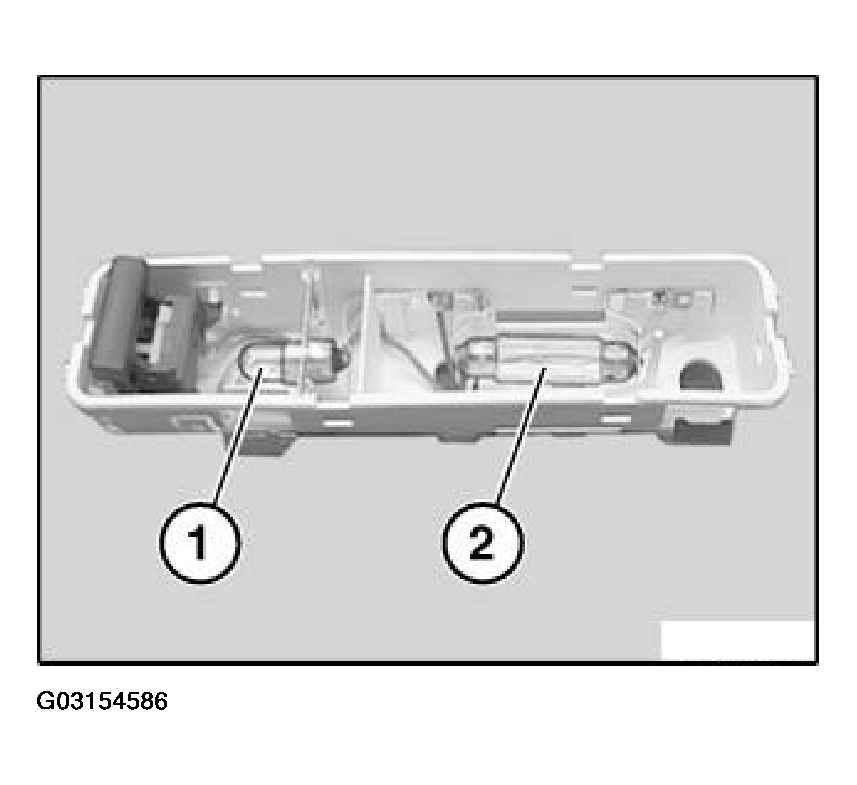

Remove bulb(s).

NOTE:

Bulb, interior reading light (rear)
Bulb, interior light (side)

Fig 4: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
