63 99 431 Replace light bulb for interior light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip lens/reflector.

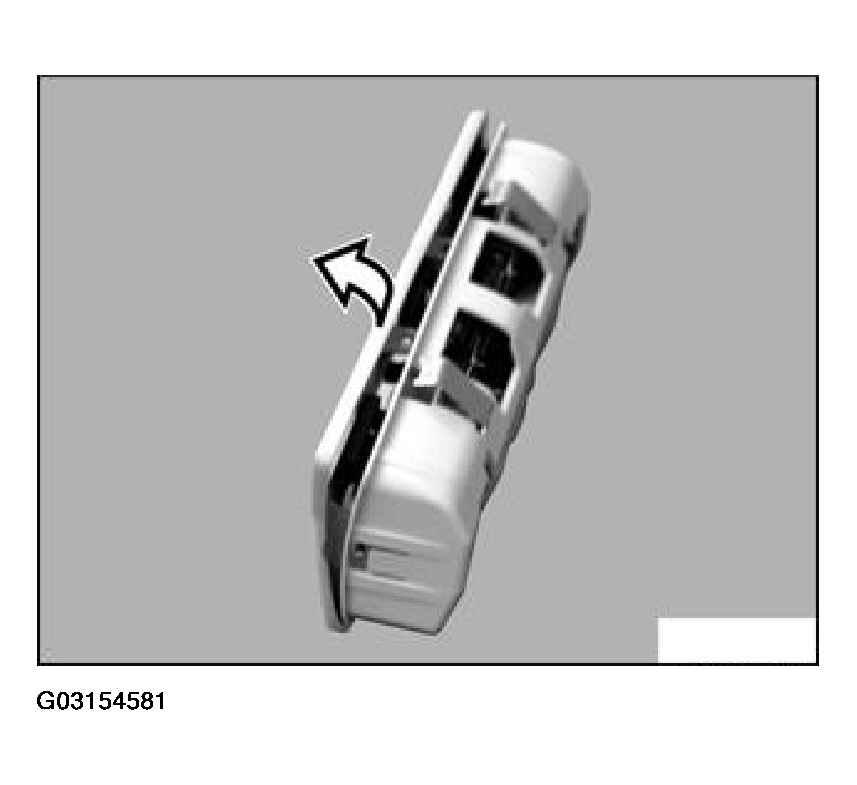

Fig 1: Uncliping Lens/Reflector

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out light bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers.
Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

Note type of bulb, refer to LIGHTS - TECHNICAL DATA - 540I (E39) .

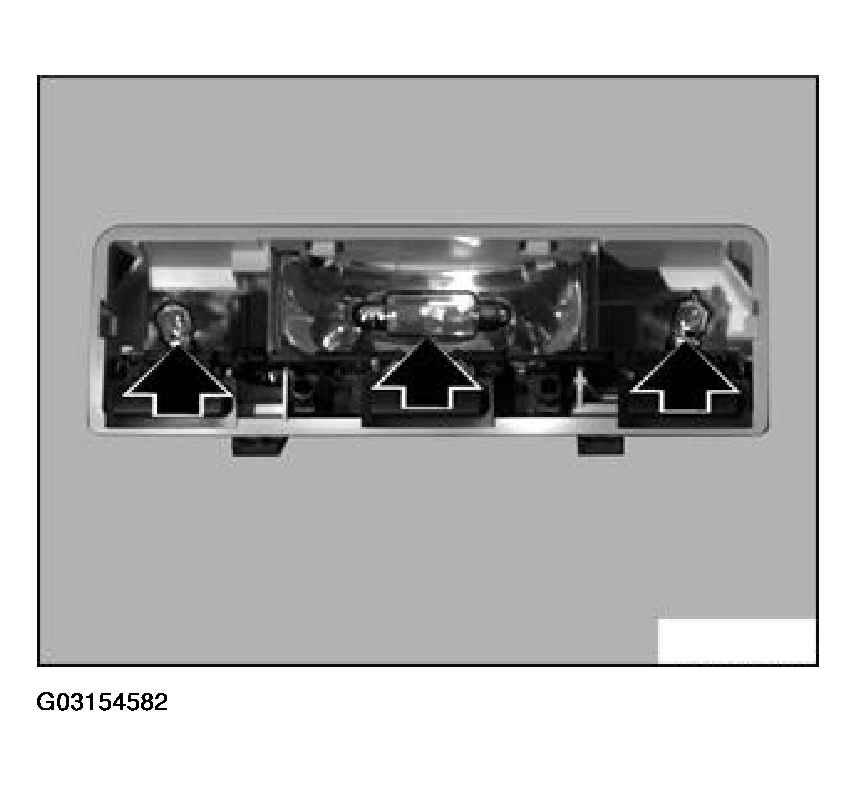

Fig 2: Lifting Out Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
