63 99 375 Replacing bulb for auxiliary brake light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Unclip cover from auxiliary brake light in luggage compartment.

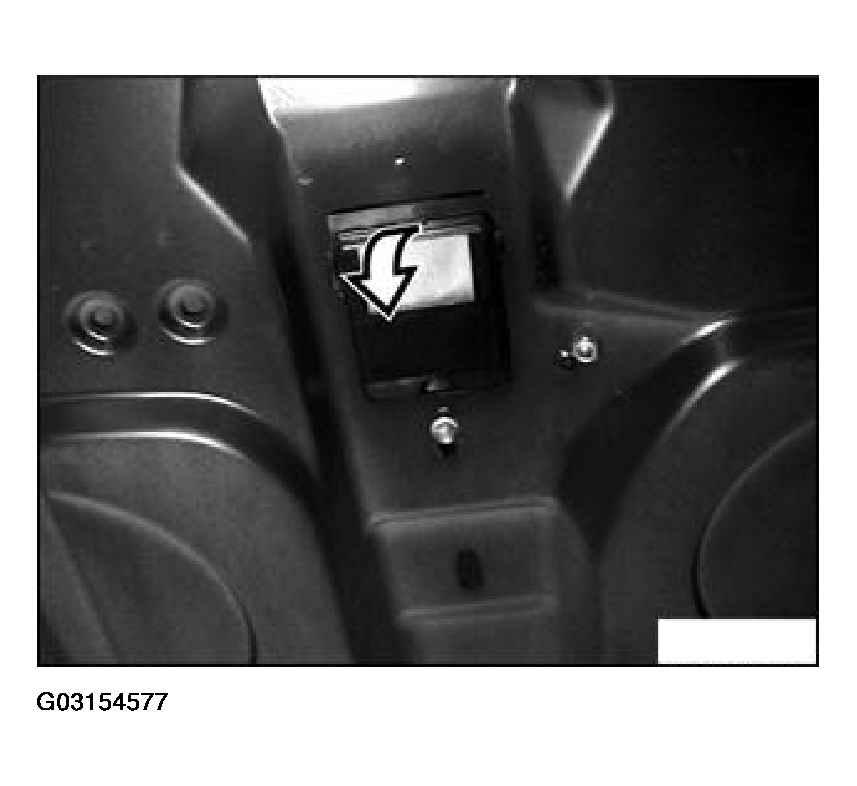

Fig 1: Uncliping Cover From Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder and remove.

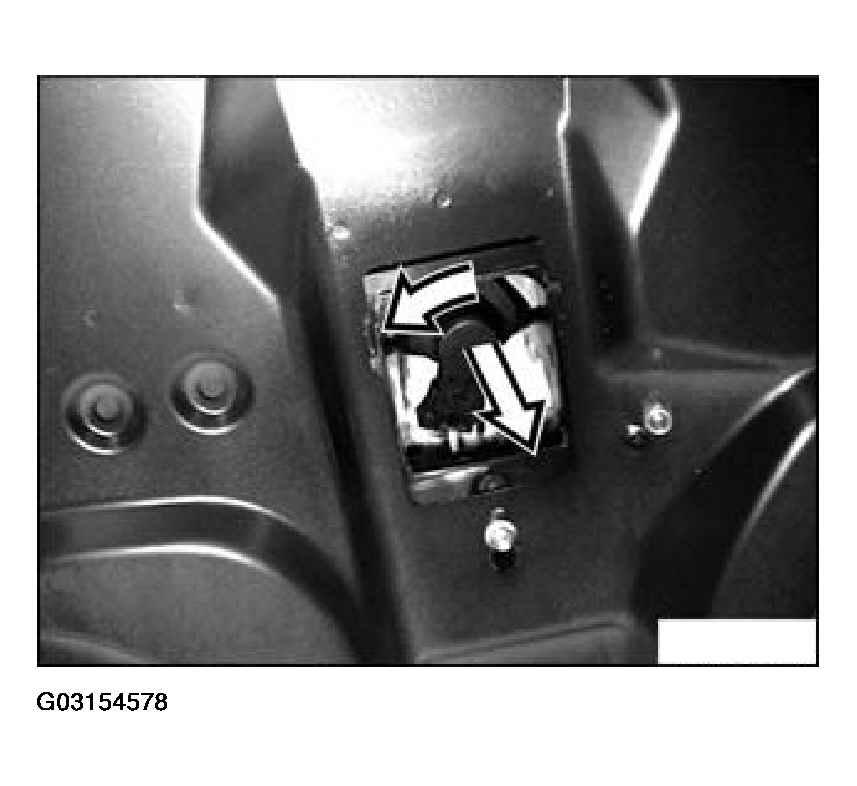

Fig 2: Identifying Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Twist bulb and remove.

Installation:

Note type of bulb.

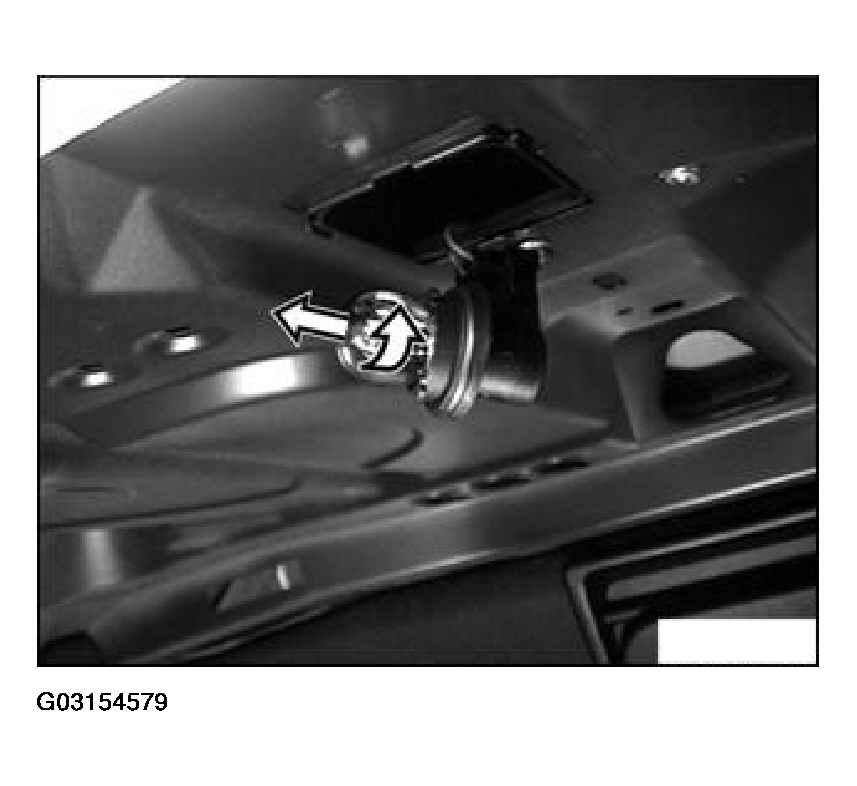

Fig 3: Twisting Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
