63 99 315 Replacing bulb(s) for left or right rear light (saloon/sedan)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Remove socket housing for rear light.

Up to 09/2000:

Twist defective light bulb and pull out to remove.

NOTE:

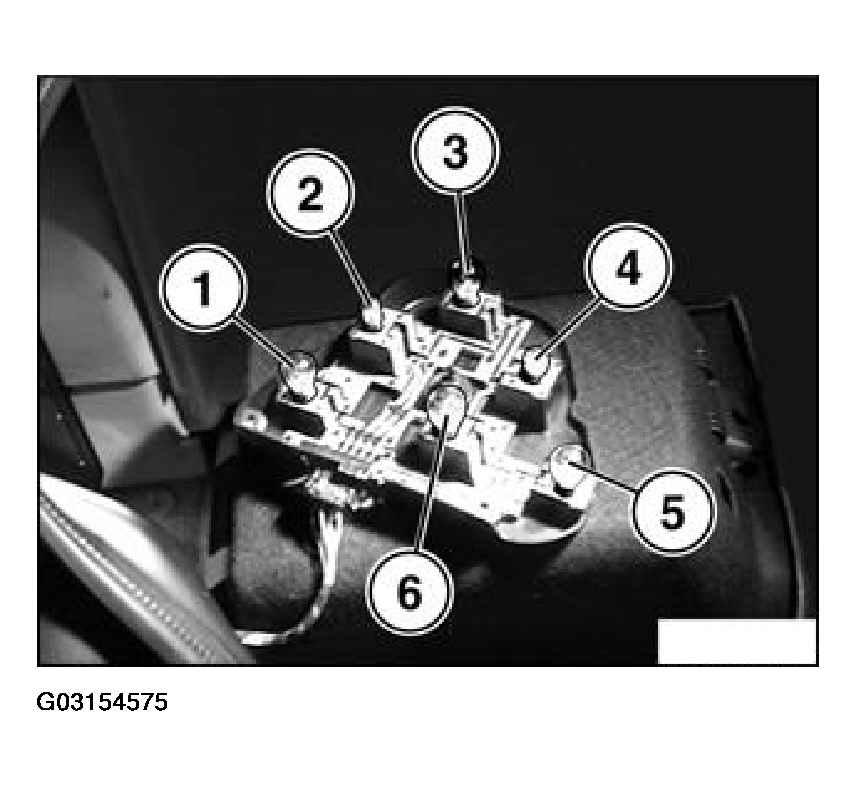

  1. Brake light
  2. Tail light
  3. Turn indicator
  4. Tail light
  5. Fog warning light
  6. Reversing light
Fig 1: Identifying Brake Light, Tail Light And Fog Warning Light
G03154575Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

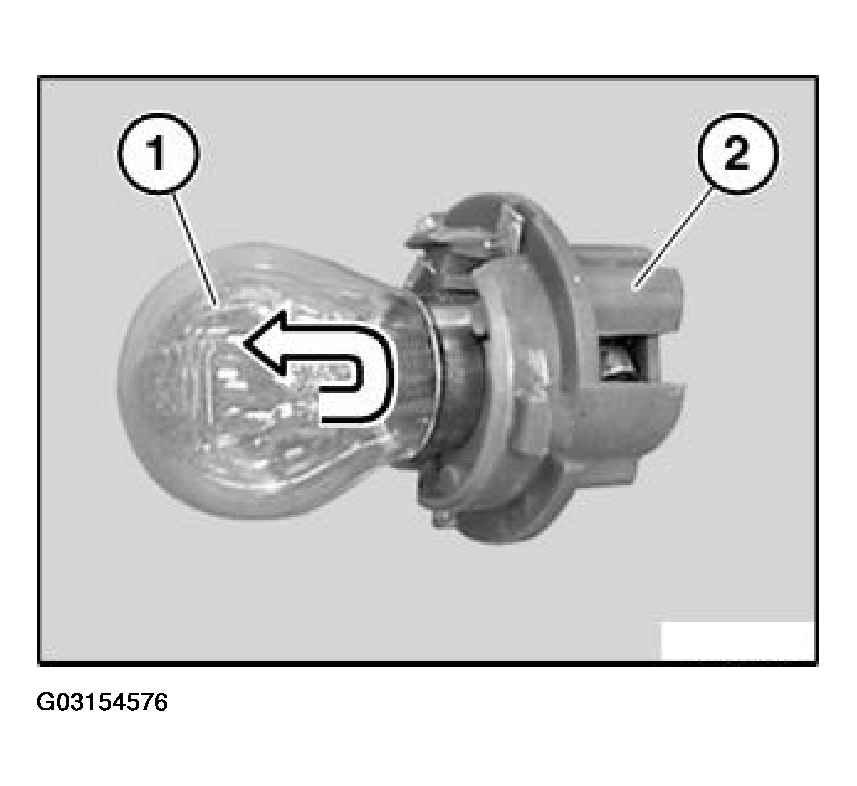

Remove faulty bulb (1) in direction of arrow from socket housing (2).

Fig 2: Removing Faulty Bulb
G03154576Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
