63 99 230 Replacing halogen bulb for left or right fog lamp (M aerodynamics package)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Remove fog lamp.

Turn bulb with holder (1) in direction of arrow and remove.

Installation:

Note type of bulb.

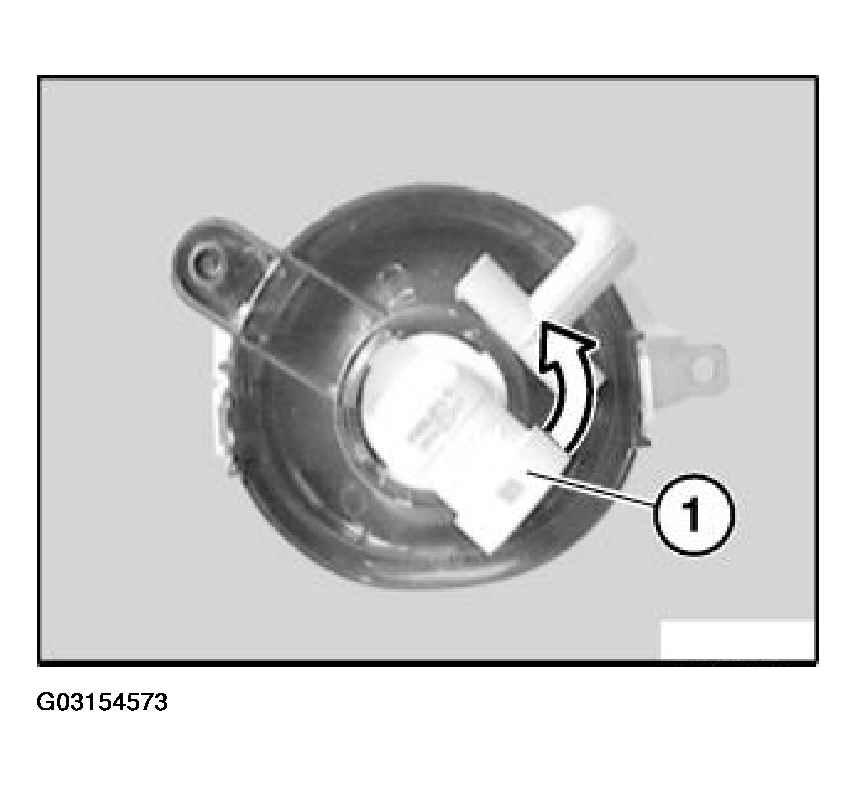

Fig 1: Turning Bulb With Holder
G03154573Courtesy of BMW OF NORTH AMERICA, INC.
