63 99 131 Replacing bulb for left or right front parking light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .
Up to 09/2000:

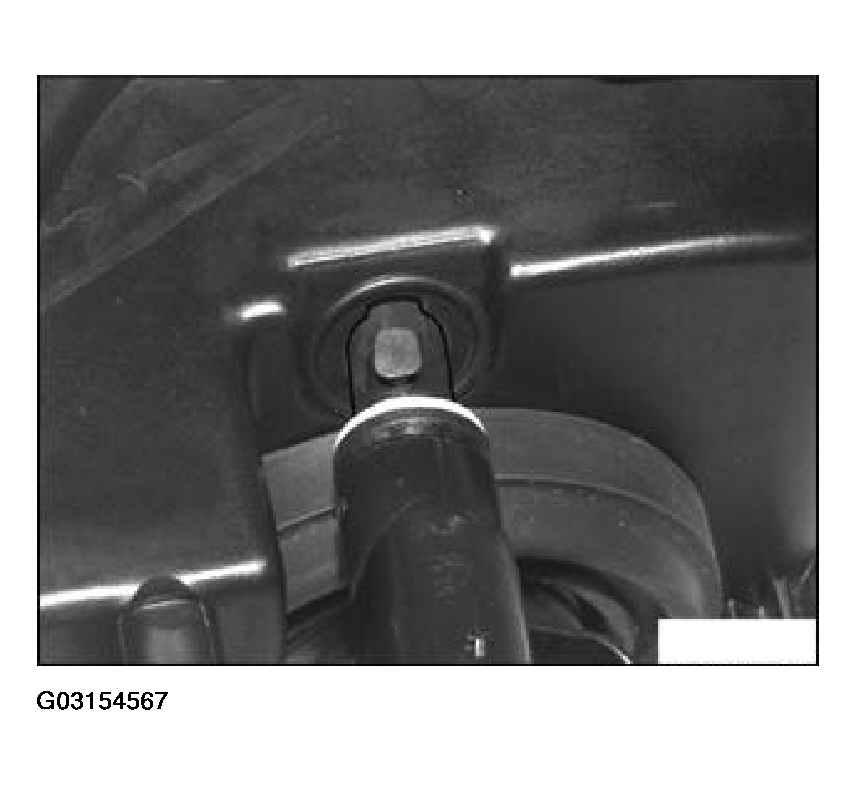

Twist lamp socket and remove.
Installation:
Insert bulb holder with large lug facing upwards into housing.

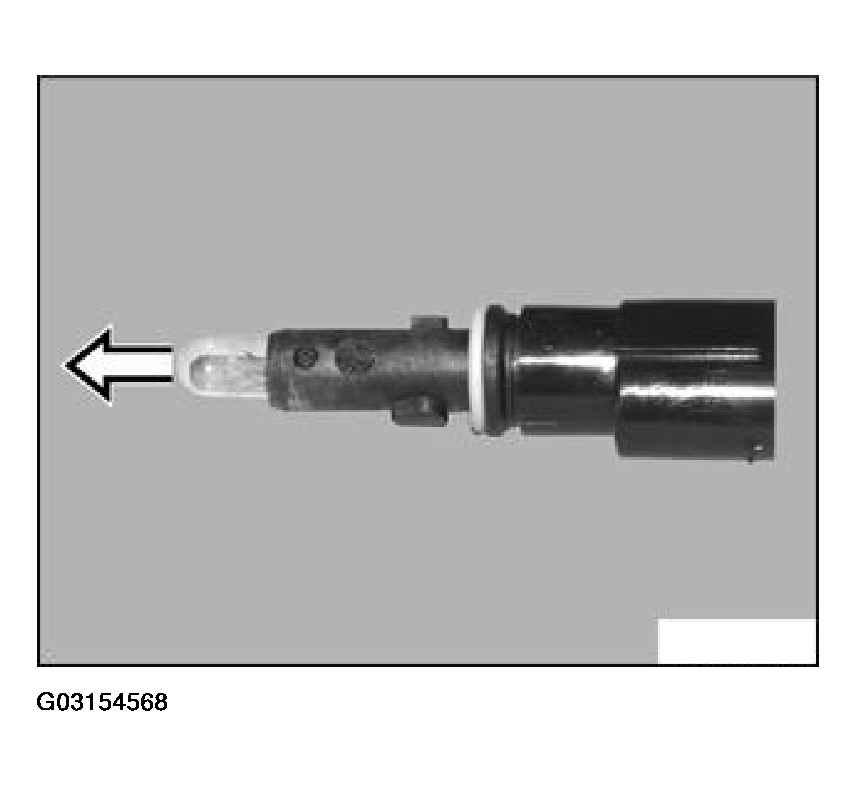

Remove bulb from bulb holder.
From 09/2000:

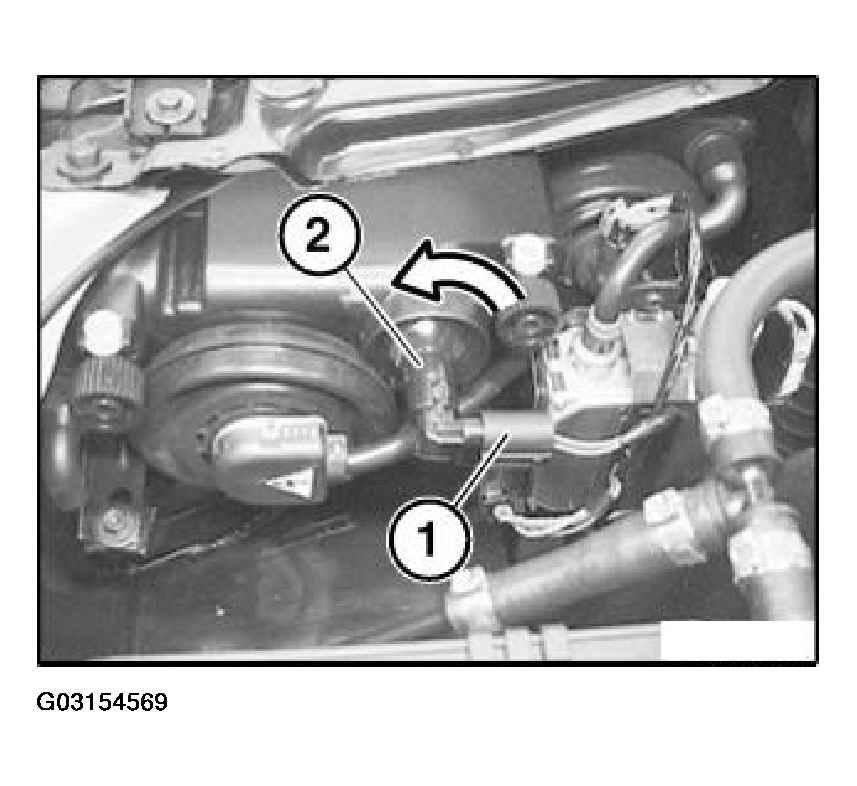

Disconnect plug connection (1).
Turn holder with side-marker lamp (2) in direction of arrow and remove.
Installation:
Make sure sealing ring is correctly seated.
All:
Installation:
Note type of bulb.
