63 99 076 Replacing left lamp for left Xenon light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for replacing light bulbs (exterior lights).

Up to 09/2000:

Release screws and lay ignition unit to one side.

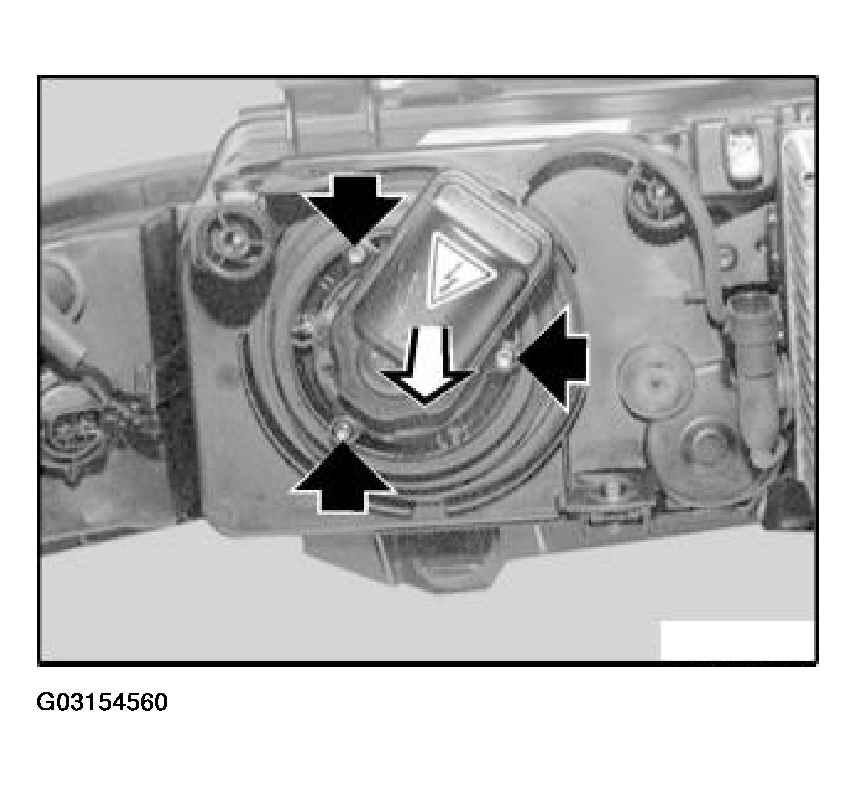

Fig 1: Releasing Screws And Lay Ignition Unit

G03154560

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lamp.

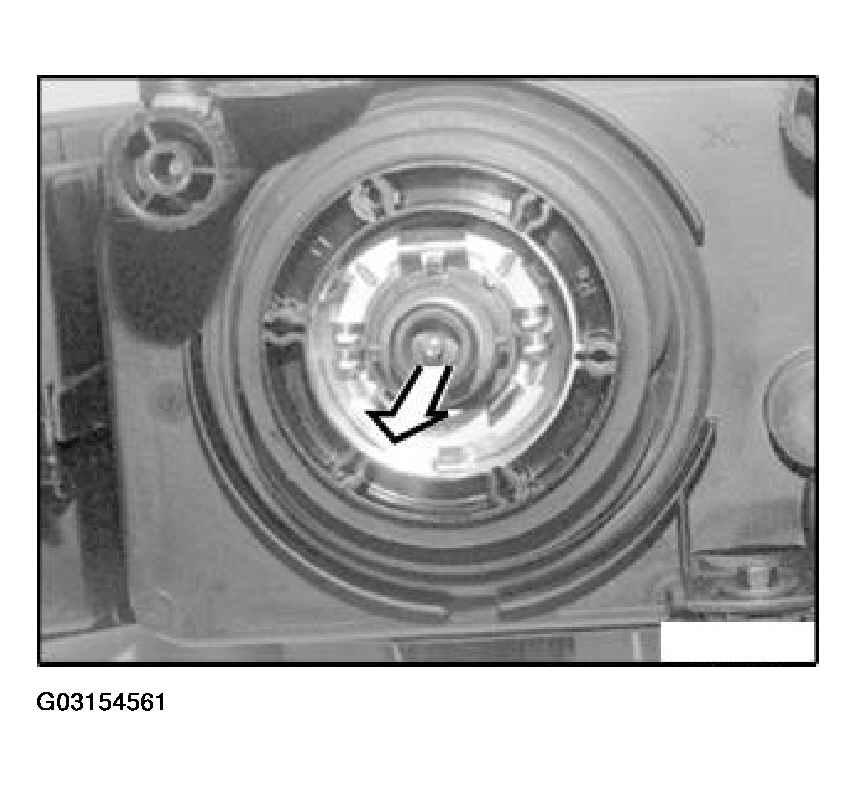

Fig 2: Removing Lamp

G03154561

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Turn plug connection (1) approx. 30° to left and disconnect.

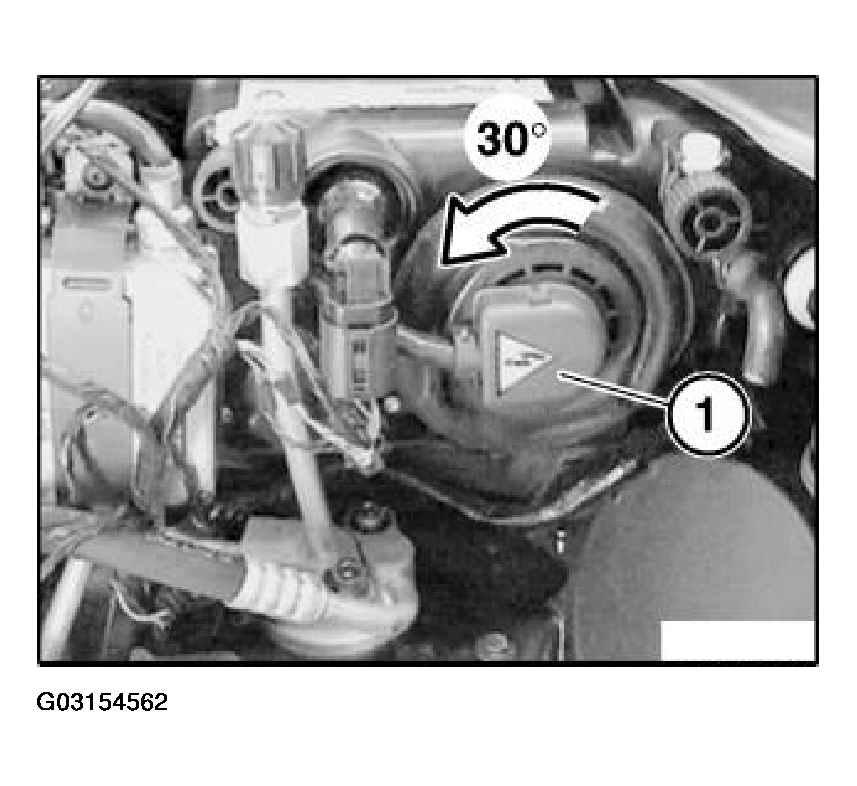

Fig 3: Turning Plug Connection

G03154562

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1).

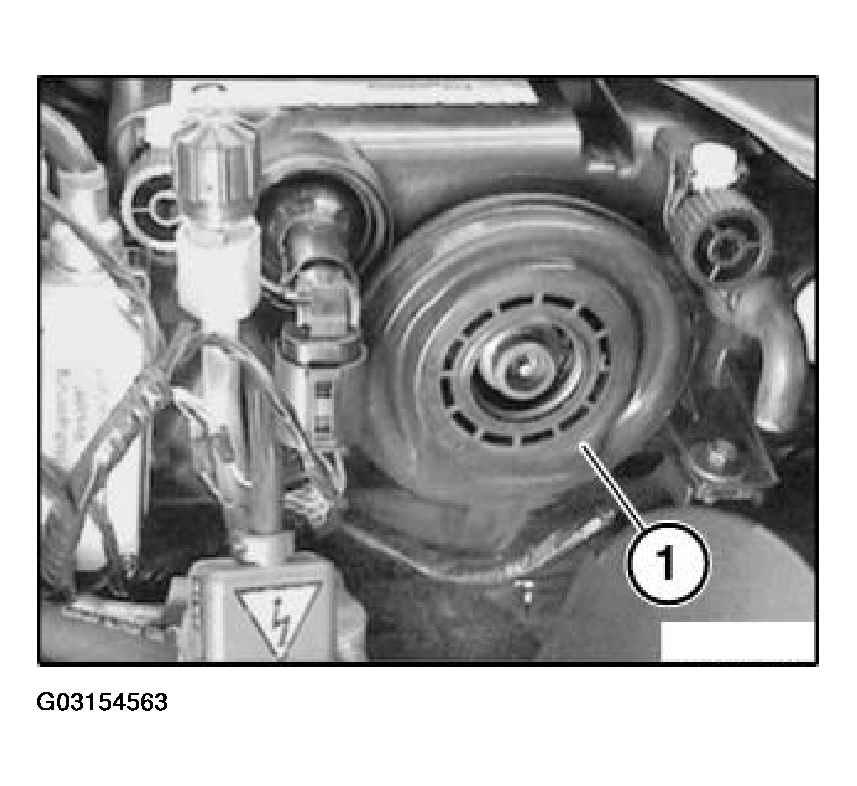

Fig 4: Detaching Cover

G03154563

Courtesy of BMW OF NORTH AMERICA, INC.

Turn fastener (1) to left.

Withdraw xenon lamp with fastener.

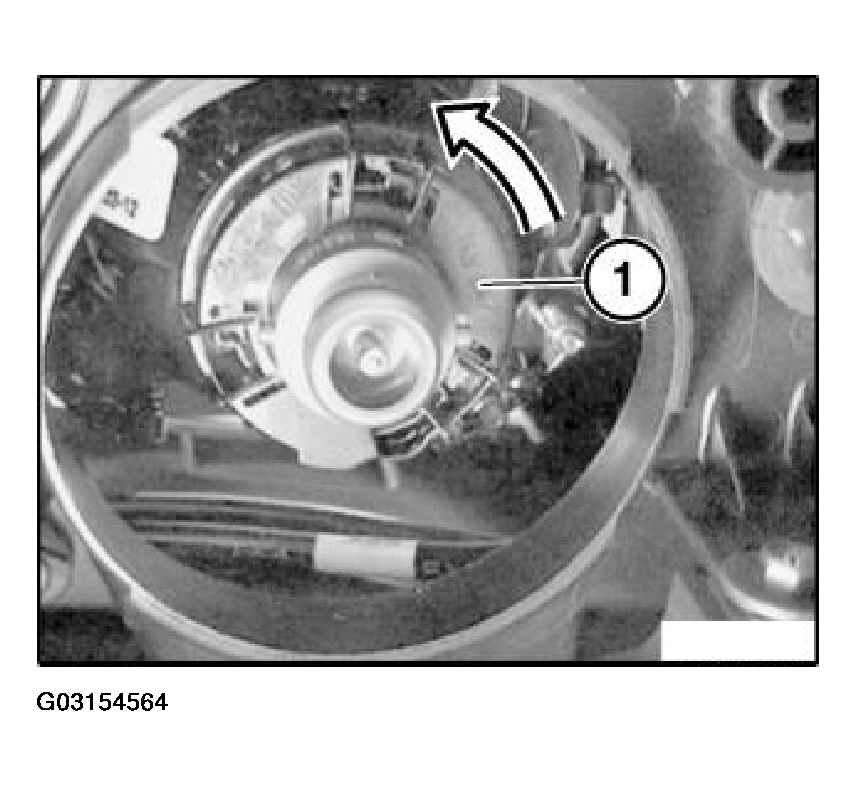

Fig 5: Turning Fastener

G03154564

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install xenon lamp (1) in position.

Fit fastener and lock by turning to right.

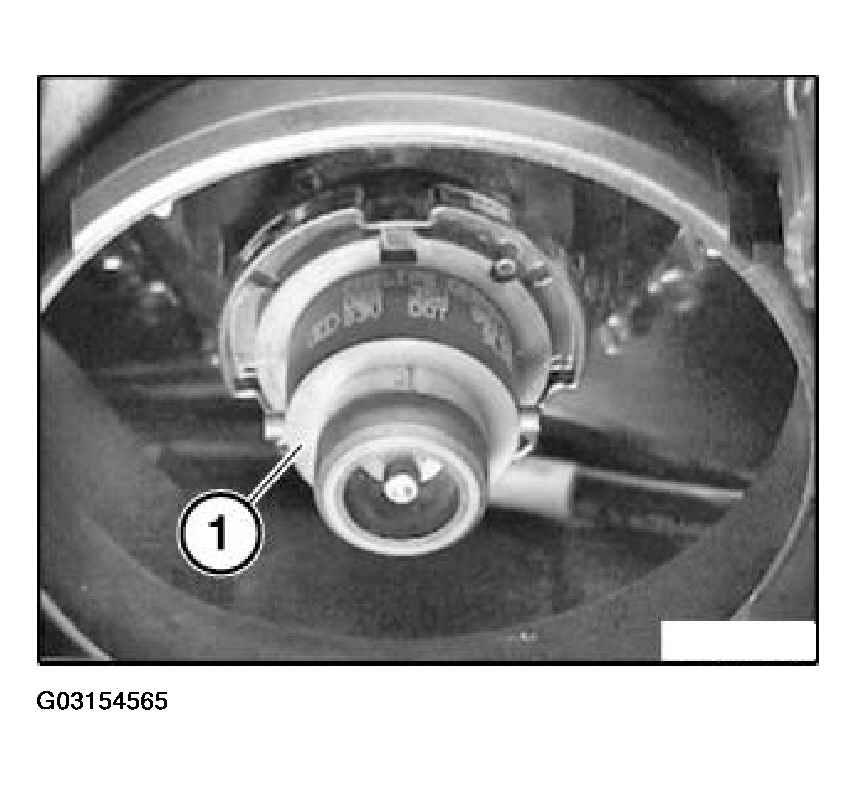

Fig 6: Installing Xenon Lamp

G03154565

Courtesy of BMW OF NORTH AMERICA, INC.
