63 26 000 Removing and installing/replacing left or right license plate light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Lever out license plate light (1) with special tool 64 1 020 as illustrated and remove.

Disconnect plug connection underneath.

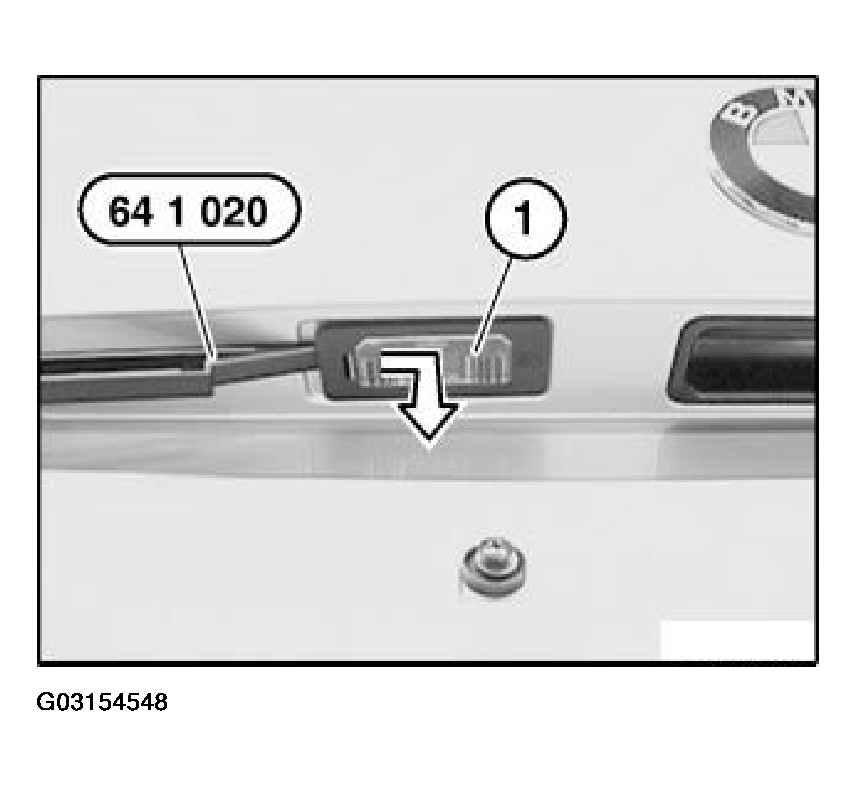

Fig 1: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
