63 10 014 Adjusting fog lamps

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Observe test preconditions for adjusting headlights.

Up to 08/2000:

Adjust fog lamp at adjusting screw through opening in grating.

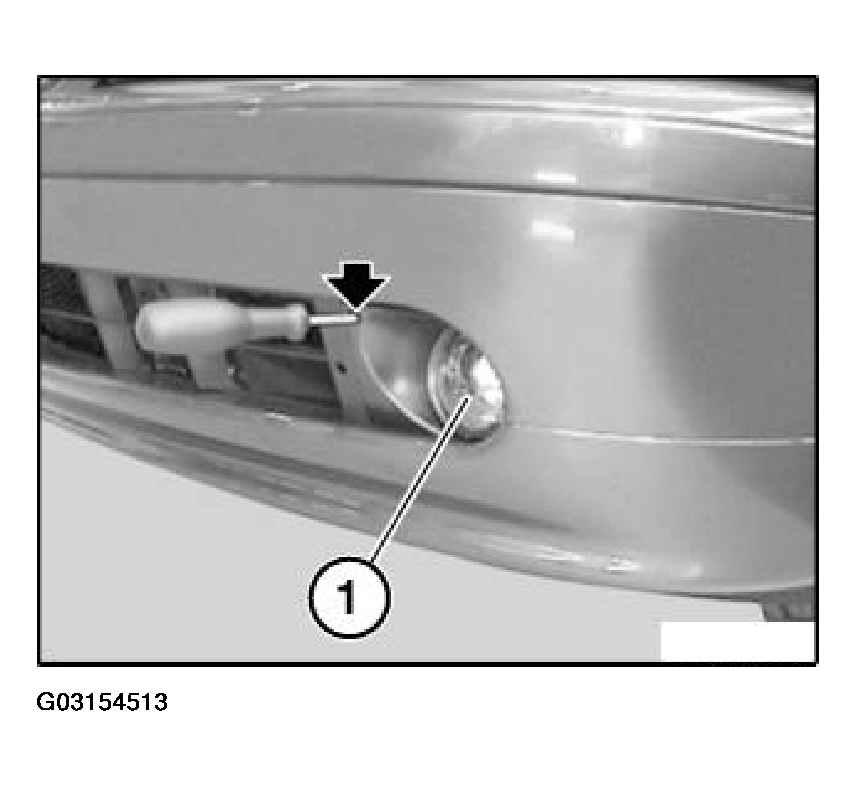

Fig 1: Adjusting Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Adjust fog lamp (1) at adjusting screw behind trim.

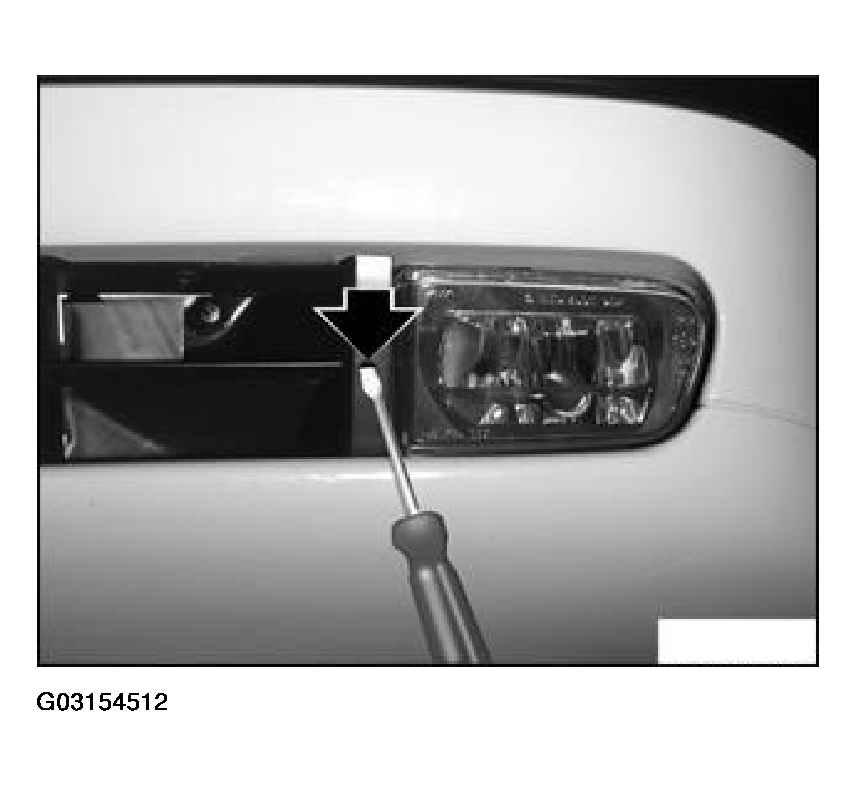

Fig 2: Adjusting Fog Lamp At Adjusting Screw Behind Trim

Courtesy of BMW OF NORTH AMERICA, INC.

M aerodynamics package:

If necessary, unclip trim.

Adjust fog lamp (1) at adjusting screw (2).

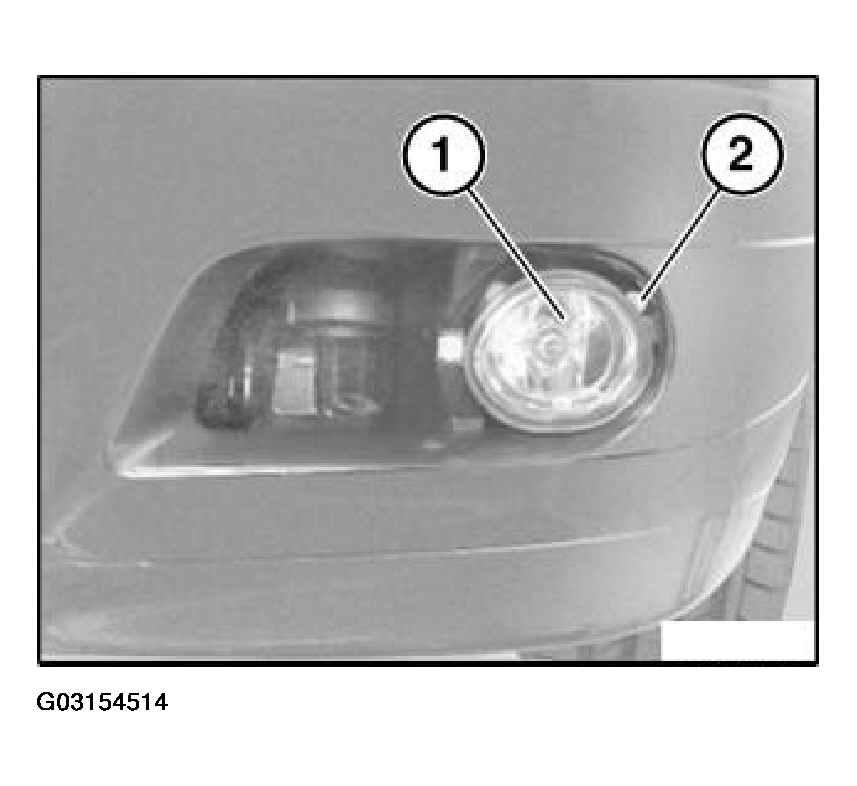

Fig 3: Adjusting Fog Lamp At Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
