63 10 004 Adjusting headlights
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Note test requirements for headlight vertical aim adjustment, refer to 63 10... Test Requirements For Headlight Vertical Aim Adjustment .

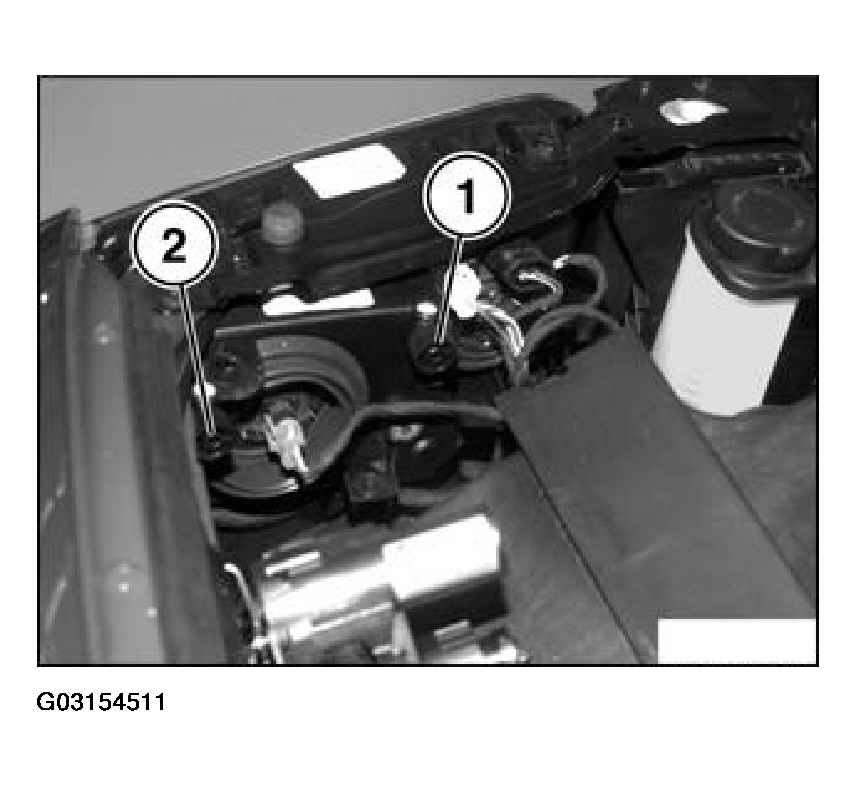

Adjust headlights by turning adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- Adjusting screw for vertical aiming
- Adjusting screw for lateral aiming
