63 31 080 Removing and installing/replacing luggage compartment light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

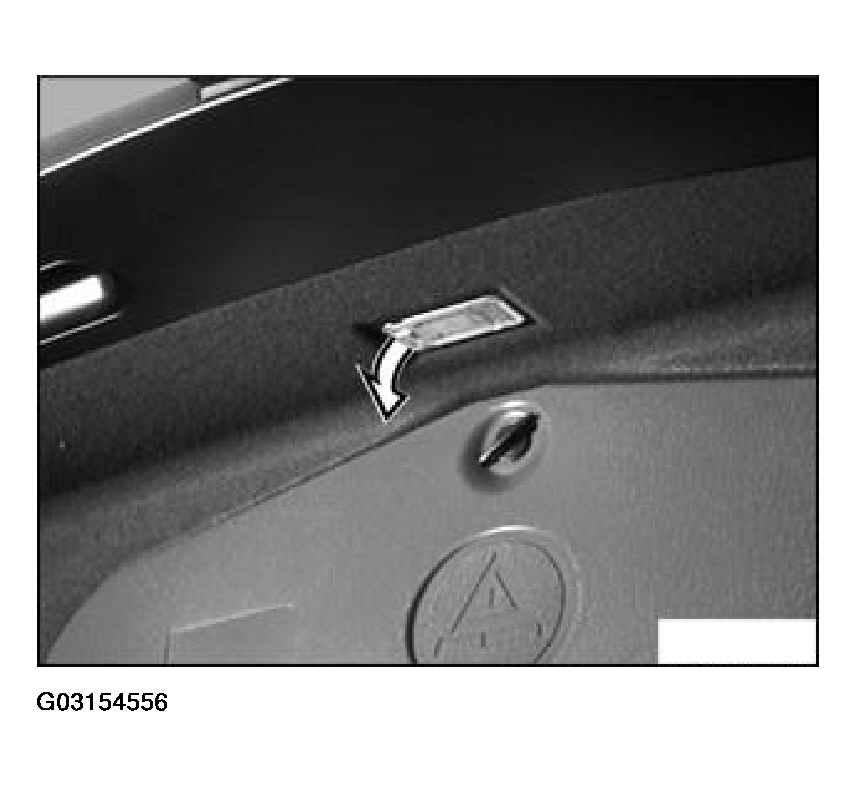

Unclip side of light

Fig 1: Uncliping Side Of Light
G03154556Courtesy of BMW OF NORTH AMERICA, INC.

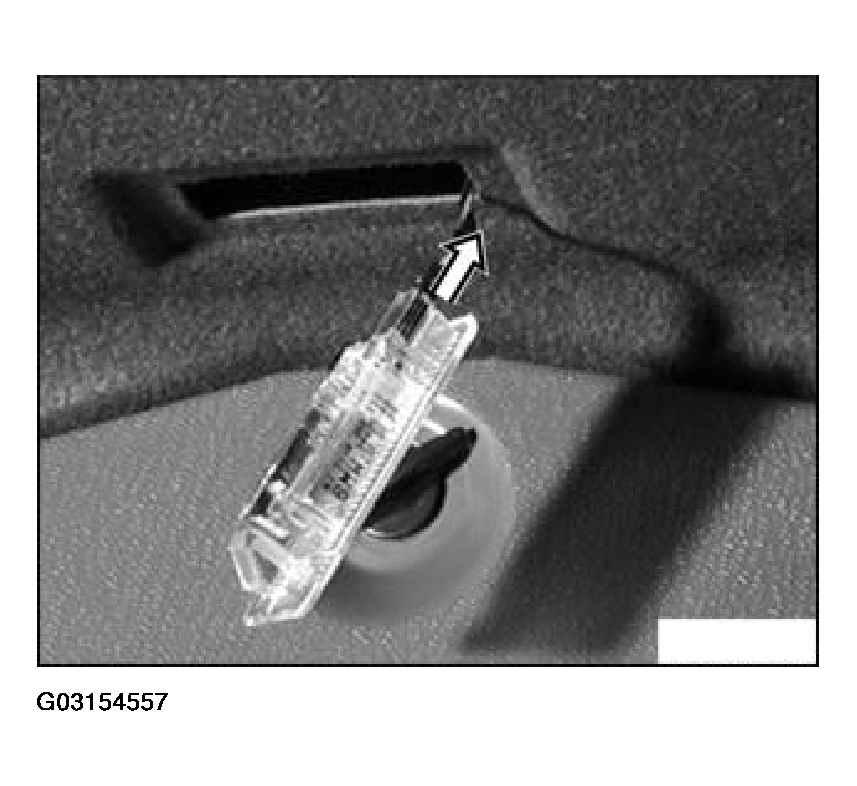

Pull off connectors.

Fig 2: Pulling Off Connectors
G03154557Courtesy of BMW OF NORTH AMERICA, INC.
