63 31 050 Removing and installing/replacing mirror light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Lever front mirror light (1) in direction of arrow.

Disconnect plug connection underneath and remove mirror plate light (1).

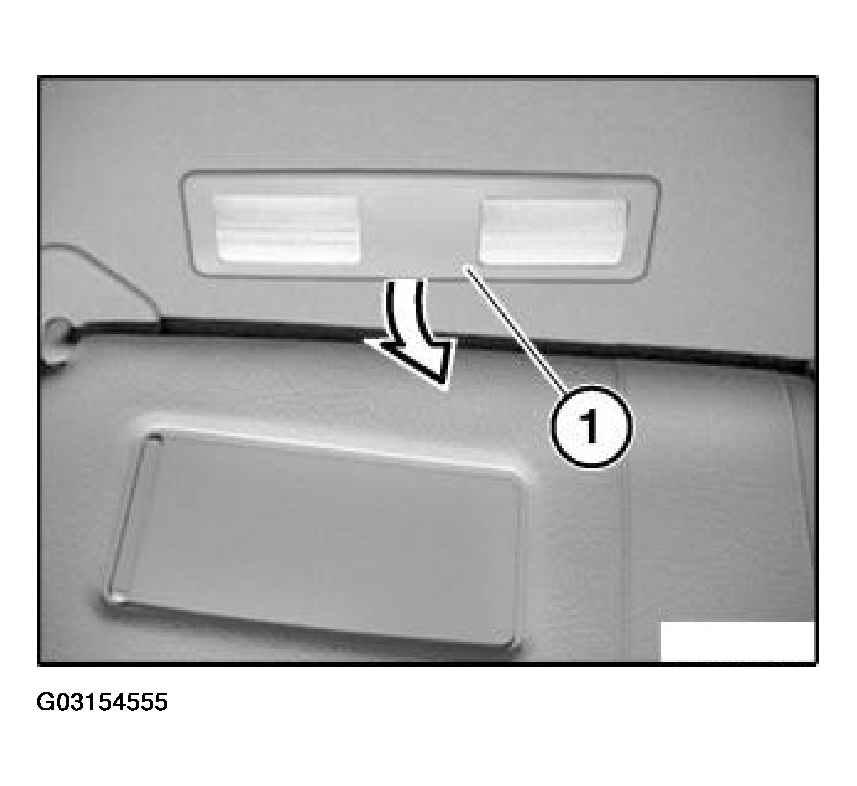

Fig 1: Levering Front Mirror Light And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

If necessary, convert or replace bulbs.
