63 31 020 Removing and installing/replacing footwell light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

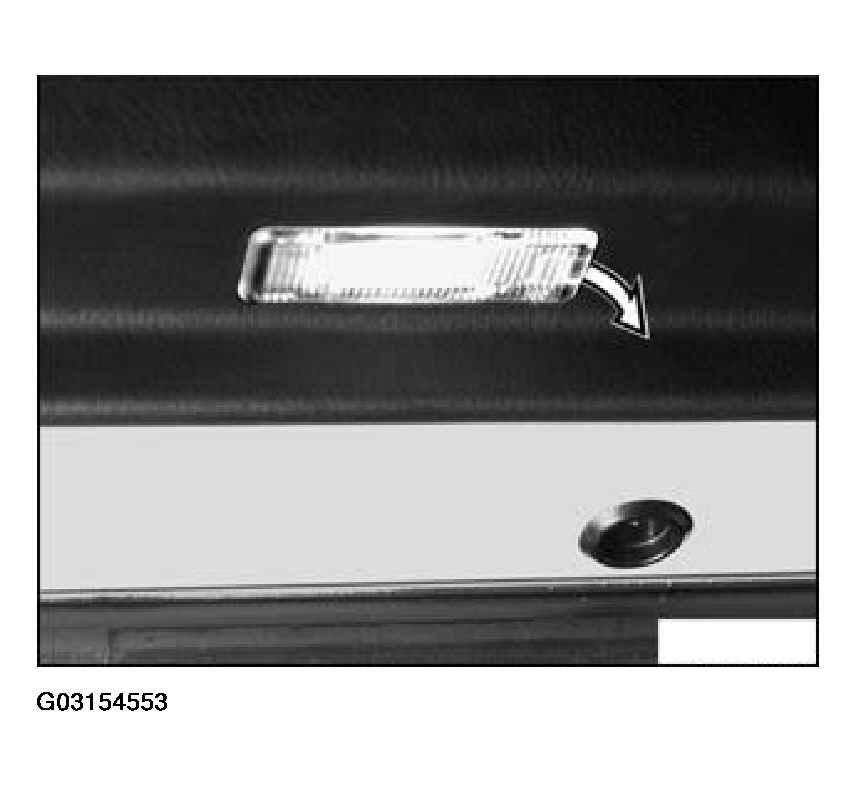

Pry out footwell light from side

Fig 1: Identifying Light
G03154553Courtesy of BMW OF NORTH AMERICA, INC.

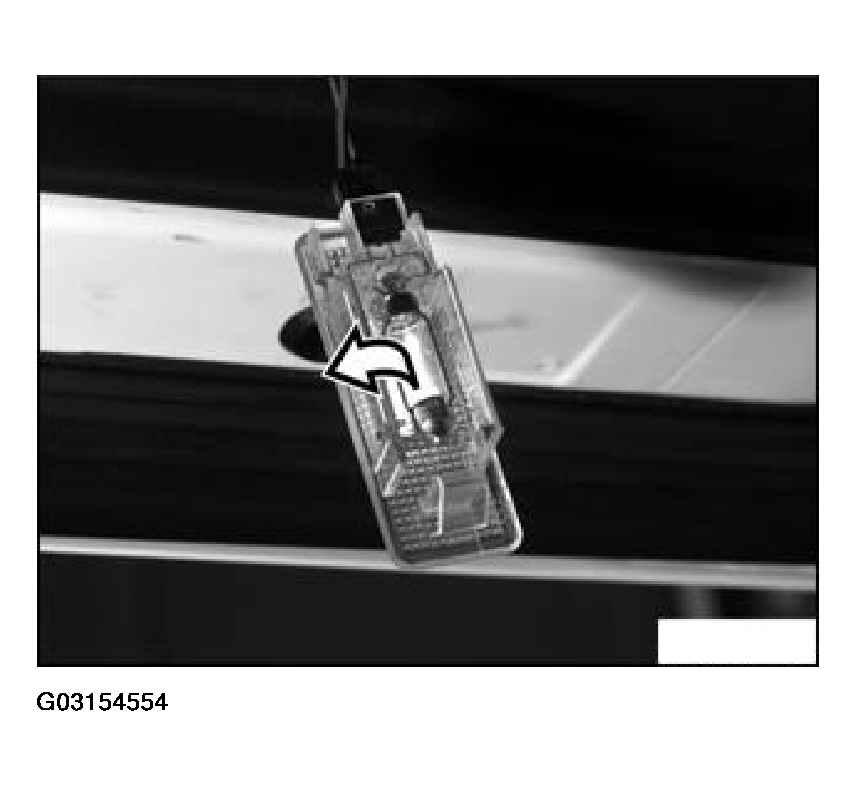

Pull out connector and remove light.

Fig 2: Pulling Out Connector And Removing Light
G03154554Courtesy of BMW OF NORTH AMERICA, INC.
