63 31 015 Removing and installing/replacing left or right interior light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/sedan:

Lever out interior light (1) in direction of arrow.

Disconnect plug connection underneath and remove interior light (1).

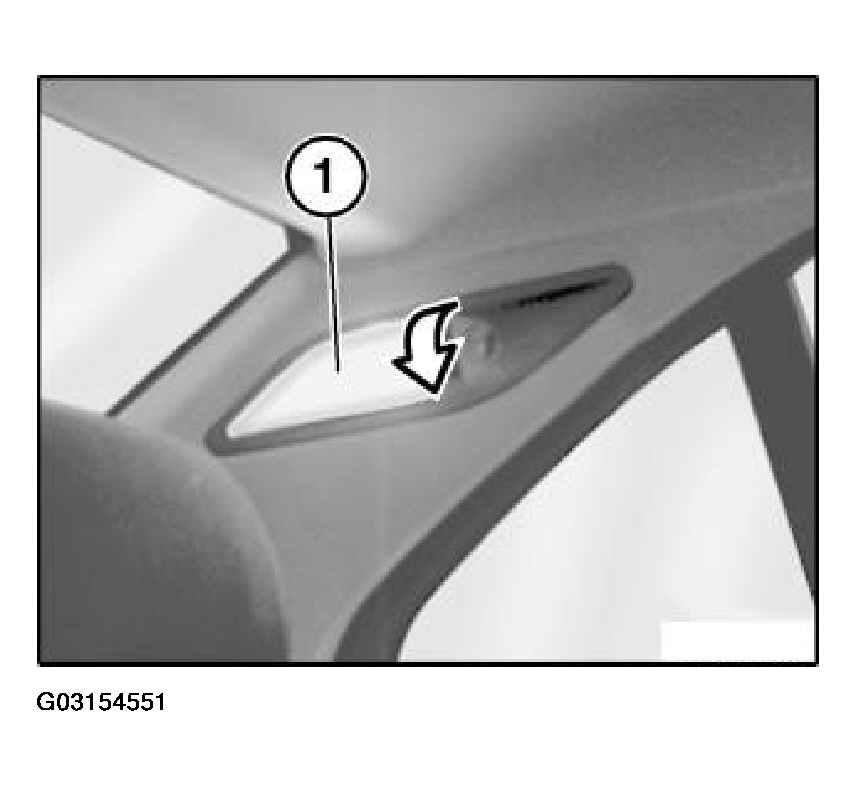

Fig 1: Levering Out Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.

touring:

Lever out interior light (1) in direction of arrow.

Disconnect plug connection underneath and remove interior light (1).

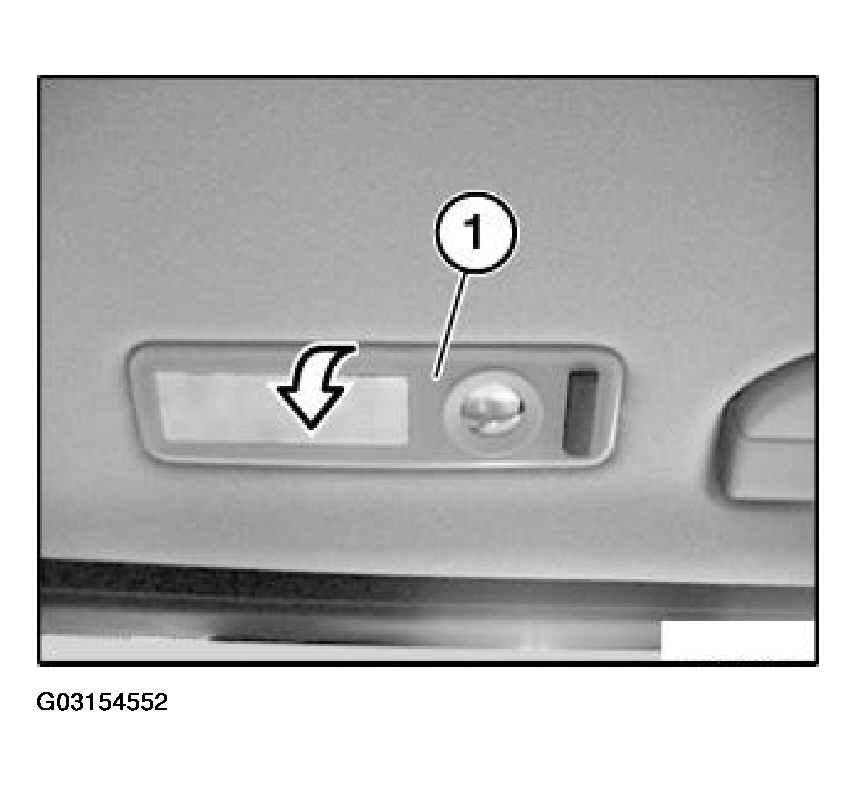

Fig 2: Levering Out Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.
