63 12 411 Replacing headlamp housing with insert on left (up to 09/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lens/reflector.

WARNING: Follow instructions for light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Remove bulb holder with side-marker lamp bulb.

Detach high beam cover cap (1) and low beam cover (2) in direction of arrow and remove bulbs underneath.

Installation:

Make sure high beam cover cap (1) and low beam cover (2) are correctly seated.

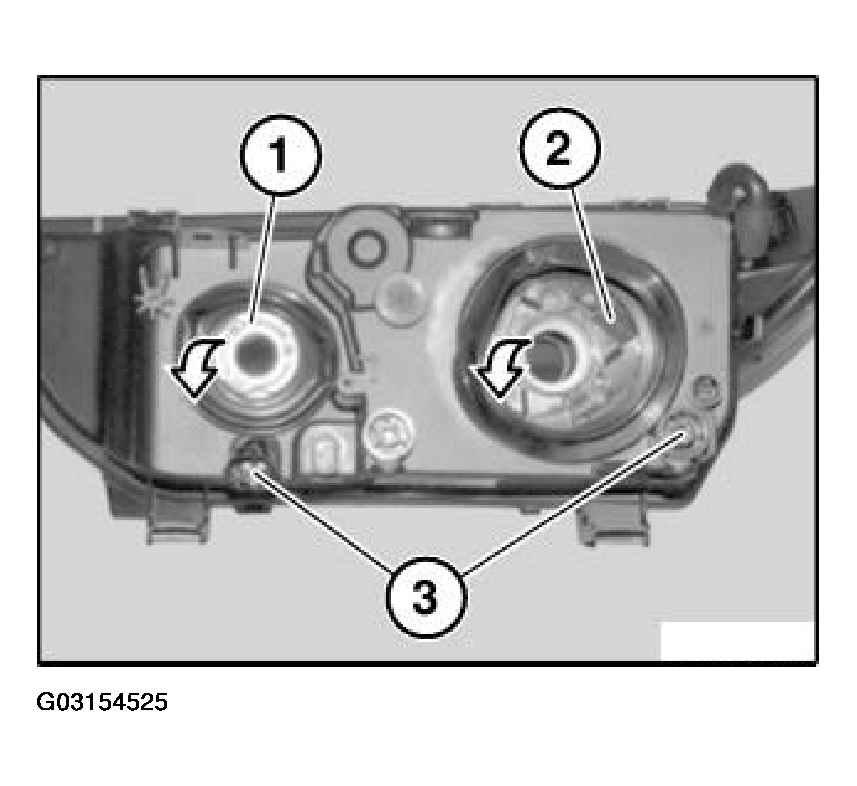

Fig 1: Detaching High Beam Cover Cap And Low Beam Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust headlamp.
