63 12 355 Replacing adjusting elements for left xenon headlight (up to 09/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove insert from headlight housing.

Unclip adjusting elements (1) and (2) in direction of arrow.

If necessary, unclip mounting (3) in direction of arrow.

Installation:

Adjust headlights.

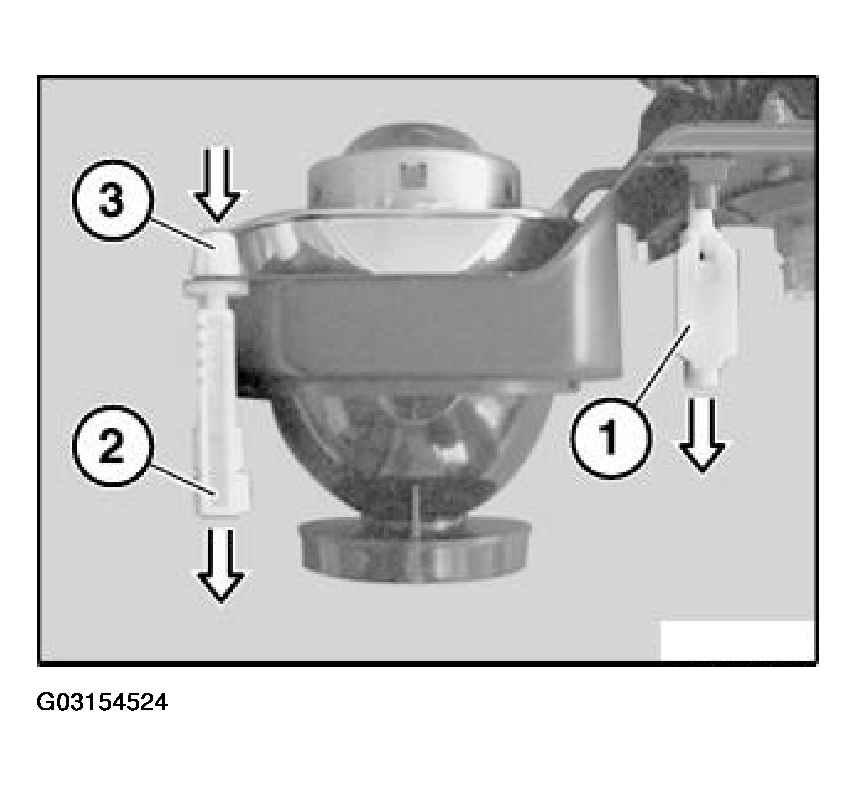

Fig 1: Uncliping Adjusting Elements

Courtesy of BMW OF NORTH AMERICA, INC.
