63 17 030 Removing and installing/replacing left or right fog lamp insert (M aerodynamics package)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Lever out trim (1) with special tool 00 9 322 and remove.

Installation:

Make sure trim (1) engages correctly.

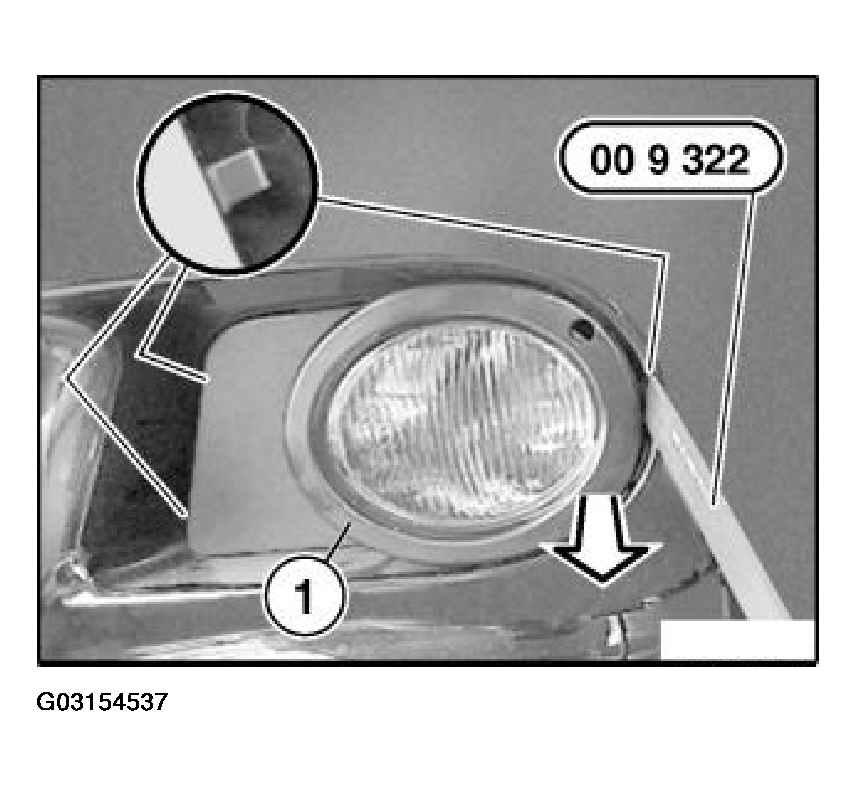

Fig 1: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Feed out fog lamp insert (2) and remove.

Disconnect plug connection behind.

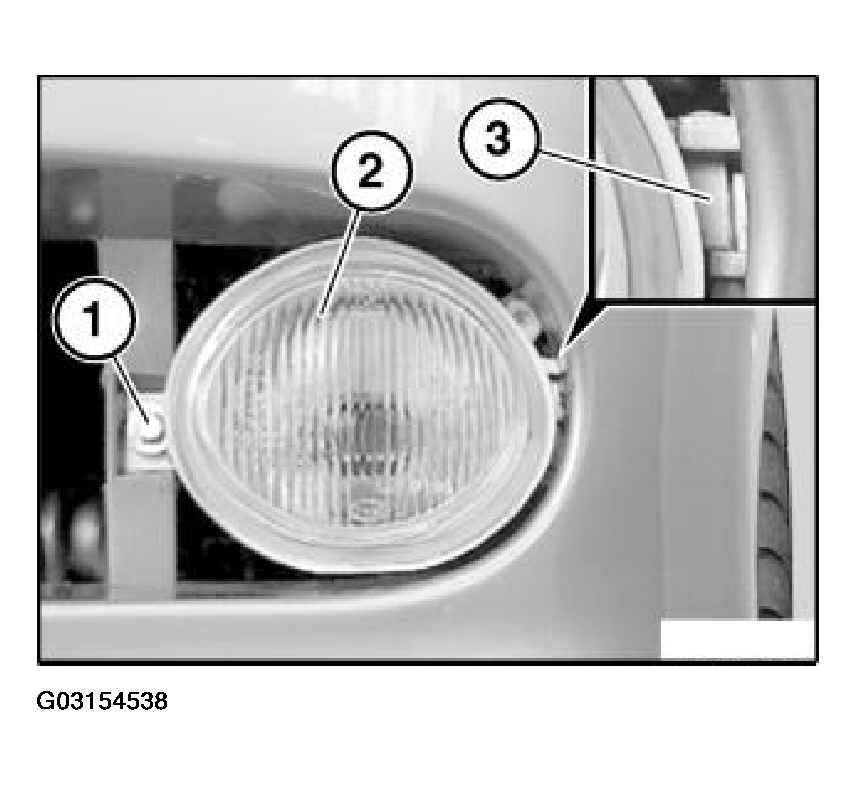

Fig 2: Feeding Out Fog Lamp and Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure lugs (3) are precisely seated.

Make sure ventilation grommet of fog lamp insert is laid without kinks and sufficiently firmly seated.

If necessary, adjust fog lamp.
