61 61 270 Removing and installing complete wiper console: Installation:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

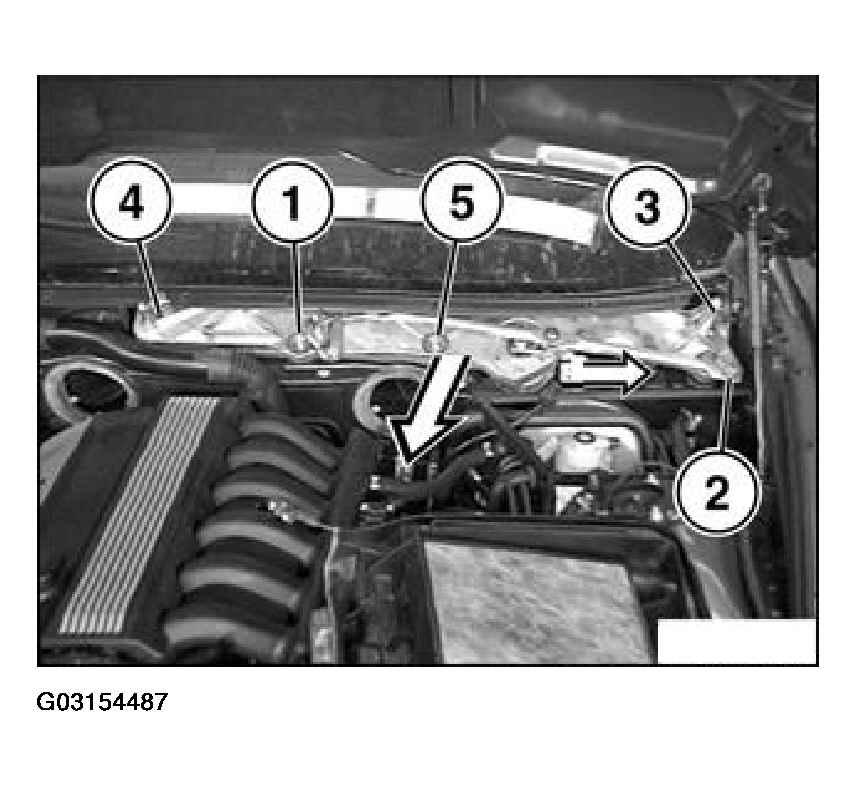

Insert wiper unit in body and tighten down by hand without torsional stress. Tighten down screws in illustrated sequence.
Comply with Tightening torque, refer to 61 61 6AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .
