61 61 010 Checking/adjusting approach angle of windshield wiper arms on front windshield

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

At low vehicle speed and during intermittent operation, a precisely adjusted contact angle for the windshield wiper arms will increase wiping quality.

Place special tool 00 9 230 on windshield next to turning point of wiper blade.

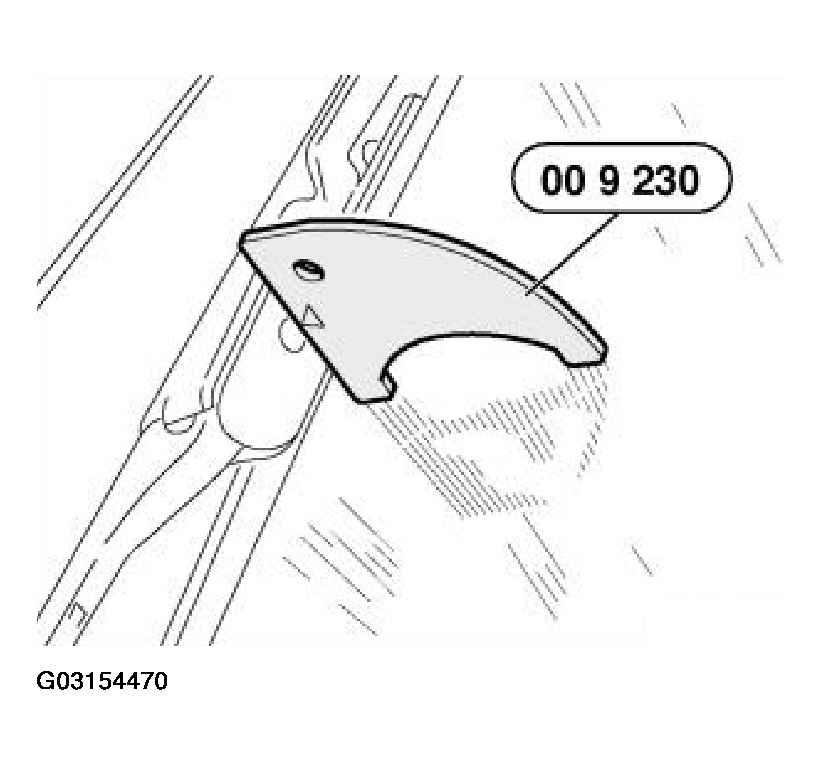

Fig 1: Placing Special Tool 00 9 230 On Windshield Next To Turning Point Of Wiper Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side:

If the contact angle is faulty, grip windshield wiper arm with special tool 00 9 261 at joint and turn with special tool 00 9 262 into correct position.

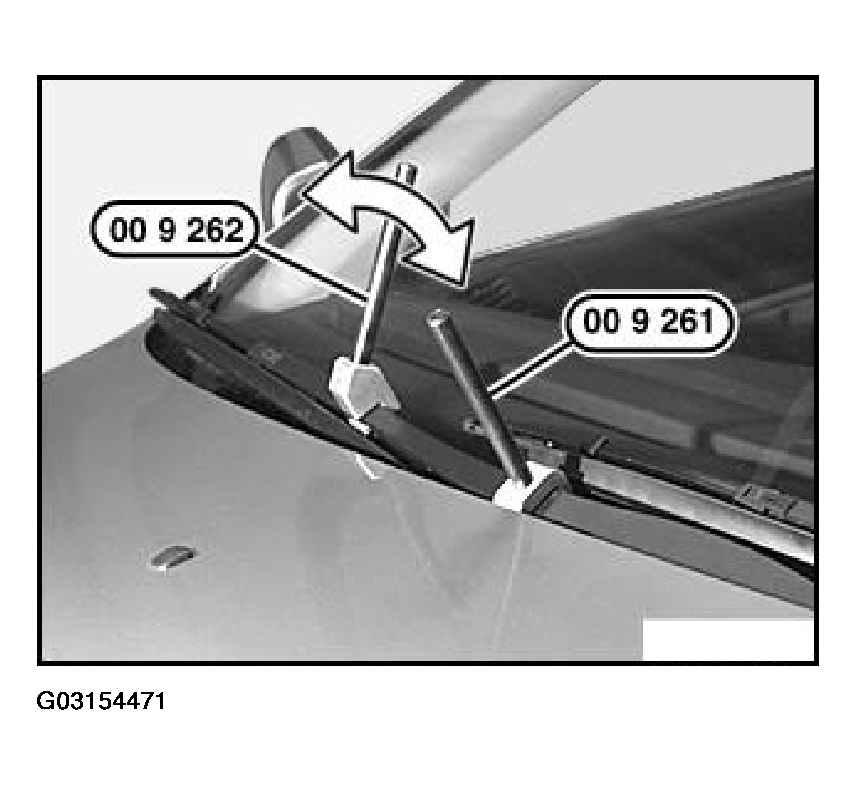

Fig 2: Adjusting Approach Angle Of Windshield Wiper Arms On Front Windshield (Passenger Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's side:

The contact angle of the wiper arm is adjusted by moving the wiper arm on the dial (1).

To remove dial: use special tool 61 6 000 or 61 0 060.

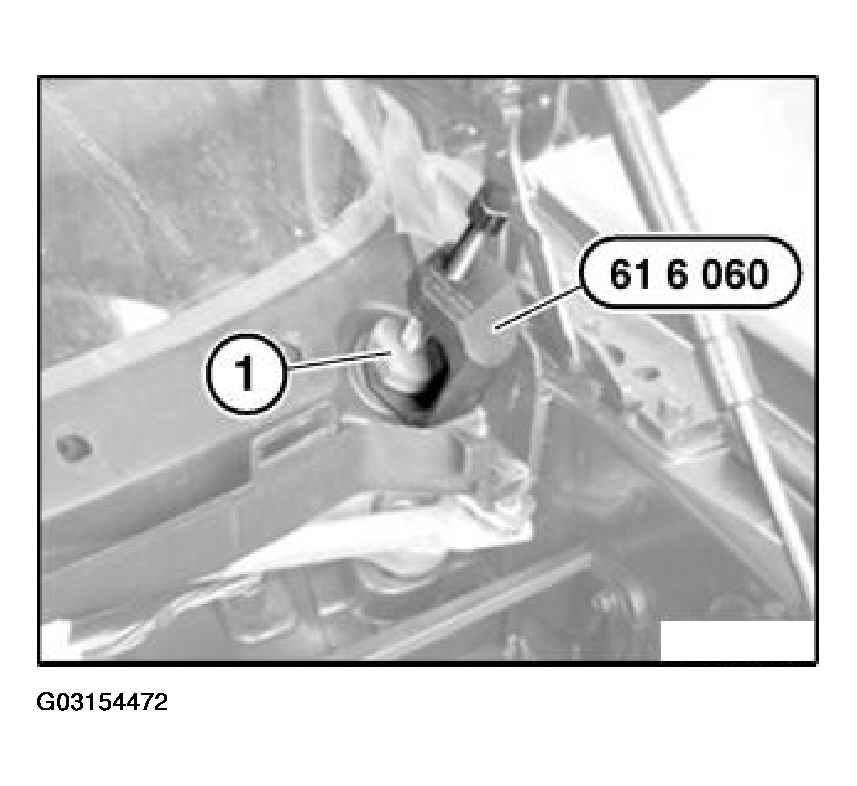

Fig 3: Adjusting Approach Angle Of Windshield Wiper Arms On Front Windshield (Driver Side)

Courtesy of BMW OF NORTH AMERICA, INC.
