Twin nozzle system
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Mark the contact points with crepe tape or felt pen and operate the washer unit. The spray jets should strike the center of this field.
Adjustment values in mm

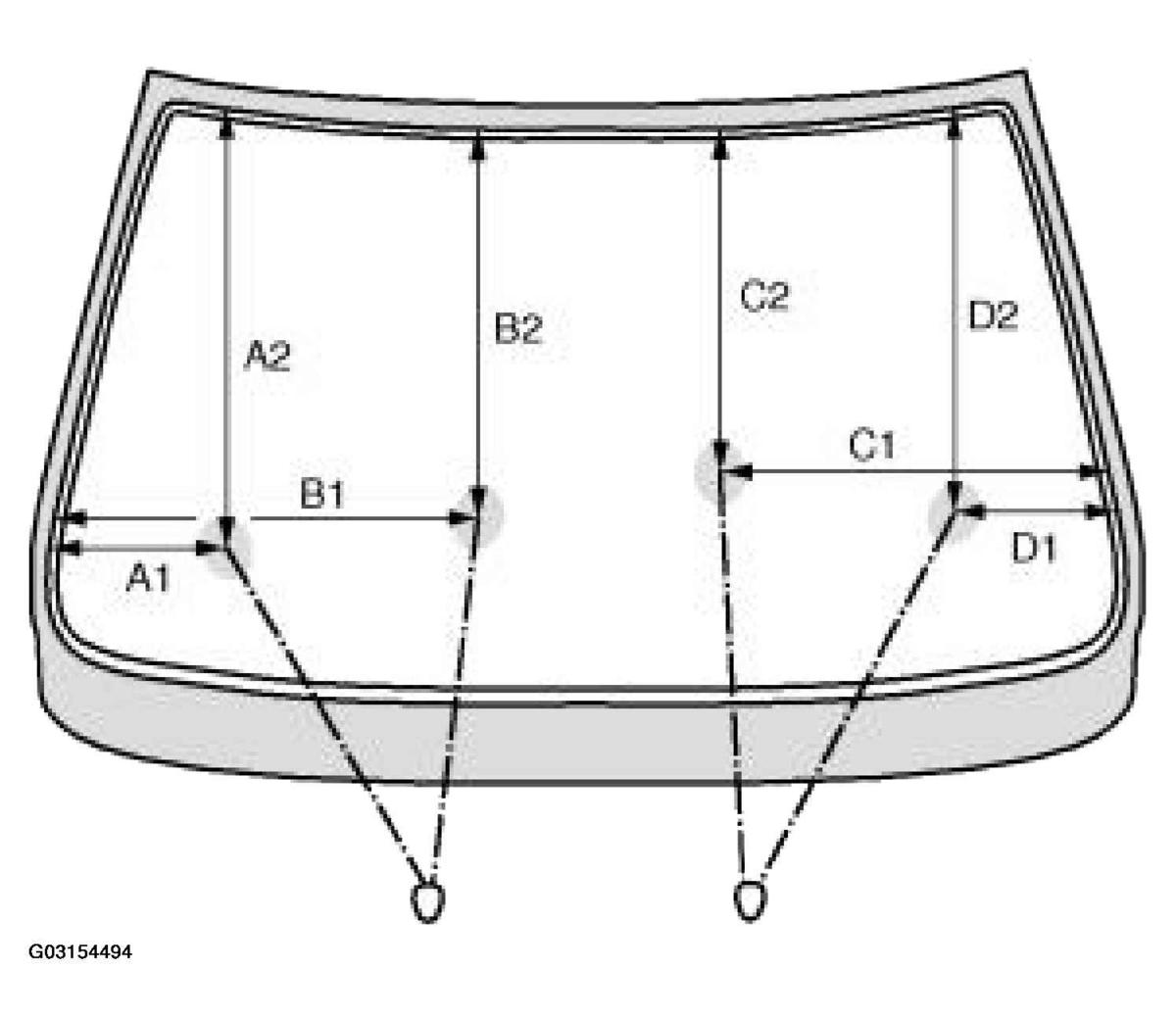

WINDSHIELD WASHER SPRAY NOZZLES ADJUSTING DIMENSIONS
| A1 226 | C1 490 |
| = | = |
| A2 540 | C2 450 |
| = | = |
| B1 530 | D1 210 |
| = | = |
| B2 506 | D2 505 |
| = | = |
Mark points of contact with adhesive tape.

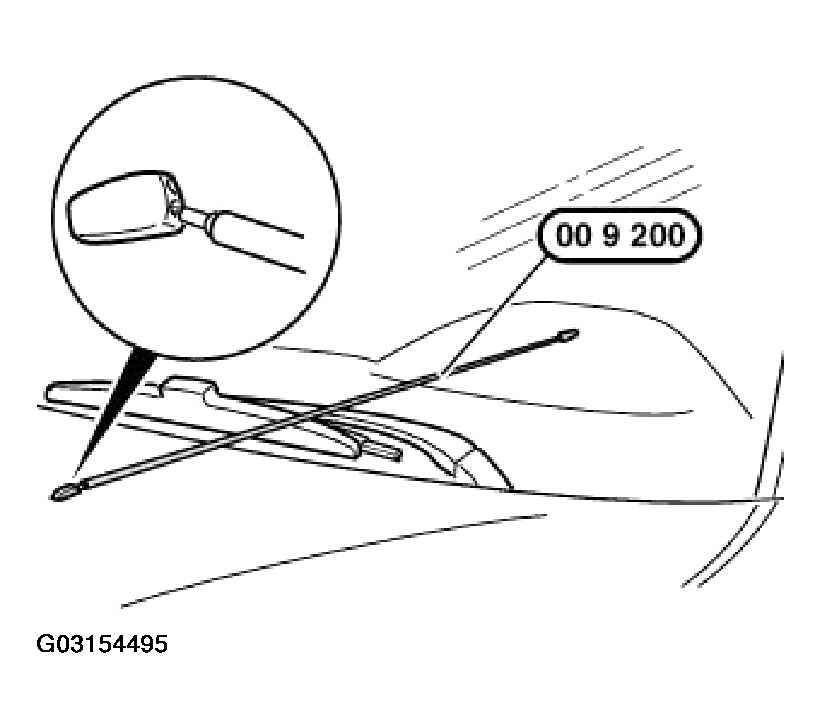

Adjust spray nozzles using special tool 00 9 200.
