61 13 .. Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

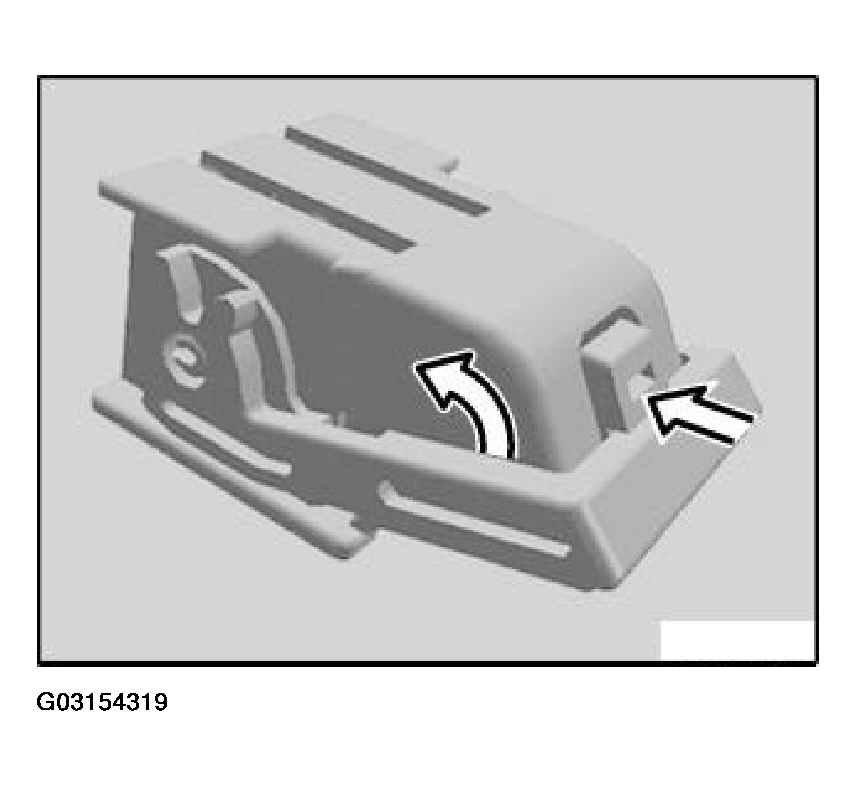

Press lock and open clip in direction of arrow. Disconnect plug connection.

Fig 1: Disconnecting Plug Connection (1 Of 9)

G03154319

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow. Disconnect plug connection.

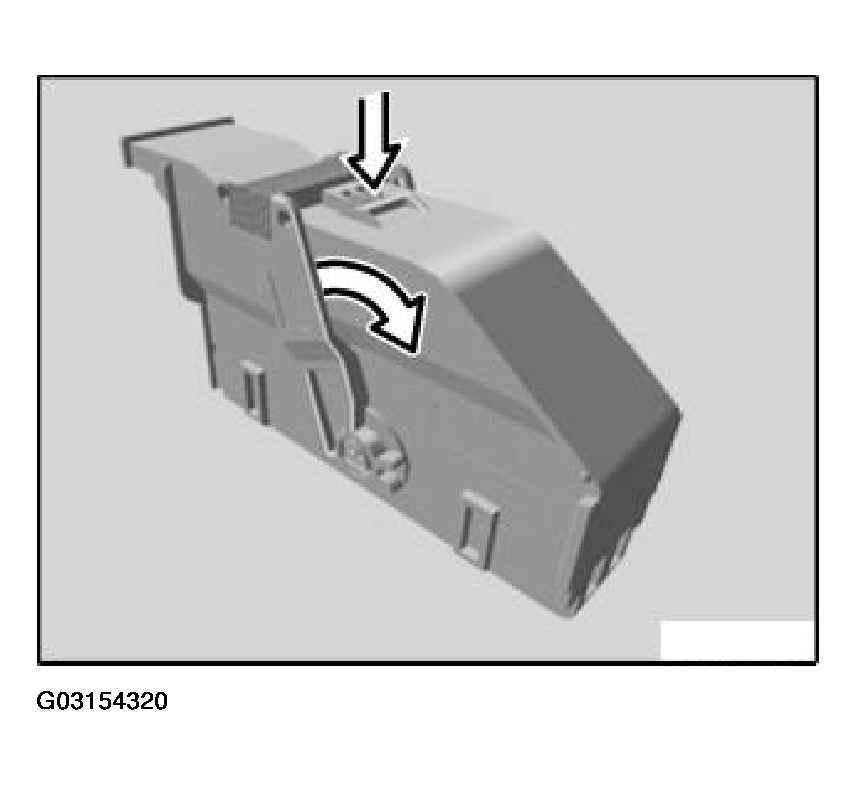

Fig 2: Disconnecting Plug Connection (2 Of 9)

G03154320

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

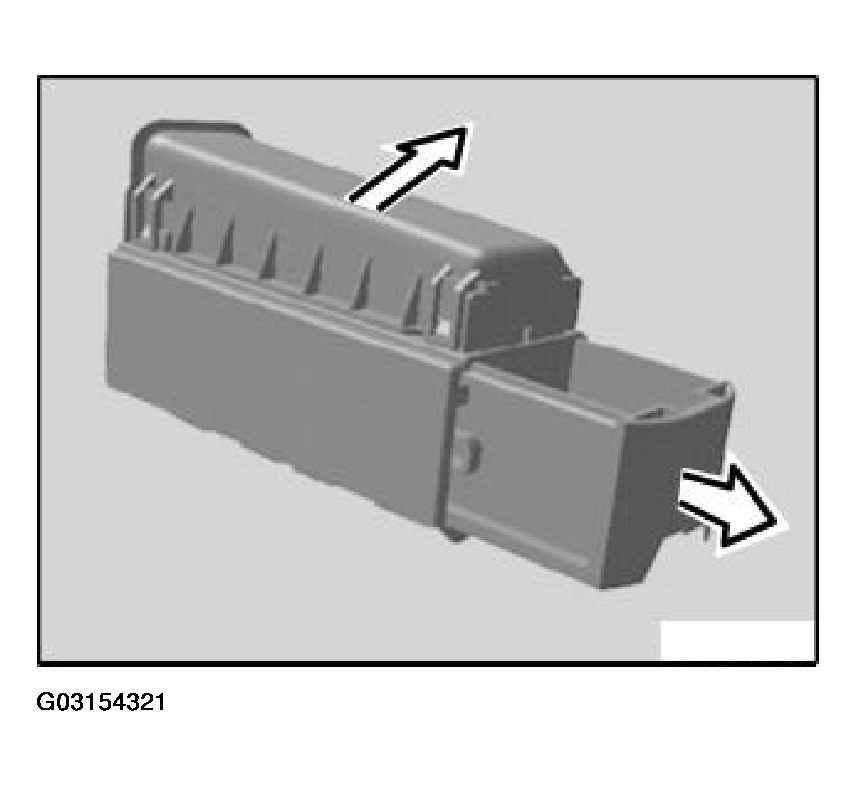

Fig 3: Disconnecting Plug Connection (3 Of 9)

G03154321

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

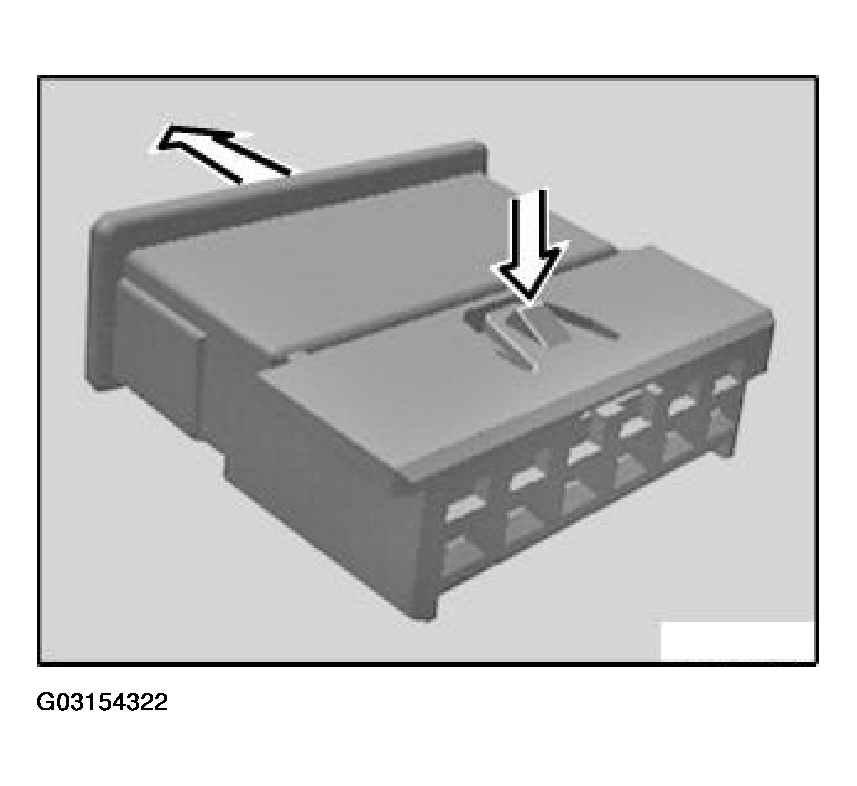

Fig 4: Disconnecting Plug Connection (4 Of 9)

G03154322

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

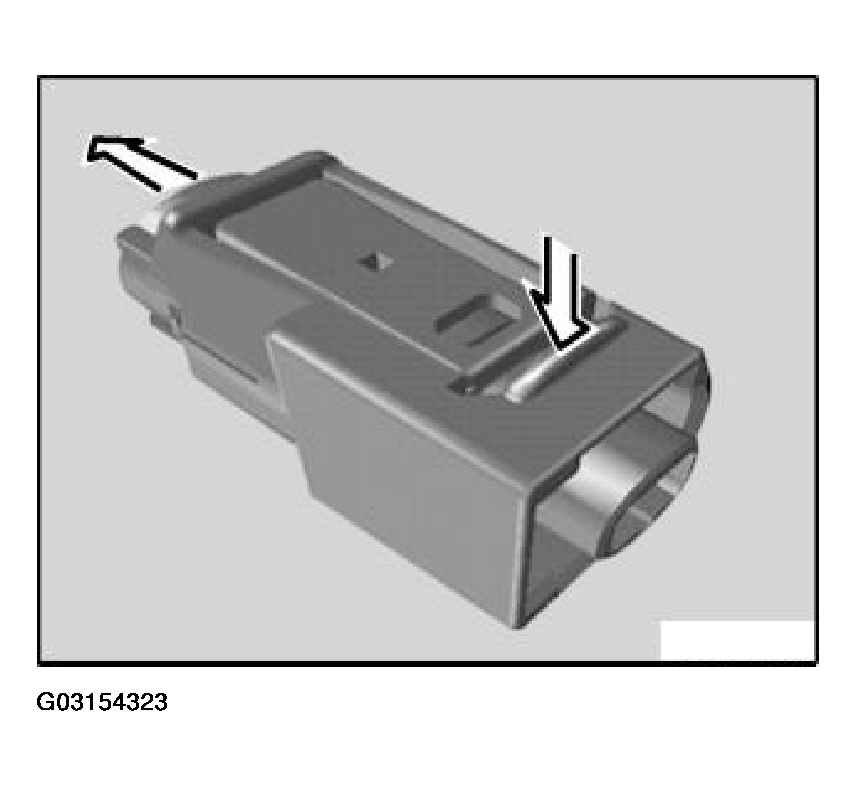

Fig 5: Disconnecting Plug Connection (5 Of 9)

G03154323

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

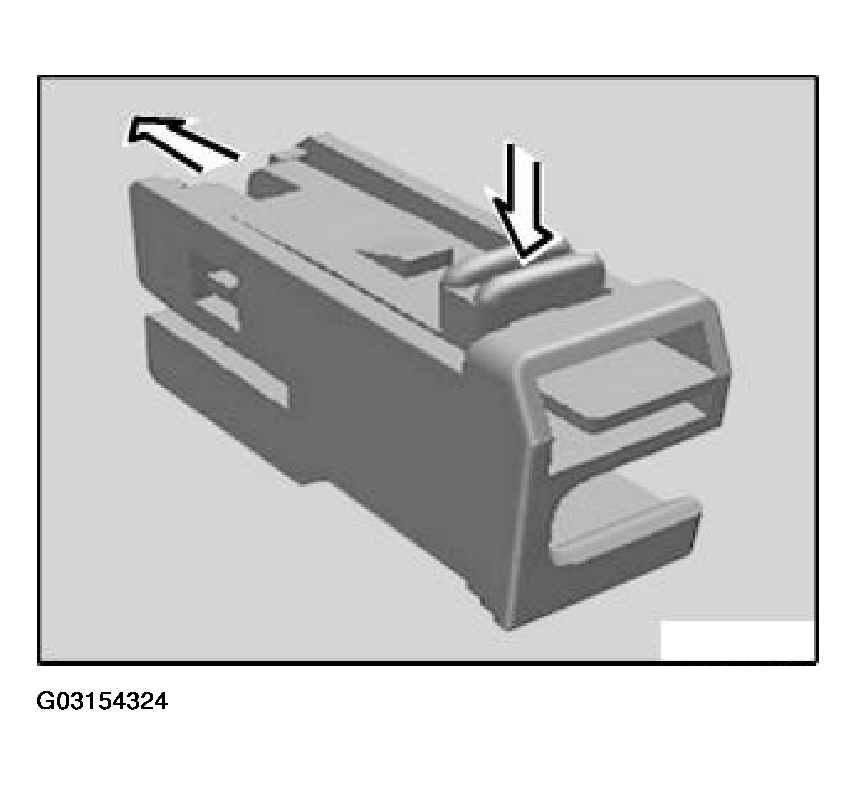

Fig 6: Disconnecting Plug Connection (6 Of 9)

G03154324

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

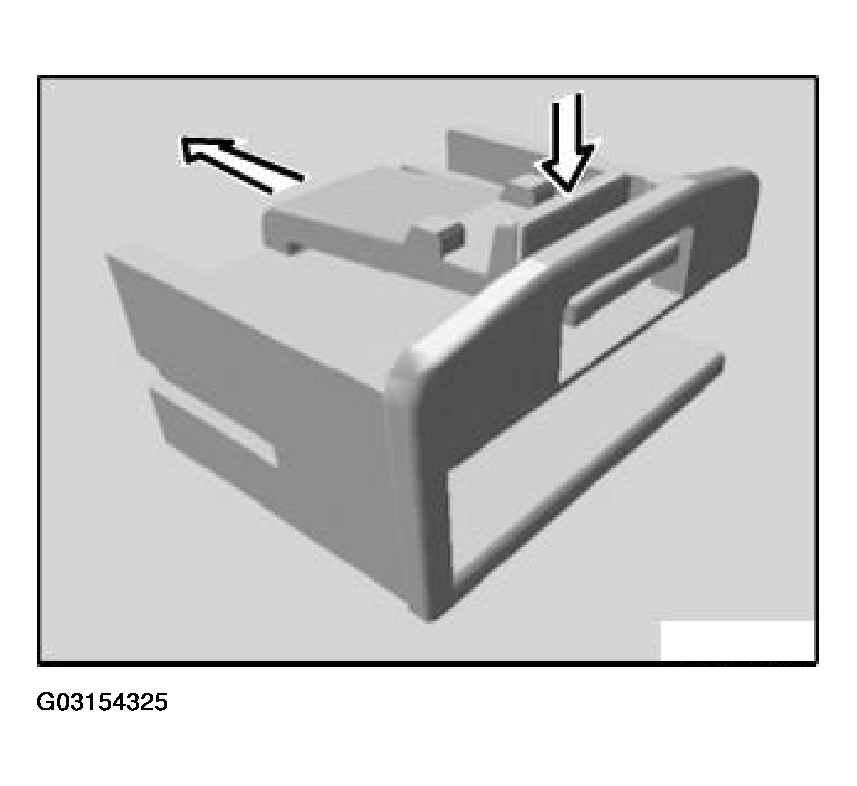

Fig 7: Disconnecting Plug Connection (7 Of 9)

G03154325

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

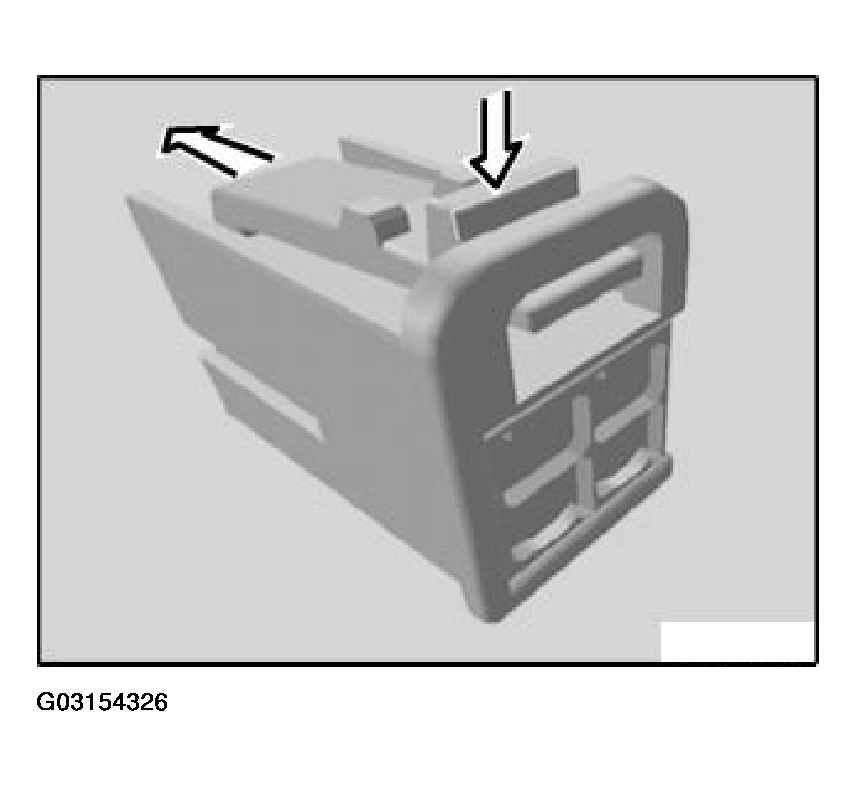

Fig 8: Disconnecting Plug Connection (8 Of 9)

G03154326

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

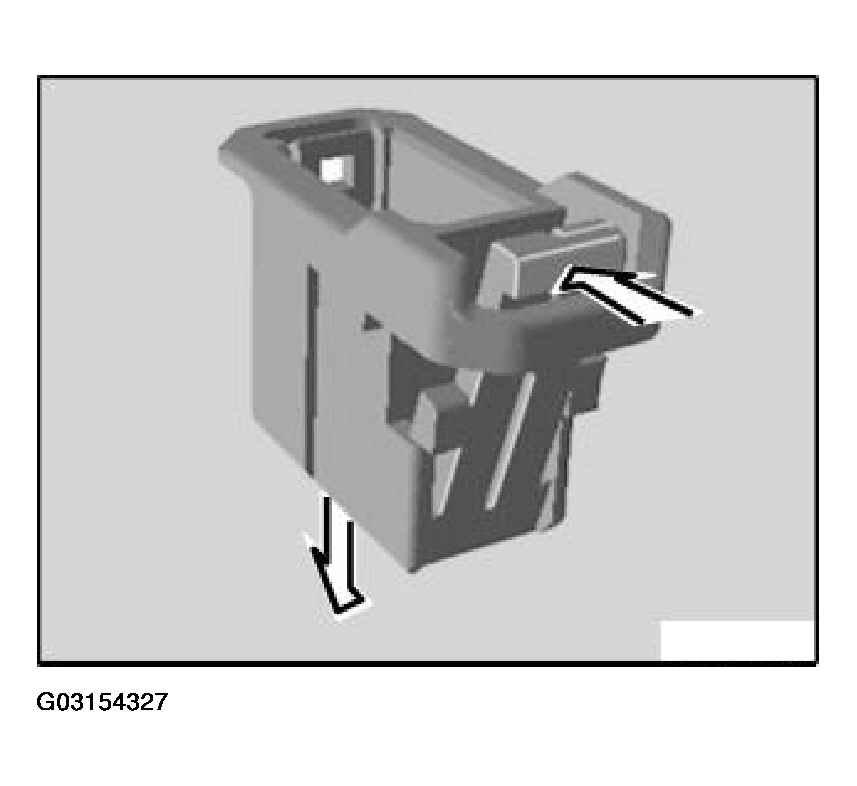

Fig 9: Disconnecting Plug Connection (9 Of 9)

G03154327

Courtesy of BMW OF NORTH AMERICA, INC.
