61 31 310 Replacing brake light switch: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly. See PEDALS - REPAIR INSTRUCTIONS .

E38 up to 09/98:

Disconnect plug connection.

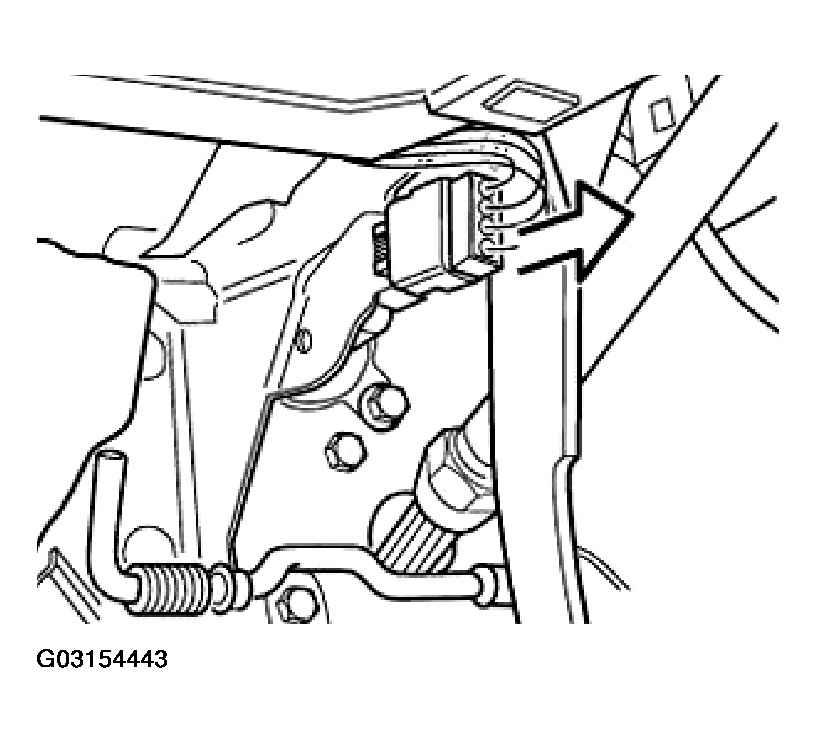

Fig 1: Disconnecting Plug Connection (E38 Up To 09/98)

Courtesy of BMW OF NORTH AMERICA, INC.

Depress brake pedal as far as possible, using pedal support if necessary.

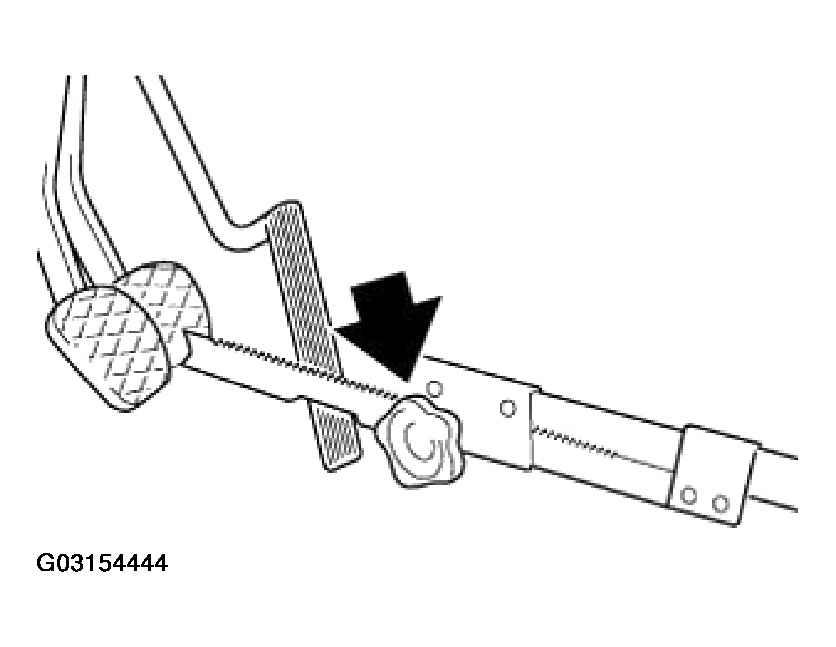

Fig 2: Depressing Brake Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

Pull tappet and sleeve forward completely.
Press together clips and pull back switch.
