61 31 226 Replacing switch on sports steering wheel on left or right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove airbag unit. See DRIVER-SIDE AIR BAG MODULE .

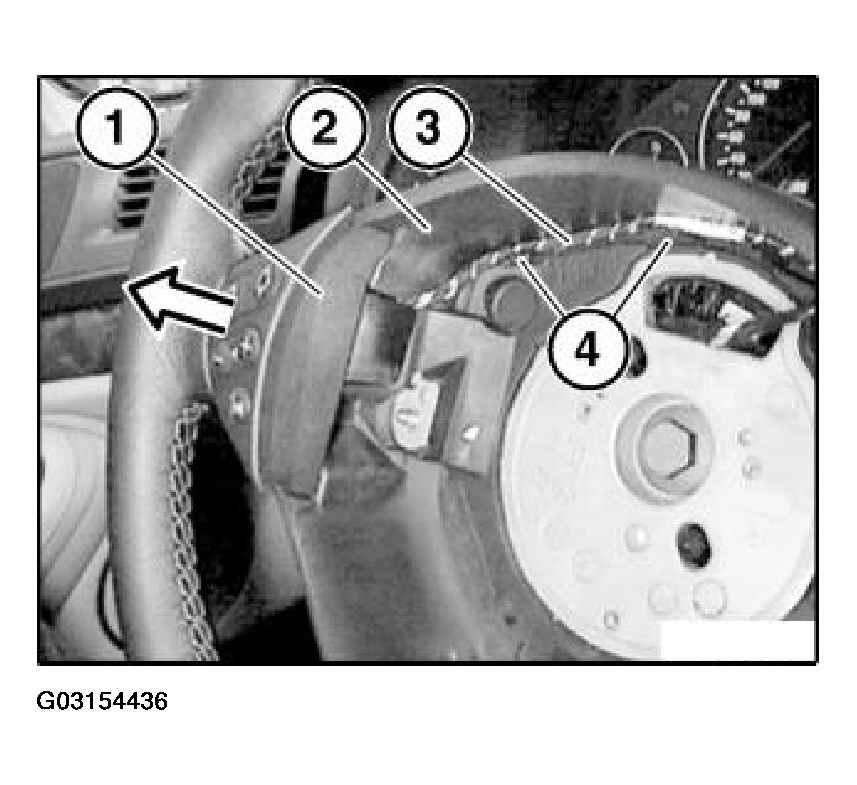

Unclip switch on sports steering wheel (1) in direction of arrow from sports steering wheel (2).
Disconnect plug connections underneath.
Installation:
Check that wiring harness (3) is correctly routed in guides (4).
