61 31 224 Replacing switch on impact cushion for left or right airbag
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove airbag unit from steering wheel. See DRIVER-SIDE AIR BAG MODULE .

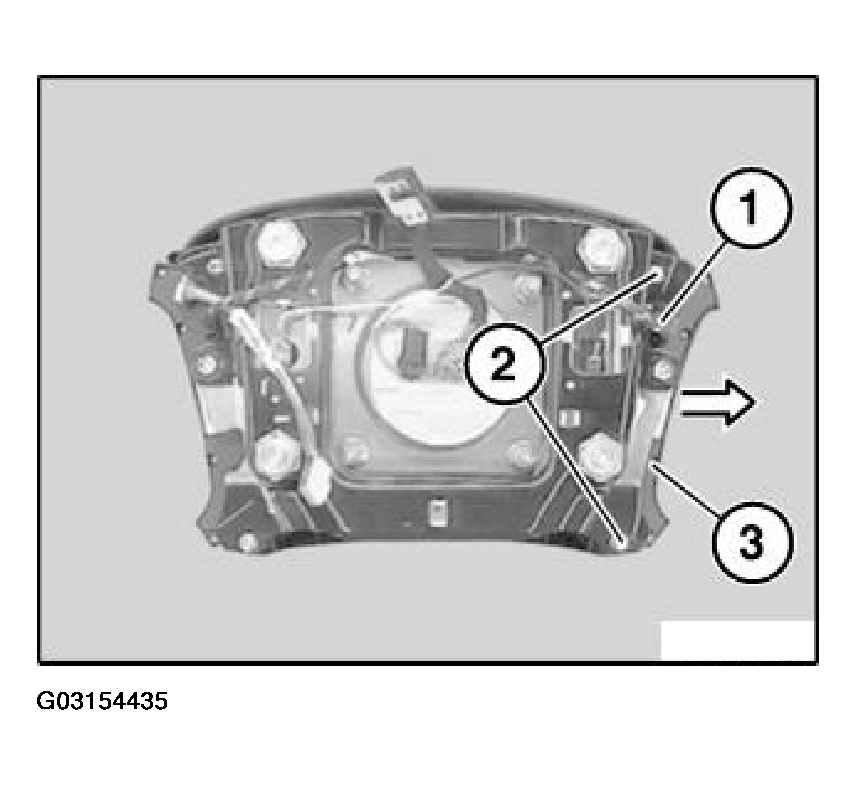

Illustration shows removal of switch on impact cushion for airbag on left
Disconnect plug connection (1).
Loosen screws (2).
Remove switch on impact cushion for airbag (3) in direction of arrow.
