61 31 214 Removing and installing / replacing switch for electronic damper control

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Insert two feeler gauges (approx. 0.25) into side of switch, press together the clips, then pull switch forward.

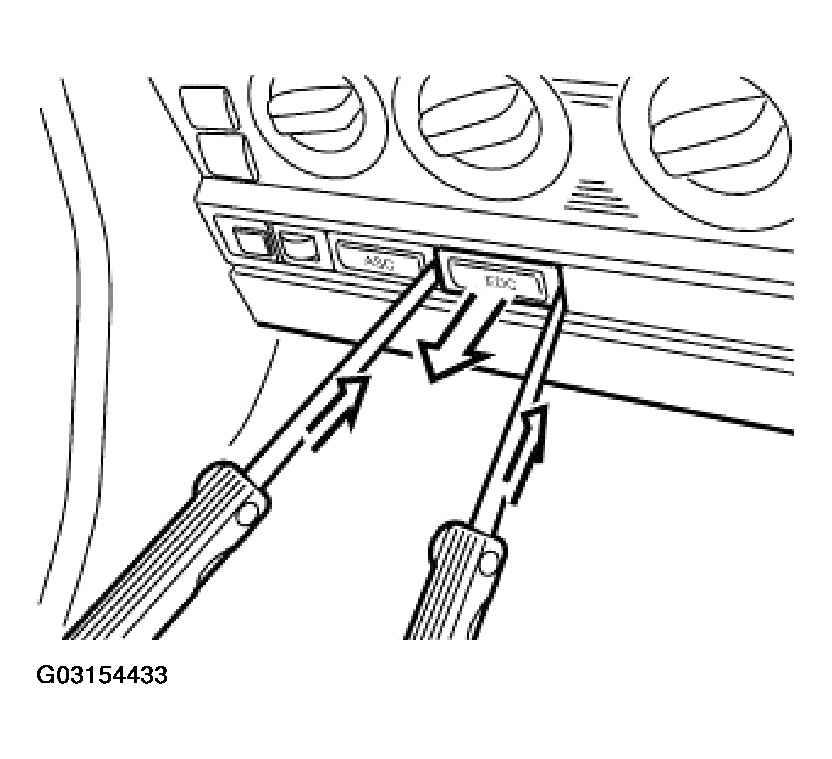

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Press together clips and remove connector.

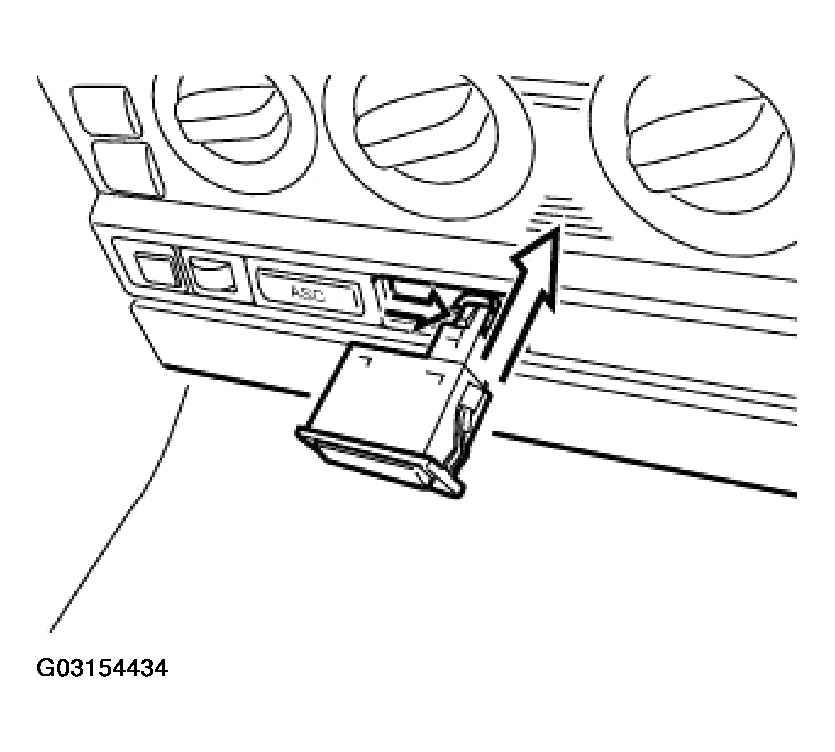

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.
